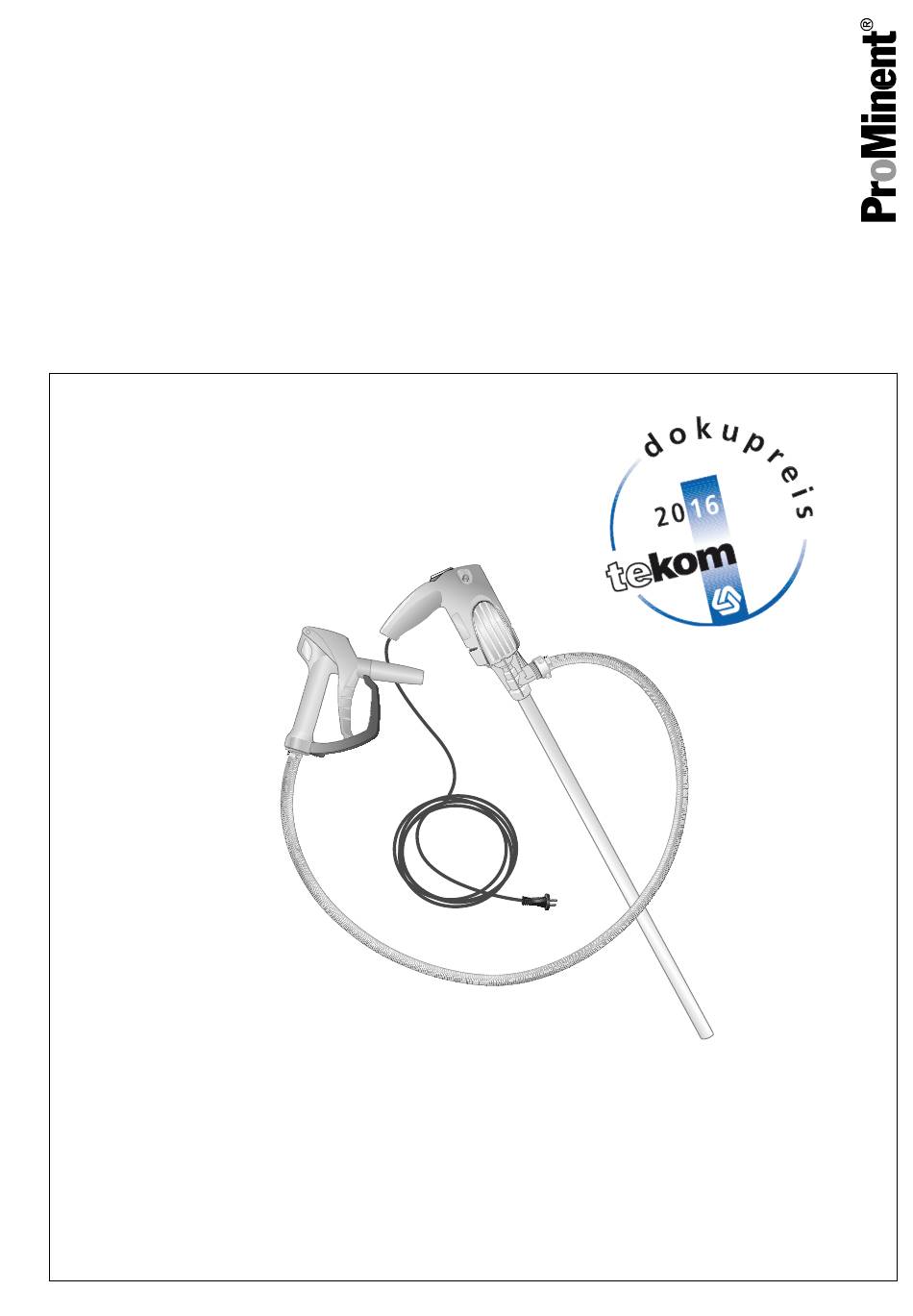

Assembly and operating instructions
Barrel Pump
DULCO
Trans 25/700 PVDF
®
EN
A2266
Please carefully read these operating instructions before use. · Do not discard.
BARRELPUMP.IR
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
983643
Original Operating Instructions (2006/42/EG) / Target group: commercial use
BA DTR 003 11/16 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DULCO Trans 25/700 PVDF and is the answer not in the manual?

Questions and answers

mofizuddin
June 19, 2025

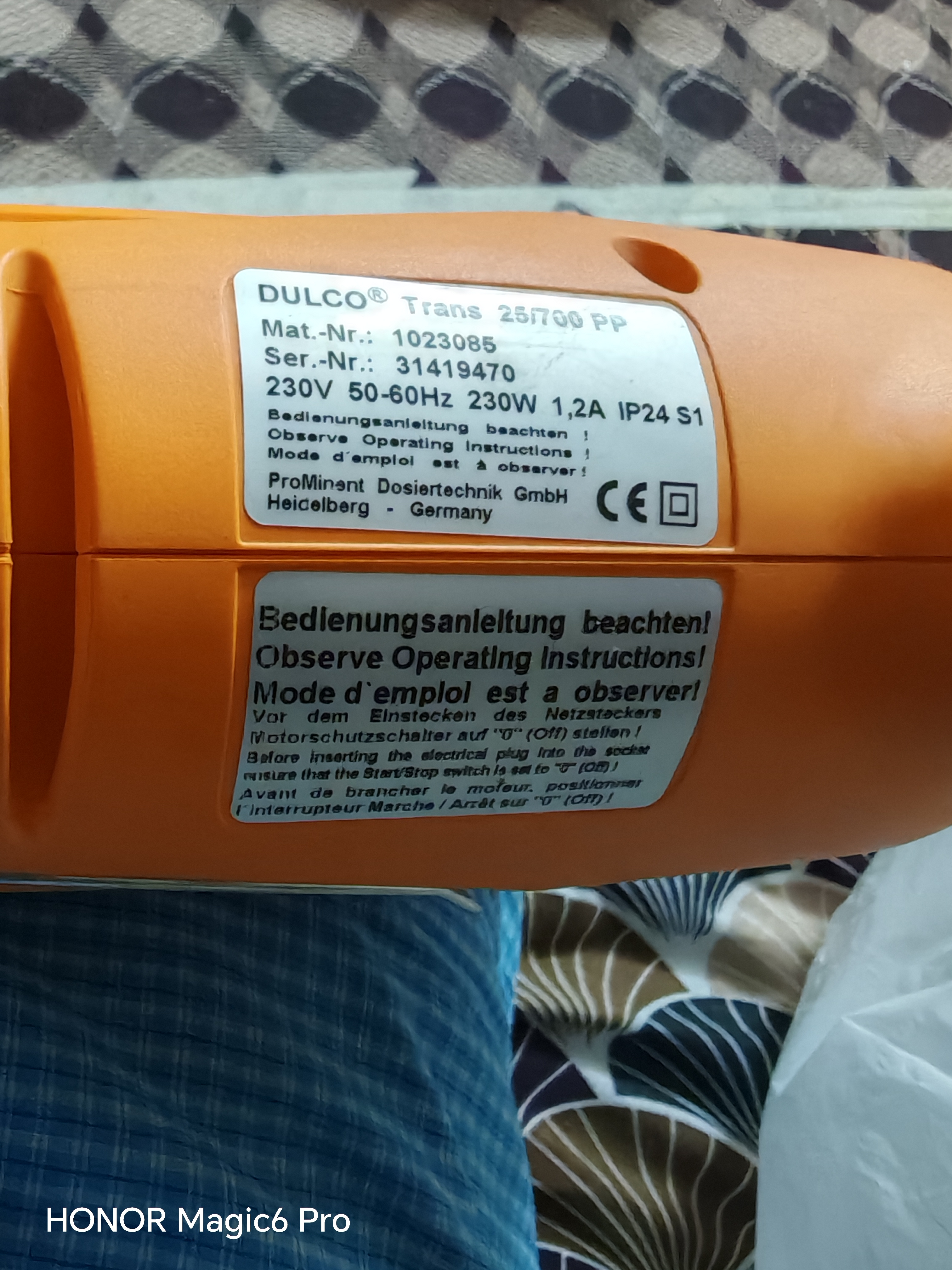

Dulco trane 25/700 pp .. can use sulphuric acid and custic soda ?

User image 68542e44a14bb
0

Subscribe to Our Youtube Channel

Related Manuals for ProMinent DULCO Trans 25/700 PVDF

Summary of Contents for ProMinent DULCO Trans 25/700 PVDF

  • Page 1 Assembly and operating instructions Barrel Pump DULCO Trans 25/700 PVDF ® A2266 Please carefully read these operating instructions before use. · Do not discard. BARRELPUMP.IR The operator shall be liable for any damage caused by installation or operating errors. The latest version of the operating instructions are available on our homepage. 983643 Original Operating Instructions (2006/42/EG) / Target group: commercial use BA DTR 003 11/16 EN...
  • Page 2 Supplemental directives General non-discriminatory approach In order to make it easier to read, this document uses the male form in grammatical structures but with an implied neutral sense. It is aimed equally at both men and women. We kindly ask female readers for their understanding in this simplification of the text.

  • Page 3: Table Of Contents

    Table of contents Table of contents Function, Resistance and Scope of Delivery......4 Safety Chapter..............6 2.1 Labelling of Warning Information........6 2.2 Users' qualifications............7 2.3 Intended Use..............8 2.4 Foreseeable Misuse............. 8 2.5 Safety................8 2.5.1 Safety Information for Pump and Motor..... 9 2.5.2 Safety Information for the Pump Nozzle....

  • Page 4: Function, Resistance And Scope Of Delivery

    PVDF Drive shaft Hastelloy ® Rotor ETFE Axial face seal ceramic oxide/PTFE/carbon O-rings Metering hose The resistance list, which is continually updated, can be found on the manufacturer’s homepage www.prominent.com Nameplate A2276 Fig. 1: Nameplate on the pump housing. BARRELPUMP.IR...

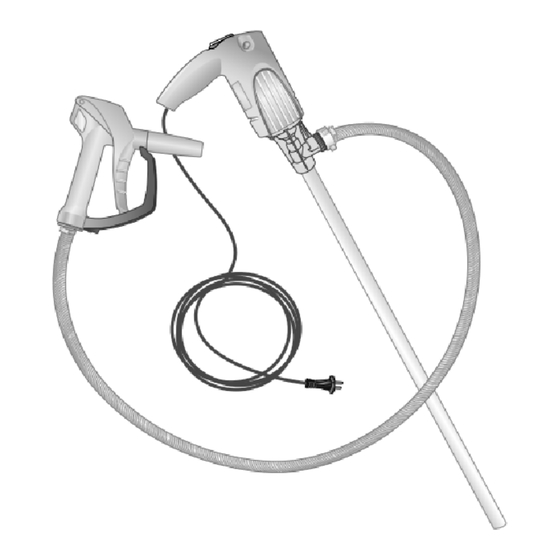

  • Page 5 Function, Resistance and Scope of Delivery Scope of delivery A2267 Fig. 2: Scope of delivery. Barrel pump DULCO Trans 25/700 PVDF. ® Packaging. PVC hose with hose connection. PVDF pump nozzle assembled on the PVC hose. Instructions for assembly and use. Overview of the key components A2271 Fig.

  • Page 6: Safety Chapter

    Safety Chapter Safety Chapter 2.1 Labelling of Warning Information Introduction These operating instructions provide information on the technical data and functions of the product. These operating instructions pro‐ vide detailed warning information and are provided as clear step- by-step instructions. The warning information and notes are categorised according to the following scheme.

  • Page 7: Users' Qualifications

    Electricians must comply with the provisions of the applicable statutory direc‐ tives on accident prevention. Customer Service depart‐ Customer Service department refers to service technicians, who have ment received proven training and have been authorised by ProMinent to work on the system. BARRELPUMP.IR...

  • Page 8: Intended Use

    Safety Chapter Note for the system operator The pertinent accident prevention regulations, as well as all other generally acknowledged safety regulations, must be adhered to! 2.3 Intended Use The barrel pump is used for the fast and safe drainage or transfer of storage tanks, drums and container.

  • Page 9: Safety Information For Pump And Motor

    Safety Chapter 2.5.1 Safety Information for Pump and Motor WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious inju‐ ries. Please ensure when handling hazardous sub‐ stances that you have read the latest safety data sheets provided by the manufacture of the haz‐ ardous substance.

  • Page 10: Safety Information For The Pump Nozzle

    Safety Chapter Wear protective clothing, referring to the material safety data sheets issued by the manufacturer of the hazardous material. Do not expose the pump to weathering. Clean the pump after each use, referring to the material safety data sheets issued by the manufacturer of the hazardous material.

  • Page 11: Sound Pressure Level

    Safety Chapter Note any internal instructions. Wear protective clothing, referring to the material safety data sheets issued by the manufacturer of the hazardous material. Do not expose the pump nozzle to weathering. Clean the pump nozzle after each use, referring to the material safety data sheets issued by the manufacturer of the haz‐...

  • Page 12: Storage And Transport

    Storage and Transport Storage and Transport Ä Chapter 2.2 „Users' User qualification: instructed user, see qualifications“ on page 7 Environmental conditions for storage and transport: Permissible ambient temperature: +1 °C ... +40 °C. Humidity: maximum 90 % relative air humidity, non-con‐ densing.

  • Page 13: Assembly And Commissioning

    Assembly and Commissioning Assembly and Commissioning Ä Chapter 2.2 „Users' User qualification: instructed user, see qualifications“ on page 7 4.1 Assembly of the Pump A2269 Fig. 4: Assembly. Check whether there is a seal (1) in the threaded connector. Manually tighten the threaded connector clockwise. 4.2 Motor Description and Overcurrent Tripping Air-ventilated collector motor with 2-stage switch and overcurrent protection switch.

  • Page 14: Operation

    Operation Operation Ä Chapter 2.2 „Users' User qualification: instructed user, see qualifications“ on page 7 WARNING! Electrical voltage Possible consequence: Fatal or very serious inju‐ ries. – Before using, check the mains connection cable for damage. – Keep the mains connection cable away from solvents.
  • Page 15 Operation A2268 Fig. 5: 2-stage switch (1). Place the pump in the liquid and fix the pump to the container using the integral grip (2). Check whether the manual lever of the pump nozzle returns automatically to its starting position. ð...

  • Page 16: Cleaning After Each Use

    Cleaning After Each Use Cleaning After Each Use Ä Chapter 2.2 „Users' User qualification: instructed user, see qualifications“ on page 7 WARNING! Change of medium = Clean the pump Hazard from the chemical incompatibility of the media. Possible consequence: Health risk and/or damage to the pump and/or medium.

  • Page 17: Repair, Faults And Spare Parts

    Repair, Faults and Spare Parts Repair, Faults and Spare Parts 7.1 Checks/Repairs Ä Chapter 2.2 „Users' User qualification: trained user, see qualifications“ on page 7 Replacing the hose connection or seal: Regularly check the pump in accordance with – statutory/country-specific regulations and acci‐ dent prevention regulations (in Germany such as in accordance with BGV A3).

  • Page 18: Troubleshooting

    Please contact Service with all other faults. For contact data see the Legal Notices. Check on the manufacturer's website www.prominent.com whether a more recent version of the operating instructions is available, as further remedies may have been developed in the meantime.
  • Page 19 Repair, Faults and Spare Parts Spare parts for the motor A2273 Fig. 8: Spare parts drawing for the motor. Spare parts for the motor Position Description Quan‐ Order number tity Motor, complete 310 00 023 Motor housing, left half 310 00 025 Cord 925 95 906 O-ring Ø...
  • Page 20 Repair, Faults and Spare Parts Position Description Quan‐ Order number tity Grooved ball bearing 922 20 002 Securing washer 908 05 007 Anchor, complete with pos. 22, 23, 25, 27, 48 310 00 031 Fan blade 310 00 008 Clamp pin 914 47 002 Bolt 902 25 000...
  • Page 21 Repair, Faults and Spare Parts Spare parts for the pump A2274 Fig. 9: Spare parts drawing for the pump. Spare parts list for the pump Position Description Quantity Order number Wetted materials Pump, complete, without motor 314 60 001 Coupling spider 303 40 637 Coupling cage 303 40 635...
  • Page 22 Repair, Faults and Spare Parts Spare parts for the pump nozzle A2275 Fig. 10: Spare parts drawing for the pump nozzle. Spare parts list for the pump nozzle Position Description Quantity Order number Wetted materials Pump nozzle, complete 001 12 537 Domed nut 906 70 009 Compression spring...

  • Page 23: Use Parts Disposal/Declaration Of Decontamination

    NOTICE! Regulations governing the disposal of used parts – Note the national regulations and legal stand‐ ards that currently apply in your country when disposing of the product. ProMinent GmbH, Heidelberg/Germany will take back clean used parts. BARRELPUMP.IR...

  • Page 24: Technical Data At A Glance

    Technical Data at a Glance Technical Data at a Glance Part no. 1036145 Parameter Value/Design Pump type DULCO ® Trans 25/700 PVDF Feed rate*) 1260 l/h (motor at stage II) Max. delivery height 5.4 m (motor at stage II) Max. viscosity <...

  • Page 25: Performance Diagram

    Technical Data at a Glance 9.1 Performance diagram A2272 Fig. 11: Performance diagram. Measured values ± 10 %, meas‐ ured with water 20 °C, hose and pump nozzle connected. 2-stage switch at "I" II. 2-stage switch at "II" 9.2 Dimensional Drawing with Main Dimensions DN13 A2271 Fig.

  • Page 26: Ec Declaration Of Conformity For Machinery

    In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, Germany, hereby declare that the product specified in the following, complies...

  • Page 27: Index

    Index Index 1, 2, 3 ... 2-stage switch ......13 Nameplate ......4 Non-discriminatory approach .
  • Page 28 Index Wetted materials of the unit ....4 BARRELPUMP.IR...
  • Page 29 BARRELPUMP.IR...
  • Page 30 BARRELPUMP.IR...
  • Page 31 BARRELPUMP.IR...
  • Page 32 ProMinent GmbH Im Schuhmachergewann 5 - 11 D-69123 Heidelberg Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 983643, 1, en_GB BARRELPUMP.IR © 2016...
