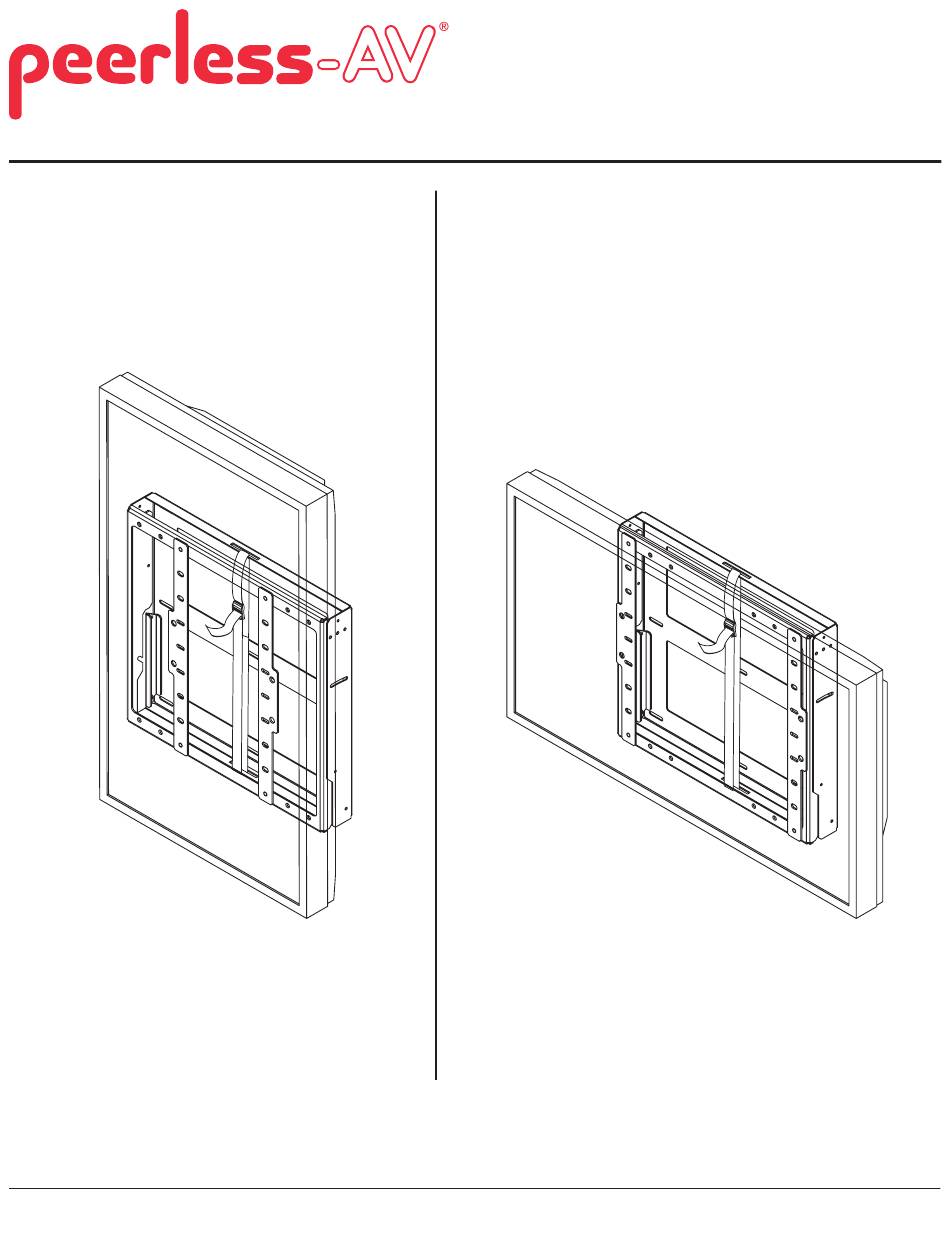

- Page 1 Installation and Assembly: Model: DST660 PORTRAIT LANDSCAPE Maximum Load Capacity: 125 lb (57 kg) 2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 2011-12-16 SHEET #:125-9272-4 (2022-05-12)
-
Page 2: Table Of Contents
IMPORTANT! Read instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Parts List Description Part# wall plate 145-1482 adaptor plate 145-1461 #14 x 2.5" wood screw 5S1-015-C03 concrete anchor 590-0320 M8 x 12mm phillips screw 520-9571 M8 x 25mm phillips screw 520-1031 M5 x 12mm phillips screw 520-1027 M6 x 12mm phillips screw 520-1128 spacer (not used) 600-1215 5/16 SAE flat washer 540-9406... -
Page 4: Installation To Double Wood Stud Wall
Installation to Double Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. • Never tighten in excess of 80 in. • lb (9 N.M.). • Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is highly recommended. -
Page 5: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity. •... -
Page 6: Installation To Metal Stud Wall
Installation to Metal Stud Wall WARNING • Drywall must be 1/2" or thicker, and metal stud must be 24 gauge or thicker. • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components. • Make sure that togglers are anchored into the center of the studs. The use of an "edge to edge" stud finder is highly recommended. Using a stud finder, locate and mark the edges of the metal stud used in mounting this product. Use of an edge to edge stud finder is highly recommended. Use a level to draw a level, vertical line down the center of the stud. Level wall plate, and mark the center of the six mounting holes. Make sure that the mounting holes are on the stud centerlines. Drill six 1/2" holes through drywall and metal studs. Note: It may be necessary to drill 5/32" pilot holes prior to drilling 1/2" holes. Install togglers as shown in figure 1.1. Loosely fasten wall plate to wall using six 1/4-20 x 2.5" screws and six 1/4" washers as shown in figure 1.2. Level, hold, and then tighten all screws. -
Page 7: Placement Of Adhesive Strips And Attach Cpu To Wallplate
Placement of Adhesive Strips Place adhesive strips on the wall plate in location that will allow the most contact with CPU (not included) as shown in figure 2.1. Note: Placement of adhesive strips will vary depending on size of CPU (not included) as shown in figure 2.2 FRONT VIEW K (2) fig. 2.1 fig. 2.2 Attach CPU to Wall Plate Note: Safety belt may need to be loosened to attach CPU (not included) to wall plate. Press CPU against adhesive strips on wall plate and tightly secure safety belt against CPU (not included). -
Page 8: Attaching Adaptor Plate To Display
Attaching Adaptor Plate to Display R (2) Determine hole pattern of display and fasteners used. Hand thread screws through washers and adaptor brackets into screen as shown in figure 4.1. fig. 4.1 WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. -
Page 9: Attaching Adaptor Plate To Wall Plate And Accessing Cpu
Attaching Adaptor Plate to Wall Plate Thread two M5 x 15mm socket pin screws into bottom holes of wall plate. Guide hook slots of adaptor plate onto screws. While supporting weight of screen, align top holes of wall plate and adaptor bracket to the desired tilt angle and secure with two M5 x 15mm socket pin screws as shown in figure 6.2. Tighten all screws securely. Using security allen wrench secure M5 x 15mm socket pin screw to "TOP HOLE" when not using fixed stop positions. -
Page 10: Warranty
Záruka Záruka Garantia TÜR Garanti̇ www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
