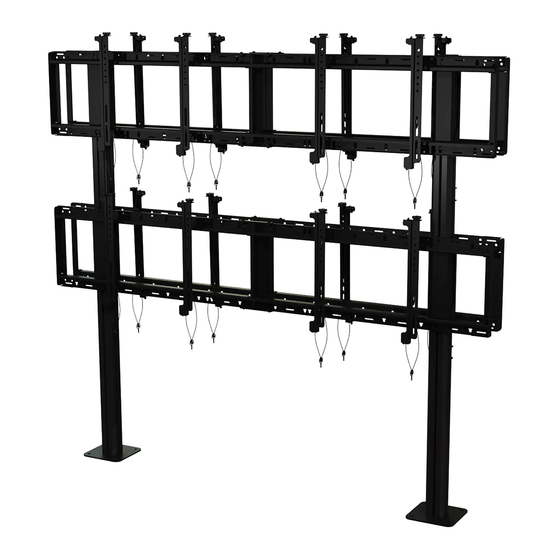

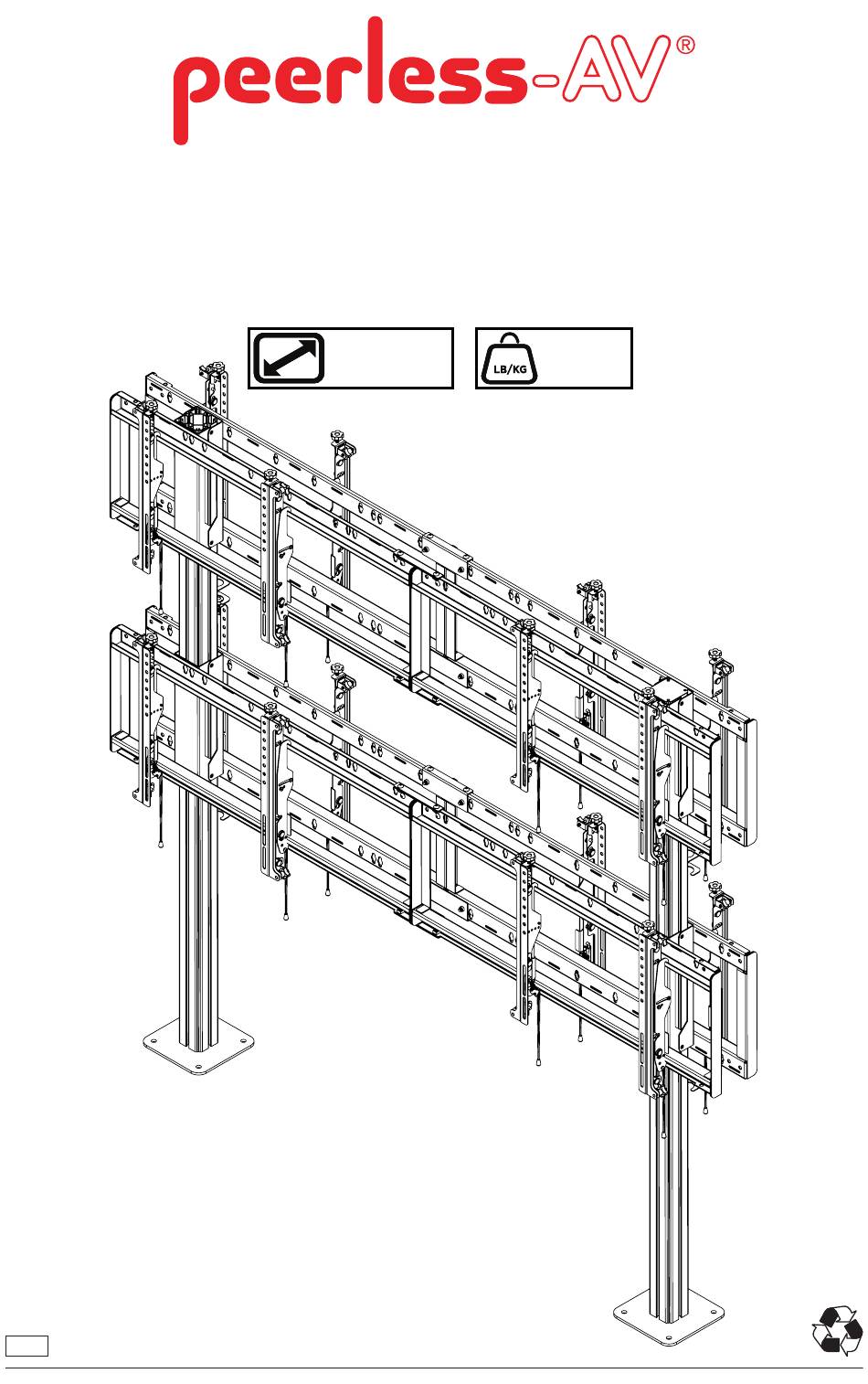

- Page 1 DS-S560-B2X2 46" - 60" 800 lb (117 - 152 cm) (363 kg) 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 2 WARNING ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # pedestal 147-T1426 column 146-T1131 cover 145-T1809 vertical support bracket 145-T1806 left adaptor bracket 146-1609 right adaptor bracket 146-1608 outer support bracket 146-T1290 dual cross support 146-T1905 cord bracket 146-T1321...
-
Page 4: Table Of Contents
G ( 4 ) H (4) I ( 4 ) dual cross cord outer support bracket support bracket J ( 64 ) K ( 16 ) L ( 8 ) M ( 16 ) N ( 4 ) M8 x 16mm M8 square nut cover clip M5 x 10mm... - Page 5 T (4) 2015-06-12 #:126-9066-6 (2020-01-14)
-
Page 6: G ( 4 )
K (4) 1/8" (3mm) 1/8" (3mm) J (8) DISPLAY HEIGHT TIGHTEN CONNECTING HARDWARE 2015-06-12 #:126-9066-6 (2020-01-14) -
Page 7: N ( 4 )
L (4) I (2) N (2) TIGHTEN CONNECTING HARDWARE TOP VIEW 2015-06-12 #:126-9066-6 (2020-01-14) - Page 8 WARNING ENG - When installing Peerless mounts on a concrete floor, the floor must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. 2015-06-12 #:126-9066-6 (2020-01-14)
-
Page 9: U ( 8 )
Drill mounting holes into supporting surface (3" (76mm) minimum depth required). Align base. Mark mounting holes. 3/8" (10mm) 3" 3/8" (76mm) (10mm) 55.00" (1397mm) 3/8" (10mm) Align base. Install using concrete anchors provided. U (8) ENG Maximum 35 ft • lb (47 N.M.). 55.00"... - Page 10 TIGHTEN CONNECTING HARDWARE H (2) Tighten. Tighten. Cross supports must center on columns. 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 11 TIGHTEN CONNECTING HARDWARE H (2) Tighten. Tighten. Cross supports must center on columns. 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 12 Center adaptor brackets vertically on back of screen. 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 13 Must hang displays on top row second; Secure pin in "locked" position. "LOCKED" POSITION Optional: Insert M5 x 10mm type-F socket pin screws (M) to lock latches. "LOCKED" POSITION 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 14 Display adjustment TILT FORWARD SIDE SIDE SIDE TILT BACKWARD TILT RIGHT TILT LEFT SIDE DOWN ROTATE LEFT ROTATE RIGHT 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 15 Route cables through cord brackets. 2015-06-12 #:126-9066-6 (2020-01-14)
- Page 16 (from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
