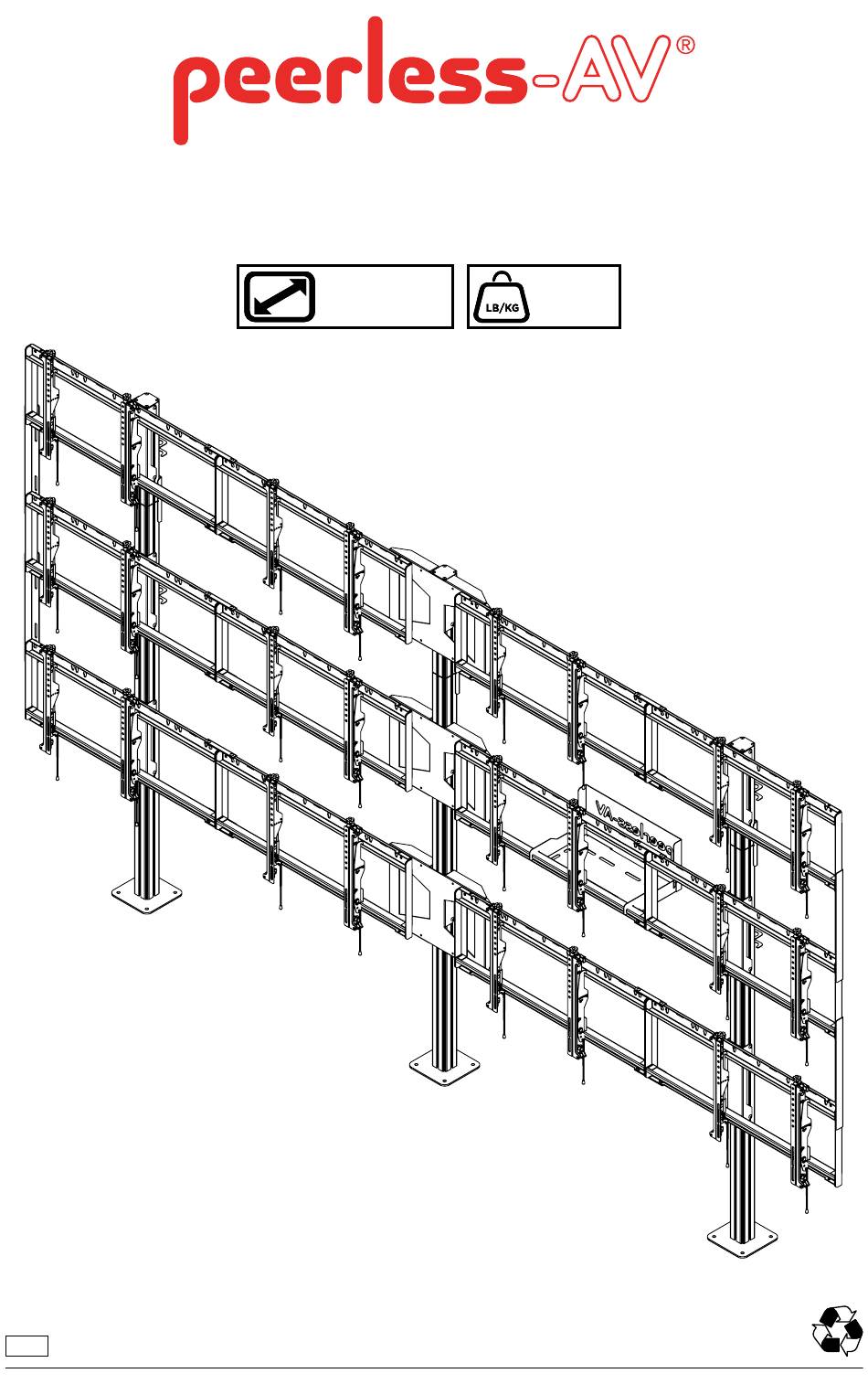

  • Page 1 DS-S555-4X3 46" - 55" 1200 lb (117 - 140 cm) (544 kg) 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 2 WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. Use with heavier displays may result in instability causing tip over resulting in death or serious injury.
  • Page 3 Tools Needed for Assembly. To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 3/8" (10mm) +1/2 3/8" (10mm) 2015-06-24 #:009-9117-4 (2018-03-08)

  • Page 4: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # pedestal 146-T1132 column 146-T1131 extension 145-T1778 cover 145-T1809 side support bracket 145-T1807 vertical support bracket 145-T1806 left adaptor bracket 146-1609 right adaptor bracket 146-1608 computer cover 145-T1930 computer shelf...
  • Page 5 K ( 6 ) I ( 1 ) J ( 1 ) dual cross computer cover computer shelf support L ( 3 ) M ( 6 ) cord extension N ( 3 ) bracket adaptor bracket, 4x2 configuration O ( 6 ) P ( 140 ) Q ( 56 ) R ( 12 )

  • Page 6: Top View

    Z (4) Do not fully tighten hardware P (4) U (2) TOP VIEW 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 7 TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 8 1/8" 1/8" (3mm) (3mm) Q (4) P (6) TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 9 R (4) M (2) O (2) TIGHTEN CONNECTING HARDWARE TOP VIEW 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 10 Use metric formula below and diagram to right to determine hole pattern required for center vertical support bracket. All dimensions are metric. BACK OF DISPLAY Use the outside mounting holes when… Use the inside mounting holes when… a x 4 > 4368mm and a x 3 + b < 4318mm a x 4 >...
  • Page 11 TIGHTEN CONNECTING HARDWARE TOP VIEW 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 12 WARNING ENG - When installing Peerless mounts on a concrete floor, the floor must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. ADVERTENCIA ESP - Cuando vaya a instalar soportes de techo de Peerless en techos de concreto, los techos tienen que tener, por lo menos, 8"...
  • Page 13 Drill mounting holes into supporting surface (3" (76mm) minimum depth required). Align base. Mark mounting holes. 3/8" (10mm) 3/8" 3" (10mm) (76mm) 55.00" 55.00" (1397mm) (1397mm) 3/8" (10mm) AA (12) Align base. Install using concrete anchors provided. 55.00" (1397mm) 55.00" (1397mm) ENG Maximum 35 ft •...
  • Page 14 TIGHTEN CONNECTING HARDWARE K (2) 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 15 TIGHTEN CONNECTING HARDWARE K (2) 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 16 TIGHTEN CONNECTING HARDWARE K (2) 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 17 Q (8) E (4) P (2) TIGHTEN CONNECTING HARDWARE Q (2) P (8) 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 18 10-1 Center adapter brackets vertically on back of screen. 10-2 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 19 11-1 "LOCKED" POSITION Must hang displays to bottom row first; Secure pin in "locked" position. 11-2 "LOCKED" POSITION Must hang displays on top row last; Secure pin in "locked" position. 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 20 11-3 "LOCKED" POSITION Must hang displays on top row last; Secure pin in "locked" position. 11-4 OPTIONAL: Insert M5 x 10mm type-F socket pin screws (S) to lock latches. "LOCKED" POSITION 2015-06-24 #:009-9117-4 (2018-03-08)

  • Page 21: Display Adjustment

    Display Adjustment TILT FORWARD SIDE SIDE SIDE TILT BACKWARD TILT RIGHT TILT LEFT SIDE DOWN ROTATE LEFT ROTATE RIGHT 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 22 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 23 13-1 1/8" (3mm) S (2) 13-2 TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 24 Route cables through cord brackets. 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 25 This page intentionally left blank. 2015-06-24 #:009-9117-4 (2018-03-08)
  • Page 26 This page intentionally left blank. 2015-06-24 #:009-9117-4 (2018-03-08)

  • Page 27: Limited Five-Year Warranty

    LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
  • Page 28 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66062 Ph: (800) 865-2112...
