Summary of Contents for peerless-AV DS-MBY942L-2X1

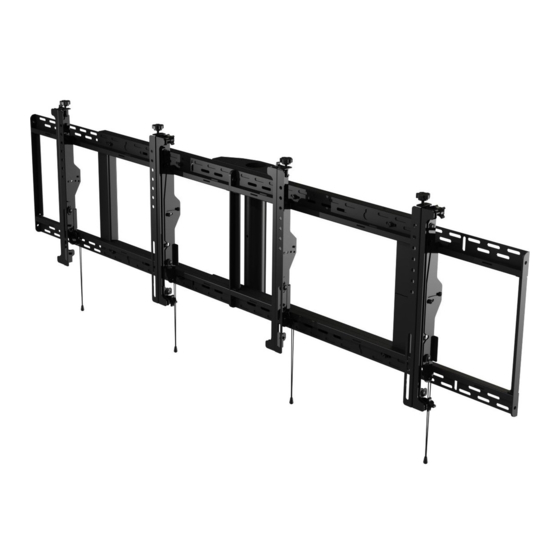

- Page 1 DS-MBY942L-2X1 DS-MBY947L-2X1 40" - 42" 200 lb 46" - 48" 200 lb (102 - 107 cm) (91 kg) (117 - 122 cm) (91 kg) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 2 This page intentionally left blank 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 3 WARNING ENG - Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
- Page 4 Parts (Before beginning, make sure you have all parts shown below). Parts List DS-MBY942L-2X1 DS-MBY947L-2X1 Description Part # Part # wall plate 146-1285 146-1286 left adapter bracket 146-1021 146-1021 right adapter bracket 146-1020 146-1020 retaining collar 1800-375 1800-375 large washer...
- Page 5 J ( 8 ) K ( 8 ) L ( 16 ) M ( 16 ) M8 x 12mm M8 x 25mm 5/16" fl at washer 1/4" spacer N ( 1 ) O ( 6 ) 4mm allen wrench cable tie P ( 1 ) Q ( 1 ) main frame...
- Page 6 7/16" (11mm) T (4) S (4) R (4) ENG Extension column (sold separately) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 7 SLOT ENG Align slot of extension column. V (2) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 8 G (2) G (2) A (2) 3/8" (10mm) A (2) U (12) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 9 ENG OPTIONAL ENG Remove ENG Replace 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 10 Center adapter brackets vertically on back of screen. ENG Use of spacers is OPTIONAL. M (2) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 11 ENG Loosen. ENG Tighten. 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 12 +15° ENG remove, adjust, retighten Tighten. Pre-set tilt positions of 0°, 5°, 10° or 15°. ENG Adjust. ± 3/8" (± 9.5mm) 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 13 O (3) ENG OPTIONAL: cable management 12-1 12-2 ENG Loosen. 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 14 13-1 ENG OPTIONAL WARNING ENG Kickstand is for maintenance only ENG Loosen. 13-2 2014-05-01 #:126-9001-3 (2015-04-24)
- Page 15 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless ® products will be free from defects in material and workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
- Page 16 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66050 Ph: (800) 865-2112...
