1.

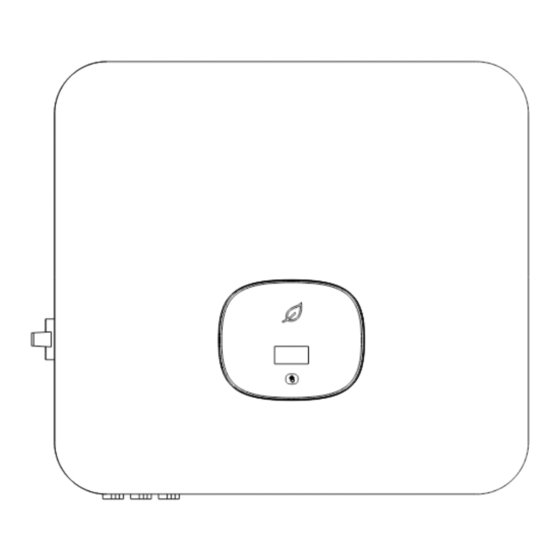

Overview
1
(1)Front panel
(2)Touch button
(6)Heat sink
(7)DC switch
(11)Vent valve
(12)AC terminal
Note:
Dual MPPTs for MOD 3-11KTL3-X&MOD 3-6KTL3-X(NDS), one string input per MPPT. Dual MPPTs for MOD 7-11KTL3-X-AU&
MOD 7-11KTL3-X-AU(NDS)&MOD 12-15KTL3-X &MOD 12-15KTL3-X(NDS) , one MPPT has one string, and other one has two strings.
Note:
1. This document is for quick installation guidance only, please refer to User Manual for more details.
2. Growatt shall not be liable for any damage resulting from unproper installation.
2.
Installation
System overview
2.2
Wall mounting
154
77
Note:
1.When drilling holes in the wall, avoid water and electricity pipes, otherwise it may cause danger.
2 3 4
(3)LCD screen
(8)PV terminal
2.1
Installation requirements
≥300mm
MOD 7-15KTL3-X&MOD 7-11KTL3-X-AU&
MOD 7-11KTL3-X-AU(NDS)&
MOD 12-15KTL3-X(NDS) Quick Guide
5
6
7
(4)LED indicator
(9)RS485 port
≥500mm
≥300mm
≥500mm
8
9
10
11
12
(5)Mounting bracket
(10)USB port
425.2
171.8
87.4
186.4
178.4
