Growatt New Energy
Download
Manual
Shenzhen Growatt New Energy Co., Ltd
4-13/F,Building A,Sino-German(Europe) Industrial Park,
Hangcheng Ave,Bao'an District, Shenzhen, China
T
+86 0755 2747 1942
+86 0755 2747 1942
E
service@ginverter.com
service@ginverter.com
W
www.ginverter.com
www.ginverter.com
GR UM
-
-229
-
A 0
- 1

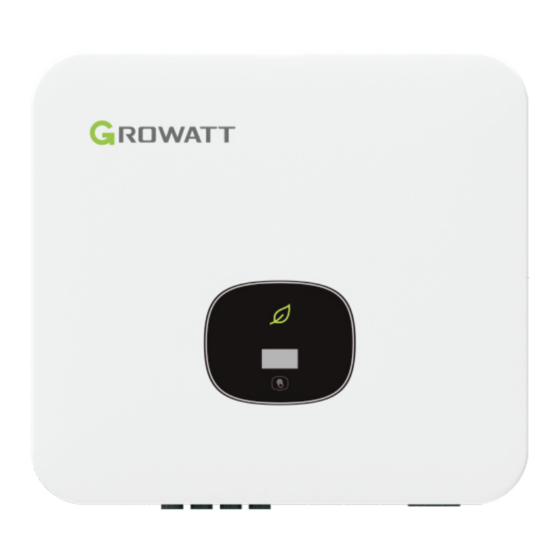

MIN 7000TL-X(E)
MIN 8000TL-X(E)
MIN 7000TL-X
MIN 000TL-X
MIN
MIN
Installation
&
Operation Manual
8
90
00TL-X
100
00TL-X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Growatt MIN 7000TL-X(E)
Summary of Contents for Growatt MIN 7000TL-X(E)

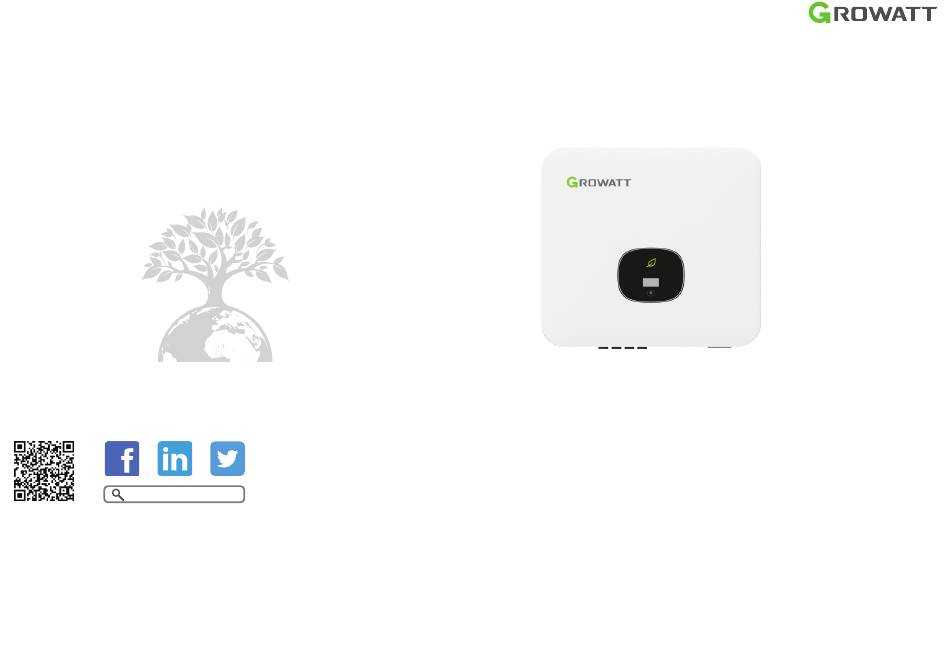

- Page 1 MIN 000TL-X 00TL-X 00TL-X Installation & Operation Manual Growatt New Energy Download Manual Shenzhen Growatt New Energy Co., Ltd 4-13/F,Building A,Sino-German(Europe) Industrial Park, Hangcheng Ave,Bao’an District, Shenzhen, China +86 0755 2747 1942 +86 0755 2747 1942 service@ginverter.com service@ginverter.com www.ginverter.com www.ginverter.com...
- Page 2 Index Notes on this manual 1.1 Validity 1.2 Target Group 1.3 Additional information 1.4 Symbols in this document 1.5 Glossary 2 Safety 2.1 Intended Use 2.2 Qualification of skilled person 2.3 Safety instruction 2.4 Assembly Warnings 2.5 Electrical Connection Warnings 2.6 Operation Warnings 3 Product description 3.1 TL-X Overview...
- Page 3 6 Electrical connection Trouble shooting 11.1 Error Messages displayed on 6.1 Safety OLED 6.2 Wiring AC Output 11.2 System fault 6.3 Connecting the second protective 11.3 Inverter warning conductor 11.4 Inverter fault 6.4 Connecting the PV Array(DC input) 6.5 Connecting signal cable 6.6 Grounding the inverter 6.7 Active power control with smart meter , CT or ripple control signal...
- Page 4 Isolation Switch or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. Alternating Current (AC)
- Page 5 AS4777,etc）; however, certain safety precautions must be observed when installing and operating this inverter. Read and follow all instructions, cautions and warnings in this installation manual. If questions arise, please contact Growatt's technical services at +86 (0)755 2747 1942.
- Page 6 DANGER Persons with limited physical or mental abilities may only work Ø with the Growatt inverter following proper instruction and under constant supervision. Children are forbidden to play with the Growatt inverter. Must keep the Growatt inverter away from children.
- Page 7 3 Product description 3.1 TL-X Overview Symbol on the inverter Symbol Description Explanation Touch button.We can switch the OLED Touch symbol display and set parameter by touching. Inverter status LED color LED status Standby Green 0.5s on and 2s off Normal Green Solid...
- Page 8 If there are a batch of inverters need to be stored, the maximum layers for original carton is four. 60V~550V MPP voltage range Ø After long term storage, local installer or service department of GROWATT should perform a comprehensive test before installation. AC nominal voltage 230V AC grid frequency 50/60 Hz 3.5 The advantage of the unit...
- Page 9 Radios, telephone, television, etc） Ø Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary. Growatt assumes no responsibility for compliance to EMC Ø regulations for the complete system Ø...
- Page 10 5.2 Selecting the installation location Ø This is guidance for installer to choose a suitable installation location, to avoid ≥300mm potential damages to device and operators. Ø The installation location must be suitable for the inverter's weight and dimensions for a long period time. Min.30cm Min.30cm Min.30cm...
- Page 11 5.3.2 Fixed the inverter on the wall Ø Please make sure the inverter is installed at the right place.The inverter can't install close to trunk. Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking.
- Page 12 6 Electrical connection The AC wiring step: Decisive Voltage Class (DVC) indicated for ports 1.Uninstall the parts of the AC connection plug from the accessory bag. Port Name Class 2.Pass the 3 wires (L or L1,N or L2 and PE wires) through the AC shield,connect them to the power grid, and then crimp the OT terminal.
- Page 13 5.Finally, Lock the protective cover on the inverter frame, and finally tighten the protective cover hole. Fig 6.4 Fig 6.5 6.4 Connecting the PV Array (DC input) Wire suggestion length 6.4.1 Conditions for DC Connection Max. cable length Conductor cross section The solar modules connected to the inverter must conform to the 7000 TL-X/X(E)
- Page 14 Make sure the cable polarity is correct and voltage is less than 550V. If the inverter is not equipped with a DC switch but this is mandatory in the country of installation, install an external DC switch. The following limit values at the DC input of the inverter must not be exceeded: Max current Max current...
- Page 15 Definition Definition Power +12V DRM 5 supply for external DRM 6 relay(≤2W) RS 485A1 DRM 7 Fig 6.11 Click! Signal for communication RS 485B1 DRM 8 Fig 6.15 DRMS RefGen Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
- Page 16 6.6 Grounding the inverter Manufacturer Eastron The inverter must be connected to the AC grounding conductor of the power distribution Type SDM120CT-M(40mA) grid via the ground terminal (PE) . General Specifications Voltage AC (Un) 230V Because of the transformerless design, the DC positive pole and DC negative pole of PV arrays are not permitted to be grounded.
- Page 17 6.8.1 16Pin socket pin assignment The following table describes how we can connect EASTRON meter (SDM120CT(40mA) to inverter: COM Socket Pin Assignment for inverters capable of both charging and discharging Meter Pin NO. Description Meter Connection DRM 5 CT-P(White) DRM 6 CT-input CT-N(Black or Blue) DRM 7...
- Page 18 6.9.2 Danger information Danger of fire from electric arc Only test the AFCI for false tripping in the order described below. Do not deactivate the AFCI permanently. If an "Error 200" message is displayed, the buzzer alarms, an electric arc occurred in the PV system.
- Page 19 Commissioning 7 Do not disconnect the DC connectors under load. DANGER Improper operation during the wiring process can cause fatal injury to operator or unrecoverable damage to the inverter. Only qualified personnel can perform the wiring work. WARNING Fig 6.23 Damage to the inverter due to moisture and dust penetration Ø...
- Page 20 7.1.3 Enabling/Disabling Power Quality Response Modes（PQRM） Growatt Country/Aera PV inverter XXXX PQRM setting When the Region setting is completed, the inverter will operate Press the touch key once a second to scroll through the different Country, showing on under default mode different from region.
- Page 21 7.2.3 Set inverter date & time Single touch make the number 1. Set parameter Double touch to confirm you setting. Hold 5s recover defaut value. Set Date Set Time General Set parameter 2018-12-14 12:30:30 Advanced Set Date Set Time General Set Language Advanced 2018-12-14...
- Page 22 Reset Region 7.3.2 Generation & Export limitation control and Power Sensor setting Single touch to switch display or make the number +1. General Double touch to confirm you setting. Password Set parameter Control type: Advanced SW stands for enabling software limit control function HW stands for enabling hardware limit control function Both stands for enabling software and hardware limit control function at the same time.
- Page 23 7.3.4 Adjust the setpoints from the regional default values Under the permission given by your energy provider, the ratio of your system output power divided by the rated power of the inverter is called Limit Rate.For instance,if the Under the permission by Distribution Network Service Provider,the installer can adjust energy provider only accepts 8kVA/kW from your 10kW system, then the Limit Rate of the setpoints from the regional default values.
- Page 24 Start-up and shut down the 16Pin socket pin assignment Inverter 8.1 Start-Up the inverter Definition Definition Power 1. Connect the AC breaker of the inverter. +12V DRM 5 supply for 2.Turn on the dc switch, and the inverter will start automatically when the input voltage external is higher than 60 V.
- Page 25 An error message will be displayed on the OLED screen when a fault occurs. The faults consist of system fault and inverter fault. You may be advised to contact Growatt in some situation, please provide the following information. Information concerning the inverter:...
- Page 26 Error: 202 tolerable value. 3.If the voltage of PV string is lower than 550V, contact Growatt. 1.Check the PV panel polarity. 2.Restart the inverter. If the warning 1.Check if panel enclosure ground Warning 203...
- Page 27 Store the inverter in a dry place where ambient temperatures are always between -25°C and +60°C. Restart inverter, if problem still exist, Error: 420 GFCI fault. change power board, or contact Growatt. The data sampled by the 13.4 Disposing of the Inverter Restart inverter, if problem still exist, Error: 422 DSP and redundant M3 is Contact Growatt.
- Page 28 14 Technical Data 14.1 Specification Efficiency Max. efficiency 98.1% Model 7000TL-X（E） 8000TL-X（E） 7000TL-X* Specifications Euro-eta 97.3% Input data(DC) Protection devices Max. recommended PV DC reverse-polarity 11.2k 11.2k Integrated power(for module STC) protection Max. DC voltage 600V DC switch Integrated Start voltage 100V DC Surge protection Type II...
- Page 29 Max. efficiency 98.1% Model 8000TL-X* 9000TL-X 10000TL-X Euro-eta 97.3% 97.6% 97.6% Specifications Input data(DC) Protection devices Max. recommended PV DC reverse-polarity 13.5k Integrated power(for module STC) protection Max. DC voltage 600V DC switch Integrated Start voltage 100V DC Surge protection Type II Min.
- Page 30 NDG3V-50 Rated insulation voltage 1500V Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age. Rated impulse withstand voltage The warranty shall not cover transportation costs in connection with the return of Suitability for isolation defective modules .
- Page 31 16 Contact If you have technical problems about our products, contact the GROWATT Serviceline. We need the following information in order to provide you with the necessary assistance: Inverter type Ø Serial number of the inverter Ø Ø Event number or display message of the inverter Ø...
