1.

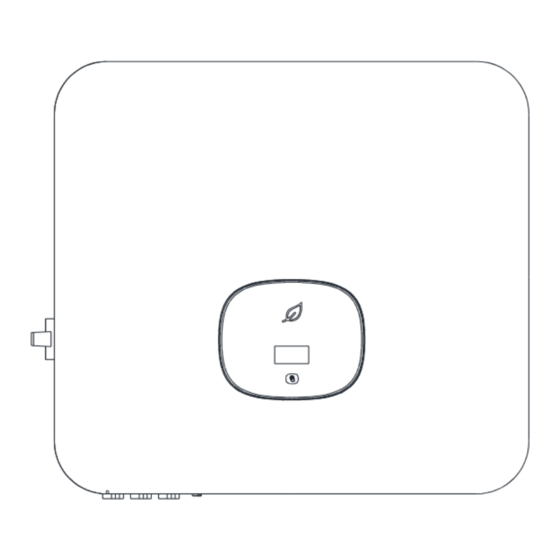

Overview
(2) Touch button
(1) Front panel
(6) Heat sink
(7) DC switch
(11) USB port
(12) Vent valve
Note:
1. This document is for quick installation guidance only, please refer to User Manual for more details.
2. Growatt shall not be liable for any damage resulting from unproper installation.
2.
Installation
System overview
Inverter
PVArray
Grid
DC
Breaker
Breaker
BAT
Load
2.2
Wall mounting
154
77
Note:
1. When drilling holes in the wall, avoid water and electricity pipes, otherwise it may cause danger.
(3) LCD screen
(8) PV terminal
(13) AC terminal
2.1
Installation requirements
Electrical Grid
AC
Breaker
MOD 3-10KTL3-XH/MOD 10KTL3-XH BE
Quick Guide
(4) LED indicator
(9) Battery terminal
425.2
171.8
87.4
(5) Mounting bracket
(10) COM port
186.4
178.4
