- Page 1 RO 051 S-DIAS Relay Output Module Instruction Manual Date of creation: 10.08.2015 Version date: 26.07.2023 Article number: 20-064-051-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

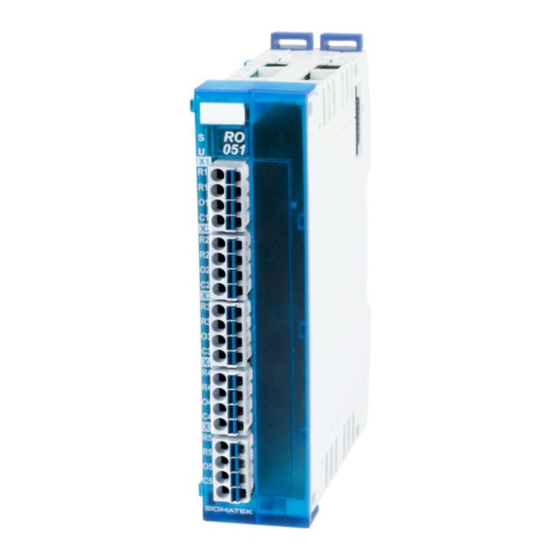

- Page 3 S-DIAS RELAY OUTPUT MODULE RO 051 S-DIAS Relay Output Module RO 051 with 5 relay outputs The S-DIAS RO 051 relay output module has five relay outputs, each with changeover contacts for 115 V/6 A AC resp. 24 V/6 A 26.07.2023 Page 1...
-
Page 4: Table Of Contents
RO 051 S-DIAS RELAY OUTPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS RELAY OUTPUT MODULE RO 051 Mechanical Dimensions ............19 Connector Layout ..............20 Status LEDs ................. 20 Applicable Connectors ............... 21 Label Field ................... 22 Wiring ..................23 Wiring Example ................23 Note ....................24 Assembly/Installation ............25 Check Contents of Delivery ............25 Mounting ..................
- Page 6 RO 051 S-DIAS RELAY OUTPUT MODULE 15.1 Cycle Times below 1 ms (in µs) ..........31 15.2 Cycle Times equal to or higher than 1 ms (in ms)....31 16 Hardware Class RO051 ............32 16.1 Interfaces ..................33 16.1.1 General ....................33 16.1.2...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
RO 051 S-DIAS RELAY OUTPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS RELAY OUTPUT MODULE RO 051 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS RELAY OUTPUT MODULE RO 051 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
RO 051 S-DIAS RELAY OUTPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product RO 051 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
RO 051 S-DIAS RELAY OUTPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS RELAY OUTPUT MODULE RO 051 Technical Data Specifications Relay Outputs Number Contact: changeover contact Relay type V23061-B1007-A301 Nominal voltage 24 V DC 115 V AC Switching voltage maximum 30 V maximum 125 V AC Maximum continuous current maximum 6 A DC... -
Page 16: Relay Data V23061-B1007-A301
RO 051 S-DIAS RELAY OUTPUT MODULE Relay data V23061-B1007-A301 Page 14 26.07.2023... -
Page 17: Output Circuit
S-DIAS RELAY OUTPUT MODULE RO 051 Output Circuit Electrical Requirements Voltage supply from S-DIAS bus +5 V Current consumption on the typically 40 mA maximum 50 mA S-DIAS bus (+5 V supply) Voltage supply from S-DIAS bus +24 V Current consumption on the... - Page 18 RO 051 S-DIAS RELAY OUTPUT MODULE INFORMATION If this S-DIAS module is connected to an S-DIAS supply module with several S-DIAS modules, the total current of the modules used must be determined and checked. The total current of the +24 V supply cannot exceed 1.6 A! The total current of the +5 V supply cannot exceed 1.6 A!
- Page 19 S-DIAS RELAY OUTPUT MODULE RO 051 26.07.2023 Page 17...
-
Page 20: Miscellaneous
RO 051 S-DIAS RELAY OUTPUT MODULE Miscellaneous Article number 20-064-051 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -40 ... +85 °C Environmental temperature -25 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 21: Mechanical Dimensions
S-DIAS RELAY OUTPUT MODULE RO 051 Mechanical Dimensions 26.07.2023 Page 19... -
Page 22: Connector Layout
RO 051 S-DIAS RELAY OUTPUT MODULE Connector Layout Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 23: Applicable Connectors
S-DIAS RELAY OUTPUT MODULE RO 051 Applicable Connectors Connectors: X1-X5: Connectors with spring terminals (included in delivery) The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded) strands. Connections: Stripping length/Sleeve length: 10 mm Mating direction: parallel to the connector axis resp. to the... -
Page 24: Label Field
RO 051 S-DIAS RELAY OUTPUT MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 22 26.07.2023... -
Page 25: Wiring
S-DIAS RELAY OUTPUT MODULE RO 051 Wiring Wiring Example 26.07.2023 Page 23... -
Page 26: Note
RO 051 S-DIAS RELAY OUTPUT MODULE Note The input filters, which suppress noise signals, allow operation in harsh environmental conditions. A careful wiring method is also recommended to ensure error-free function. The following guidelines should be observed: • Avoid parallel connections between input lines and load-bearing circuits. -
Page 27: Assembly/Installation
S-DIAS RELAY OUTPUT MODULE RO 051 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 28: Mounting
RO 051 S-DIAS RELAY OUTPUT MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 29 S-DIAS RELAY OUTPUT MODULE RO 051 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 27...
-
Page 30: Transport/Storage
RO 051 S-DIAS RELAY OUTPUT MODULE 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 31: Maintenance
S-DIAS RELAY OUTPUT MODULE RO 051 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. -
Page 32: Addressing
RO 051 S-DIAS RELAY OUTPUT MODULE 14 Addressing Address Size Access Type Description Reset Value (hex) (bytes) Memory Output register Bit 0 Output 1-Relay 1 Bit 1 Output 2-Relay 2 0000 0000 Bit 2 Output 3-Relay 3 Bit 3 Output 4-Relay 4... -
Page 33: Supported Cycle Times
S-DIAS RELAY OUTPUT MODULE RO 051 15 Supported Cycle Times 15.1 Cycle Times below 1 ms (in µs) x= supported 15.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported 26.07.2023 Page 31... -
Page 34: Hardware Class Ro051
16 Hardware Class RO051 Hardware Class RO051 for the S-DIAS RO051 digital module This hardware class is used to control the RO 051 hardware module with 5 inputs. More information on the hardware can be found in the module documentation. -
Page 35: Interfaces
S-DIAS RELAY OUTPUT MODULE RO 051 16.1 Interfaces 16.1.1 General ClassState State This server shows the actual status of the hardware class. DeviceID State The device ID of the hardware module is shown in this server. FPGAVersion State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). - Page 36 RO 051 S-DIAS RELAY OUTPUT MODULE Documentation Changes Change date Affected Chapter Note page(s) 25.08.2015 normally open to changeover 03.09.2015 2 mechanical dimensions corrected 08.09.2015 1.1 Specifications relay Relay type added in the table outputs 1.2 Relay data Title changed to Relay data V23061-A1007-A301 21.01.2016...
