Steps for Adjustment

1. Place the miter bar into the slot of the machine you
intend to use the Revolution Miter Gauge with.
2. Using the provided 2.5mm hex wrench, loosen and
then fully tighten each of the three discs along the
length of the miter bar.
Begin with the middle adjustment disc, then adjust
the front disc. Adjust the disc at the rear of the miter
bar last.
The optimal fit strikes a balance between minimizing
side-to-side play of the miter bar while preserving
easy travel of the miter gauge along the length of the
miter slot. If the miter gauge offers too much friction
when passing material across the table of your
machine, loosen the adjustment described above to
relieve the excessive friction.
If you're having trouble optimizing the fit, try using a
piece of paper as a spacer between each adjustment
disc and the side of the miter slot when performing
this procedure.
|
8 Revolution MIter Gauge Owner's Manual

ATTACH AND ADJUST THE FENCE

The setup described here assumes the miter gauge will be
used in the miter slot to the left of the blade. If your use
case requires setting up your miter gauge for use in the
right side miter slot, see the instructions for Reversing the
Fence Orientation on page 14.
Follow the steps below to attach the black, aluminum-
extruded Fence Assembly to the body of the miter gauge.

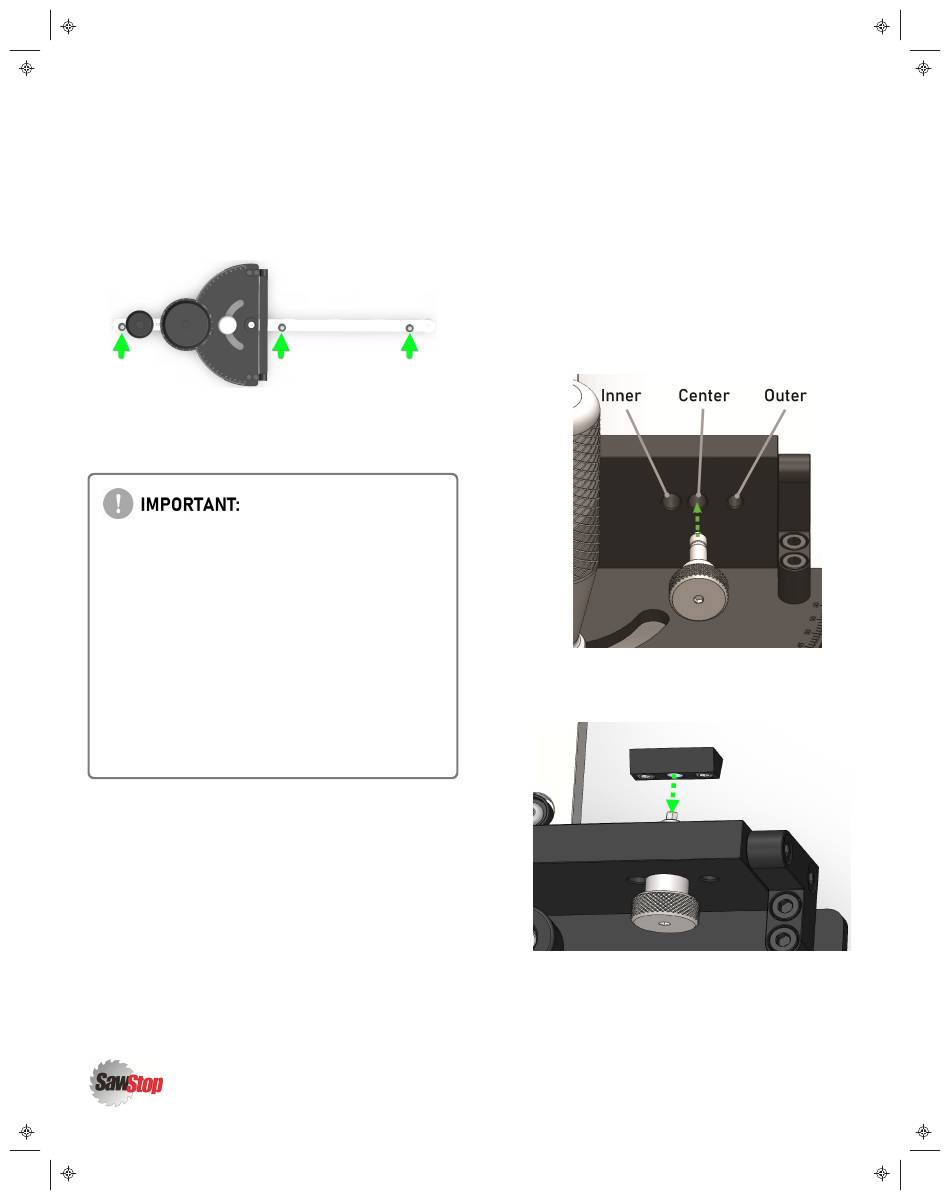

1. From the back of the Vertical Faceplate , insert a
silver, knurled Thumbscrew through the "Center"
hole indicated in the illustration below.
2. At the front of the Vertical Faceplate , loosely
thread one of the Sliding Wedges onto the tip of the
knurled Thumbscrew .
