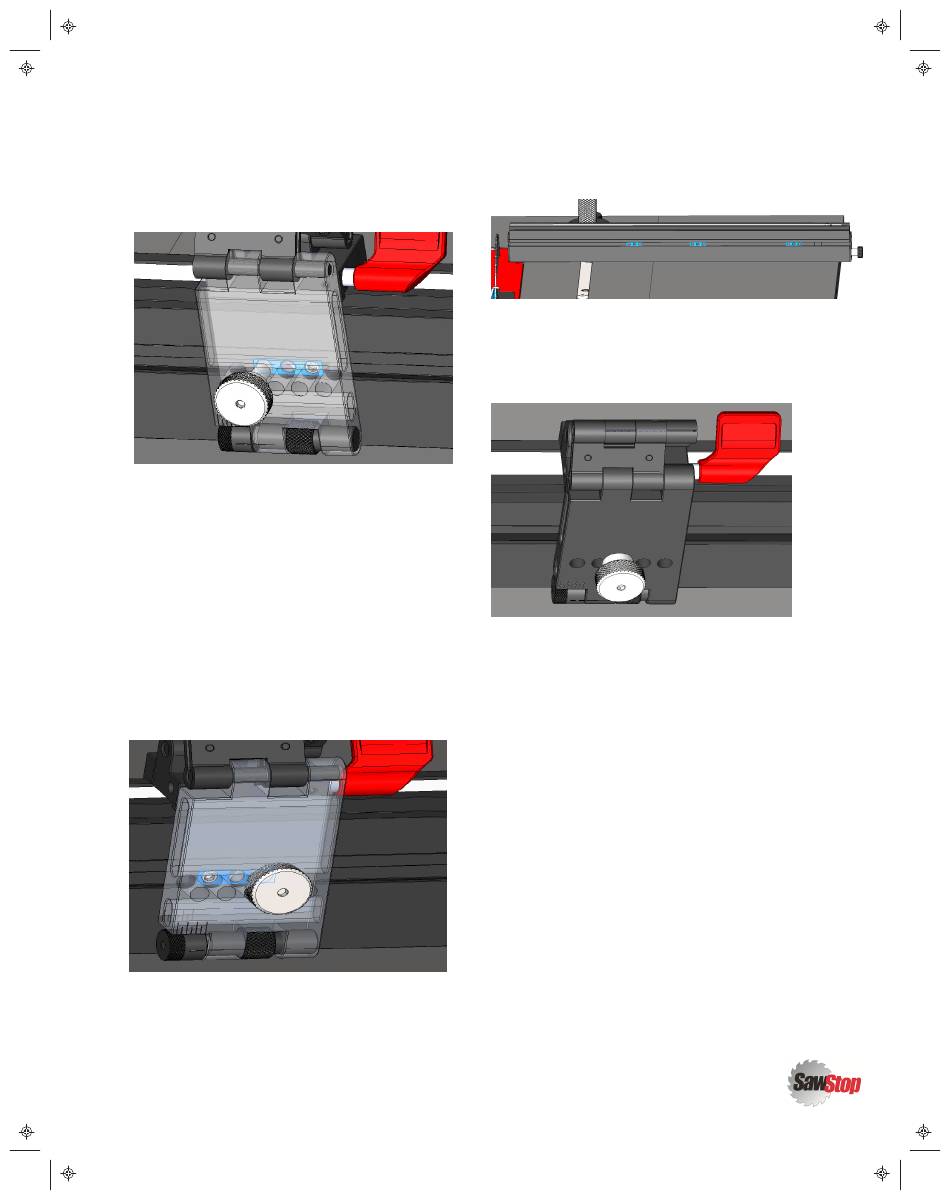

3. Insert the spare Thumbscrew into the hole just left
of the center hole of the flip stop. Use the hex tip of
the Thumbscrew to tighten the set screw of the
Sliding Wedge (highlighted in blue) you placed in
Step 2. Turn the Thumbscrew clockwise until the
set screw is snug.
4. Move the Thumbscrew to the center hole on the
flip stop and test that it can freely thread into the
Sliding Wedge you installed in step 2. If the
Thumbscrew does not thread freely, the Sliding
Wedge may have been disturbed during the
previous step. To fix this, loosen the set screw
slightly, correct the position of the wedge, and
repeat step 3.
5. Tighten the second set screw in the Sliding Wedge
by inserting the spare Thumbscrew in the hole to
the right of the center hole of the flip stop. Use the
hex tip of the Thumbscrew to tighten the set screw.
Turn the Thumbscrew clockwise until the set
screw is snug.
The Sliding Wedge is now fixed in place and your
first preset is done.
6. Repeat steps 1-5 at the 12", and 18" positions. When
all three flip stop presets (spare Sliding Wedges )
are in place, it should resemble the image below.
(Spare Sliding Wedges are highlighted in blue.)
With these presets now in place, you can easily, and with
precision, alternate between these cut lengths by indexing
the center hole on the front of the flip stop with the presets
( Sliding Wedges ) you installed.

ADDING A SACRIFICIAL FENCE

Adding a suitable material (not included) secured to the
front of the aluminum Fence Assembly of your miter gauge
can be achieved by taking advantage of the dovetail-shaped
slot that runs the length of the face of the Fence Assembly .
To secure the axillary fence material, add a pair of the
spare Sliding Wedges that shipped with your miter gauge
into the slot plus a pair of M6 bolts (not included). The
length of the bolts will vary depending on the thickness of
the material you choose for your sacrificial fence. (Detailed
instructions to follow.)
Revolution MIter Gauge Owner's Manual
|
19
