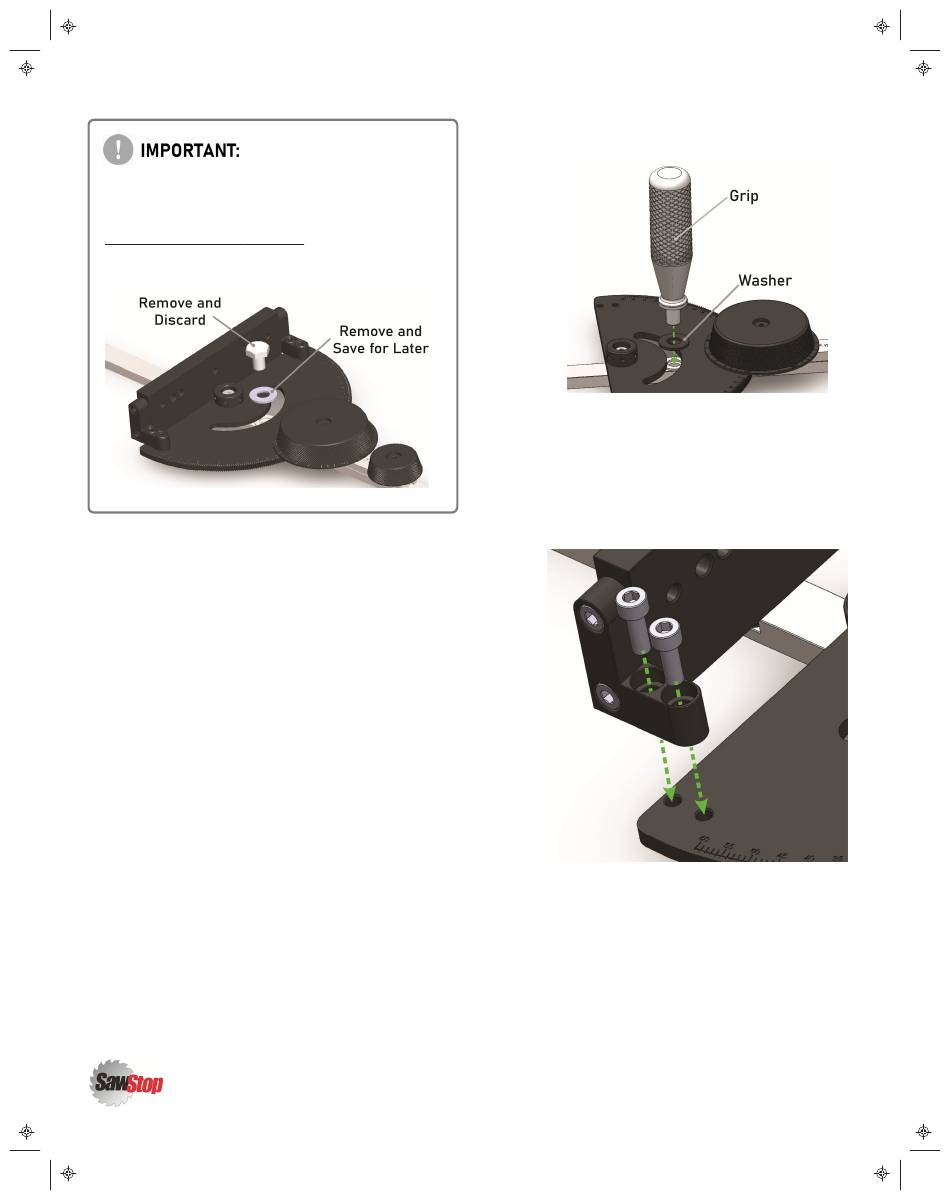

The main assembly of your miter gauge is secured
from movement during shipping with a hex head bolt.
This bolt can be removed and discarded. However,
DO NOT DISCARD THE WASHER! Set it aside for
assembly (described later in this manual).

REQUIRED TOOLS

2.5mm Hex Wrench (included)
l
3mm Hex Wrench (included)
l
4mm Hex Wrench (included)
l

INSTALL THE GRIP

1. Place the flat washer you removed during
unpacking as shown.
|
6 Revolution MIter Gauge Owner's Manual
2. Thread the Grip into the hole on the miter bar by
turning the Grip clockwise.

INSTALL THE VERTICAL FACEPLATE

1. Attach the Vertical Faceplate to the Miter Gauge
Body using the four Socket-Head Bolts from the
hardware bag and the included 4mm hex wrench.
Do not fully tighten.
