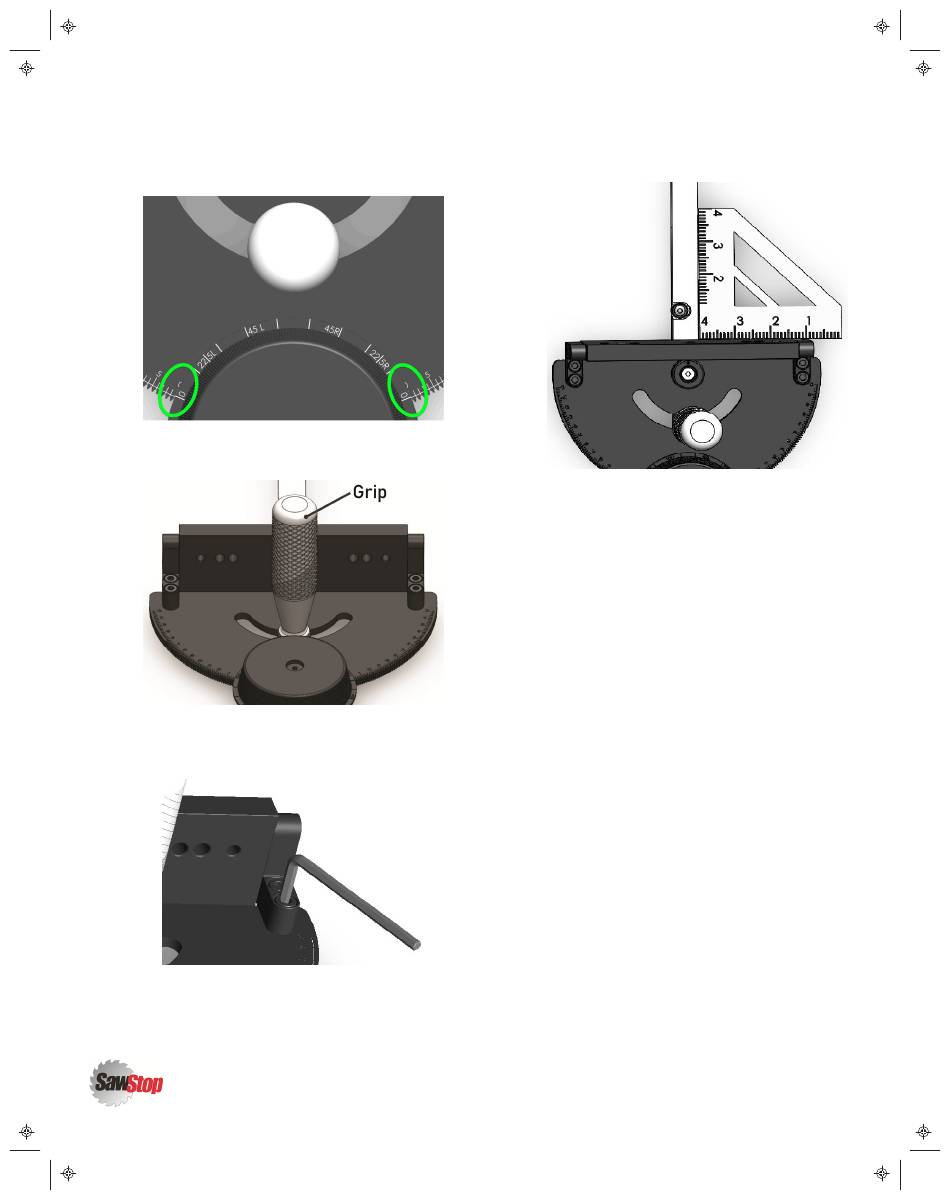

2. Loosen the Grip slightly and set the miter angle to
0° by rotating the Miter Angle Dial . To set the miter
angle, read the protractor marking at the edge of
the Miter Angle Dial .)
3. After selecting 0°, tighten the Grip by rotating it
clockwise.
4. Loosen the four Socket-Head Bolts slightly that
secure the Vertical Faceplate to the Miter Gauge
Body .
5. Use a precision square against the side of the
miter bar without expansion discs to square the
|
22
Revolution MIter Gauge Owner's Manual
Vertical Faceplate as you re-tighten the four
Socket-Head Bolts you loosened in step 4. Use the
included 4mm hex wrench to tighten the bolts.
6. Double-check your miter gauge for square after
re-tightening the Socket-Head Bolts . Loosen the
bolts and re-adjust as necessary until you are
satisfied with the accuracy.
7. When finished, replace the Fence Assembly onto
the Miter Gauge Body .
8. Verify that all fasteners adjusted during this
process are tight.
SQUARE THE MITER GAUGE WITH YOUR
SAW
1. Confirm the blade of your saw is parallel to the
miter gauge slot. Adjust the saw trunnion or table
as needed per the instructions provided by the
manufacturer of your tool.
