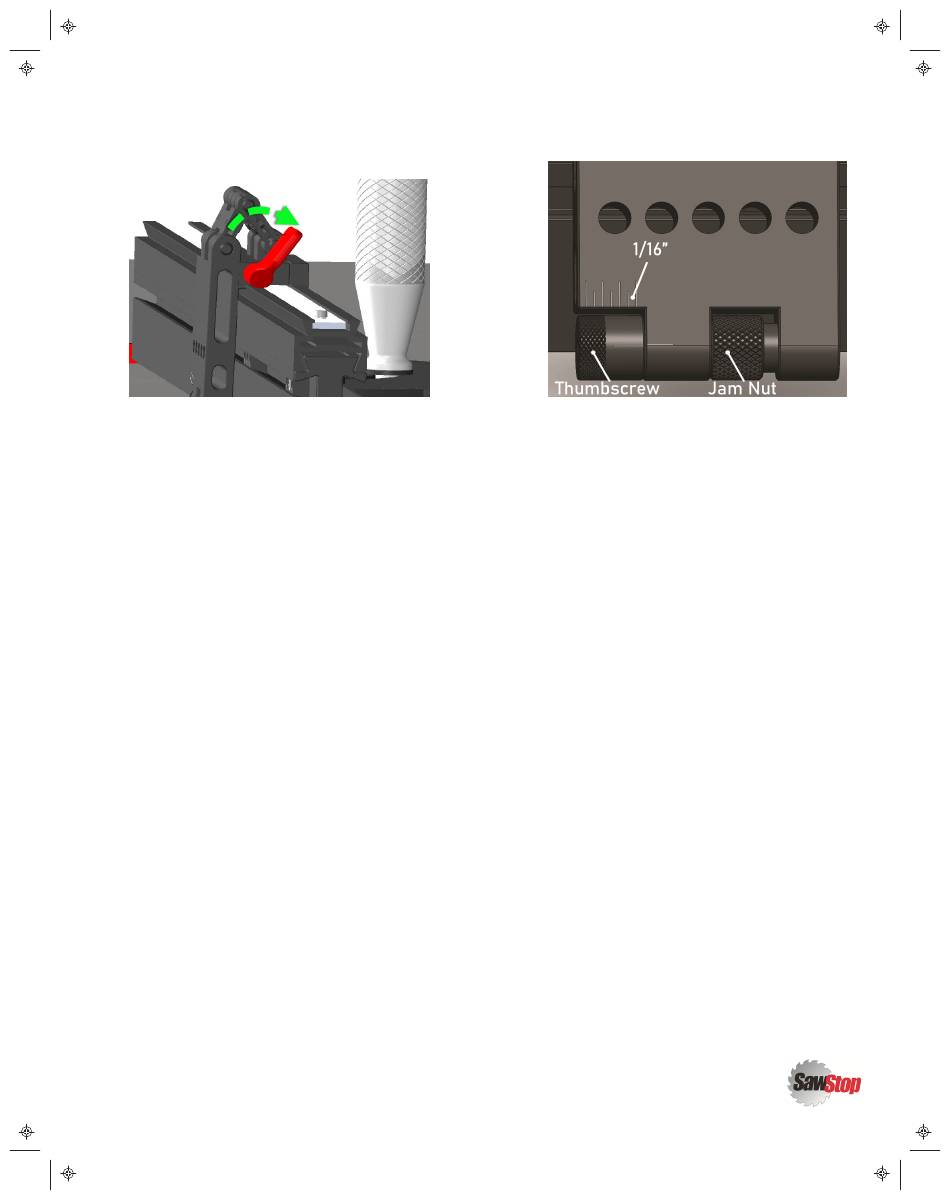

3. Move the red flip stop release lever to the 2 o'clock
position as shown to secure the Flip Stop
Assembly in place.
4. The Flip Stop Assembly employs a unique double-
jointed hinge*. Ensure that the flip stop is folded
down as shown above so that it is flush to the face
of the main fence extrusion.
* The double-jointed hinge design can accommodate an
optional, user-provided, sacrificial fence attached to the
main Fence Assembly extrusion. See USING THE FENCE
SYSTEM on page 14 for instructions.
POSITION THE FLIP STOP - FINE
ADJUSTMENTS
The fine adjustment feature for the flip stop of your
Revolution Miter Gauge offers a greater precision not
achievable with the method for positioning the Flip Stop
Assembly described above. Use the following steps to take
advantage of this precision feature.
1. Set a rough position for the Flip Stop Assembly
following the instructions in the Position the Flip
Stop - Gross Adjustments section above.
2. Back off the knurled Jam Nut on the precision
adjustment by turning it counter-clockwise.
3. By rotating the black, knurled Thumbscrew at the
tip of the fine adjustment shaft, you can shift the
cut length to be shorter.
There are four horizontal markings around
l
the circumference of the adjustment barrel
at 1/64" intervals.
One full revolution of the fine adjustment
l
barrel = 1/16".
Reference the vertical 1/16" markings on the
l
flip stop just above the Thumbscrew to help
count how many full revolutions from the
flush position you have turned the
adjustment barrel.
4. When the desired adjustment is set, re-tighten the
jam nut that you loosened in step 2.
Revolution MIter Gauge Owner's Manual
|
17
