4. Attach the sacrificial piece you've prepared using
two M6 bolts (not included). Insert the bolts
through the counter-sunk holes in your sacrificial
fence, then thread the bolts into the center hole of
the Sliding Wedges you placed in Step 1.

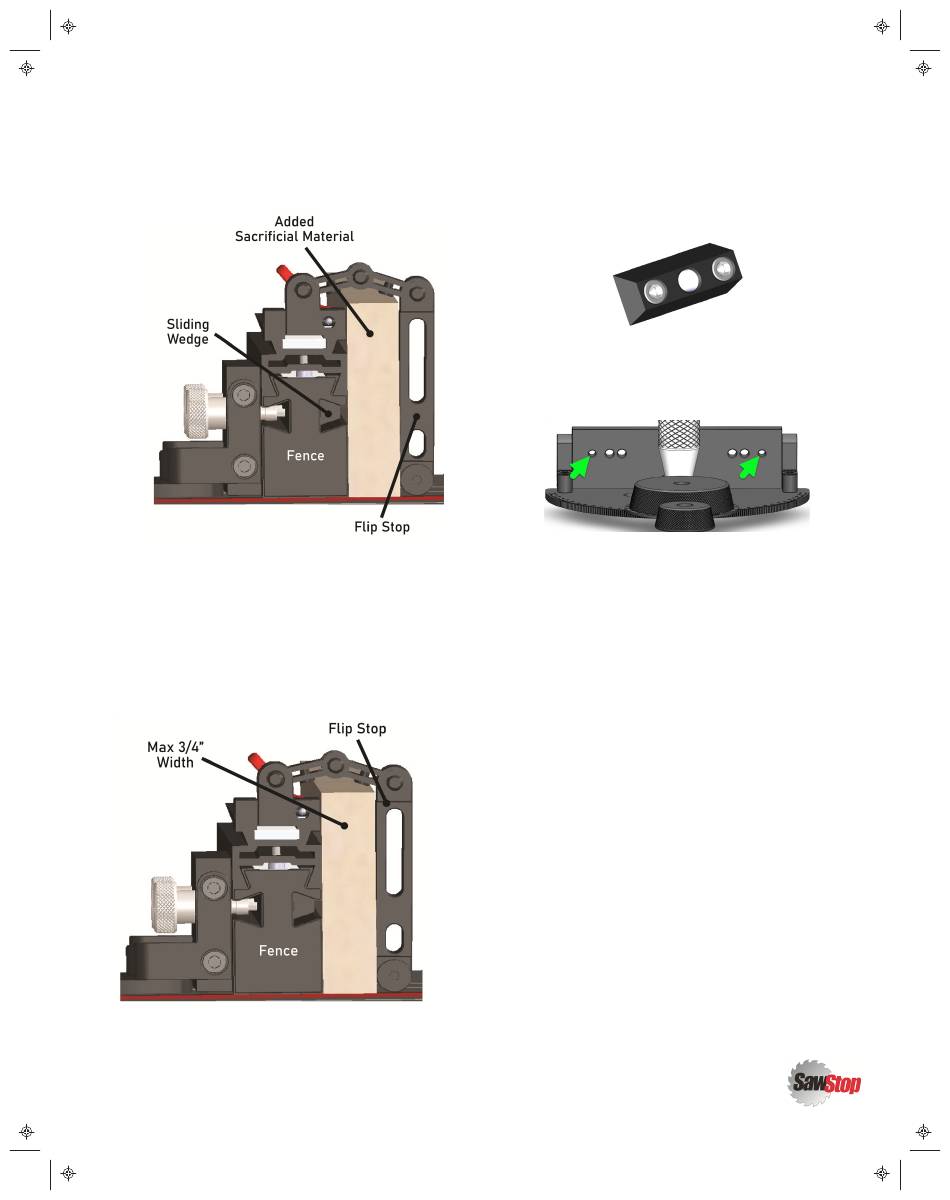

Using the Adjustable Flip Stop With a Sacrificial
Fence
Once you've added sacrificial fence material as described
above, the adjustable flip stop can still be used thanks to its
unique double-hinge joint design. Adjust the joints of the
hinge as shown to conform to the additional thickness
affixed to the factory fence.
More About Shop-Built Jigs and Fixtures
Beyond the auxiliary fence example discussed here,
consider attaching your other shop-built fixtures using
spare Sliding Wedges (included) by the same methods
described above.
Alternatively, you can remove the Fence Assembly and
attach your DIY fixtures and jigs directly to the Miter Gauge
Body using M6x1.0 bolts threaded into outermost holes in
the Vertical Faceplate .
(M6 bolts not included.)
CALIBRATION
Your Revolution Miter Gauge comes precision made by
SawStop and is fully functional straight from the box. With
the need for various fine adjustments to be made by the end
user in mind, your miter gauge has been engineered to be
calibrated in various ways. Instructions for these
adjustments are discussed below.
SQUARE THE MITER ANGLE
The diameter of the holes in the L brackets are slightly
oversized to provide for precise positioning (squaring) of
the Vertical Faceplate with the rest of the assembly. If you
find that the miter angle precision is incorrect, the play
available here gives the means to true the miter angle
using the instructions below.
1. Remove the Fence Assembly from the Miter Gauge
Body .
Revolution MIter Gauge Owner's Manual
|
21
