earlier in this manual, with the exception of the Fence
Assembly orientation. Instead, the silver, knurled knob at
the end of the fence should be positioned at the right
(furthest from the blade) before guiding the slot in the fence
onto the Sliding Wedges .
Once the Fence Assembly has been reversed as described
above, fold the flip stop over so that it is once again forward
facing.

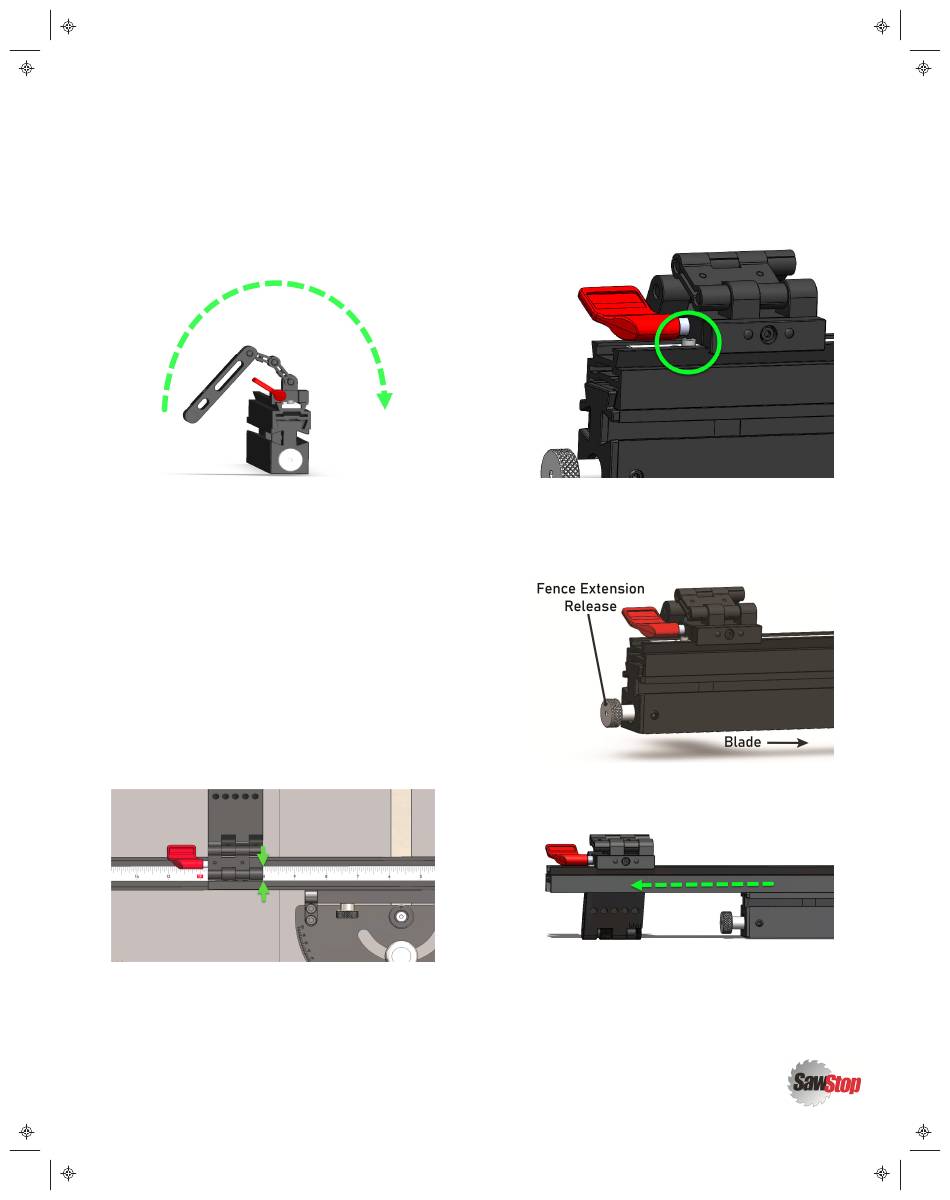

USING THE FENCE EXTENSION

The fence extension works in tandem with the adjustable
flip stop. To ensure you get full advantage of these features,
be sure to read and understand both this chapter and the
chapter for POSITION THE FLIP STOP - GROSS
ADJUSTMENTS on the next page.
The fence extension is used in conjunction with the flip stop
to give you repeatable, fixed-length cuts that are longer
than would be possible without the extension.
When using the flip stop without extending the fence, you
can make fixed-length cuts from 0-19.5". In this range, the
measurement for the flip stop setting is read at the edge of
the adjustable flip stop carrier that is closest to the blade.
The fence extension comes into play when fixed-length cuts
longer than 19.5" are required. Follow the steps below to set
your flip stop and fence for this extended cut capacity.
1. Move the Flip Stop Assembly across the top rail of
the Fence Assembly until it is against the small
cap screw near the end of the fence rail.
2. Move the red flip stop release lever to the 2 o'clock
position to secure the Flip Stop Assembly in place.
3. Loosen the silver Fence Extension Release by
rotating it counter-clockwise.
4. Draw the upper portion of the Fence Assembly
extrusion to the side to extend the fence.
Revolution MIter Gauge Owner's Manual
|
15
