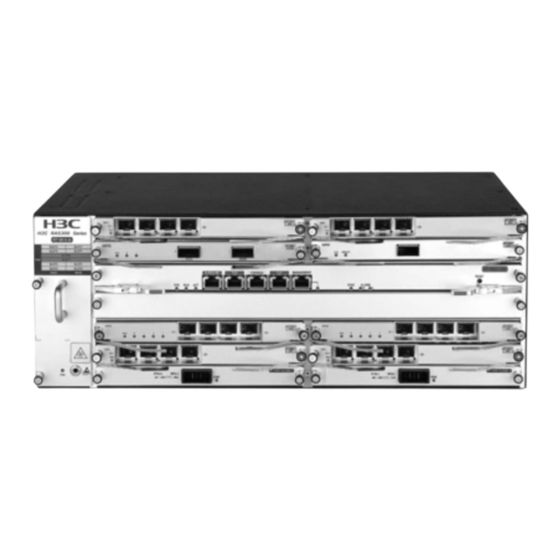

- Page 1 H3C RA5300 Router Interface Module Manual New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W100-20230916...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This document describes the appearance, LEDs, interface specifications, interface cable connections for HRIC interface modules. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: • Network planners. •...
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 HRIC modules ························································································· 1-1 HRIC-CLGQ2 ·················································································································································· 1-1 HRIC-CQ1F····················································································································································· 1-2 HRIC-LGQ2F ·················································································································································· 1-3 HRIC-LGQ1····················································································································································· 1-5 HRIC-YGS4····················································································································································· 1-6 HRIC-YGS2····················································································································································· 1-7 HRIC-XP8 ······················································································································································· 1-9 HRIC-XP8-H·················································································································································· 1-10 HRIC-XP4 ····················································································································································· 1-11 HRIC-GP8 ····················································································································································· 1-13 HRIC-GT8 ····················································································································································· 1-14 2 Connecting interface cables ····································································· 2-1 Connecting cables to fiber ports······················································································································... -
Page 7: Hric Modules
HRIC modules The RA5300 router uses modular design and supports a wide range of HRIC modules. These HRIC interface modules provide Ethernet fiber ports and copper ports of different data rates. HRIC-CLGQ2 Introduction The HRIC-CLGQ2 is a 100/50 Gbps Ethernet optical interface module. It can operate in 2-port 50GBASE-R mode or 1-port 100GBASE-R mode. -
Page 8: Hric-Cq1F
Figure1-2 HRIC-CLGQ2 module LEDs (1) Running status LED (RUN) (2) 50G/100G Ethernet port LED (0) (3) 50G Ethernet port LED (1) Table1-2 LED description Status Description Steady green The module is operating correctly. Flashing green (eight times The module is being identified. per second) Flashing green (once per The module is being initialized. -
Page 9: Hric-Lgq2F
NOTE: For the transceiver modules available for the interface module, see "Transceiver modules." Front panel and LEDs Figure1-3 HRIC-CQ1F module front panel (1) Ejector lever (2) 100GE fiber port (3) Captive screw Figure1-4 HRIC-CQ1F module LEDs (1) Running status LED (RUN) (2) 100G Ethernet port LED (LINK/ACT) Table1-4 LED description Status... - Page 10 Interface specifications Table1-5 Interface specifications Item Description Port 2 QSFP28 ports Connector Interface standard 50GBASE-R Operating mode 50 Gbps, full duplex NOTE: For the transceiver modules available for the interface module, see "Transceiver modules." Front panel and LEDs Figure1-5 HRIC-LGQ2F module front panel (1) Ejector lever (2) 50GE fiber ports (0 and 1) (3) Captive screw...
-
Page 11: Hric-Lgq1
Installation method of transceiver modules and optical fibers For the installation method of transceiver modules and optical fibers, see "Connecting cables to fiber ports." HRIC-LGQ1 Introduction The HRIC-LGQ1 is a 1-port 50 Gbps Ethernet optical interface module. It provides one QSFP28 port and the port is a Layer 3 port. -
Page 12: Hric-Ygs4
Status Description times per second) Flashing green (once per The module is being initialized. second) Steady yellow The module has failed initialization. Steady green A 50 Gbps link is present. LINK/ACT Flashing green The port is receiving and sending data at 50 Gbps. No link is present. -
Page 13: Hric-Ygs2
Figure1-10 HRIC-YGS4 module LEDs (1) Running status LED (RUN) (2) 25G Ethernet port LEDs Table1-10 LED description Status Description Steady green The module is operating correctly. Flashing green (eight times per The module is being identified. second) Flashing green (once per The module is being initialized. - Page 14 NOTE: For the transceiver modules available for the interface module, see "Transceiver modules." Front panel and LEDs Figure1-11 HRIC-YGS2 module front panel (1) Ejector lever (2) 25GE fiber ports 0 and 1 (3) Captive screw Figure1-12 HRIC-YGS2 module LEDs (1) Running status LED (RUN) (2) 25G Ethernet port LEDs Table1-12 LED description Status...
-
Page 15: Hric-Xp8
HRIC-XP8 Introduction The HRIC-XP8 is an 8-port 10 Gbps Ethernet optical interface module. It provides eight SFP+ ports and all ports are Layer 3 ports. Interface specifications Table1-13 Interface specifications Item Description Port 8 SFP+ ports Connector Interface standard 10GBASE-R Operating mode 10 Gbps, full duplex NOTE:... -
Page 16: Hric-Xp8-H
Status Description Steady yellow The module has failed initialization. Steady green A 10 Gbps link is present. Flashing green The port is receiving and sending data at 10 Gbps. Port LEDs (0 to Steady yellow A 1000 Mbps link is present. Flashing yellow The port is receiving and sending data at 1000 Mbps. -
Page 17: Hric-Xp4
Figure1-16 HRIC-XP8-H module LEDs (1) Running status LED (RUN) (2) 10G Ethernet port LEDs Table1-16 LED description Status Description Steady green The module is operating correctly. Flashing green (eight times The module is being identified. per second) Flashing green (once per The module is being initialized. - Page 18 Item Description Operating mode 10 Gbps, full duplex NOTE: For the transceiver modules available for the interface module, see "Transceiver modules." Front panel and LEDs Figure1-17 HRIC-XP4 module front panel (1) Ejector lever (2) 10GE fiber ports 0 to 3 (3) Captive screw Figure1-18 HRIC-XP4 module LEDs (1) Running status LED (RUN)
-
Page 19: Hric-Gp8
Installation method of transceiver modules and optical fibers For the installation method of transceiver modules and optical fibers, see "Connecting cables to fiber ports." HRIC-GP8 Introduction The HRIC-GP8 is an 8-port 1000BASE-X Ethernet optical interface module. It provides eight SFP ports and all ports are Layer 3 ports. -
Page 20: Hric-Gt8
Status Description per second) Flashing green (once per The module is being initialized. second) Steady yellow The module initialization has failed. Steady green A 1000 Mbps link is present. Flashing green The port is receiving and sending data at 1000 Mbps. Port LEDs (0 to Steady yellow A 100 Mbps link is present. - Page 21 Front panel and LEDs Figure1-21 HRIC-GT8 module front panel (1) Ejector lever (2) GE copper ports 0 to 7 (3) Captive screw Figure1-22 HRIC-GT8 module LEDs (1) Running status LED (RUN) (2) Gigabit Ethernet port LEDs Table1-22 LED description Status Description Steady green The module is operating correctly.
-
Page 22: Connecting Interface Cables
LC-type or MPO-type connectors to the transceiver module. For more information about interface module and transceiver module compatibility, see H3C 5G IPRAN Access Router Transceiver Module Compatibility Matrix. -
Page 23: Connecting Cables To Ethernet Copper Ports
LC connector—Align the connector with the transceiver module and push it into the transceiver module slightly until it clicks into the place, as shown in Figure2-1. MPO connector—Insert the MPO fiber connector horizontally into the transceiver module. Push the MPO fiber connector into the transceiver module slightly until it clicks into the place, as shown in Figure2-2. - Page 24 Category-5 enhanced cables feature low attenuation and crosstalk, providing higher attenuation to crosstalk ratio (ACR), less delay error and higher performance than category-5 cables. Category-5 enhanced cables are mainly used in 1000 Mbps Ethernet networks. Category-6 cables provide a transmission frequency of 1 MHz to 250 MHz, and improve the performance on crosstalk and return loss.
- Page 25 interface module supports MDI/MDIX autosensing, you can use a straight-through cable or crossover cable to connect the port. Examine the status LED for the Ethernet port to verify the cable connectivity. For the description of the port LEDs, see the corresponding interface module part in this manual.
- Page 26 Contents 2 Appendix A Interface module list ······························································ 2-1...
- Page 27 Appendix A Interface module list The full names and abbreviations of the interface modules are listed below. To simplify description, abbreviations are typically used to identify the interface modules. Table2-1 Interface module list Product code Abbreviation Height RT-HRIC-CLGQ2 HRIC-CLGQ2 0.5 U RT-HRIC-CQ1F HRIC-CQ1F 0.5 U...
