Garnet SeeLevel 710-AR Manual

HOLDING TANK MONITOR
SENDER MANUAL
710-AR
CANADA USA
Garnet Instruments Ltd. Garnet US Inc.
286 Kaska Road 5360 Old Granbury Road
Sherwood Park, AB T8A 4G7 Granbury, TX 76049
SeeLeveL Sender Installation Manual 710-AR / 710-ES2
| 710-ES2
INTRODUCTION
The SeeLeveL Senders are used with SeeLeveL Tank Monitoring systems
that can monitor up to seven tanks and now has more efficient power
consumption. The senders are mounted on the outside of the holding
tanks and can be stacked to fit taller tanks. Depending on tank height and
desired resolution, Garnet offers two different sender options. They are
not compatible with metal holding tanks. They work on most plastic or
polyethylene holding tanks that contain water-soluble fluids.

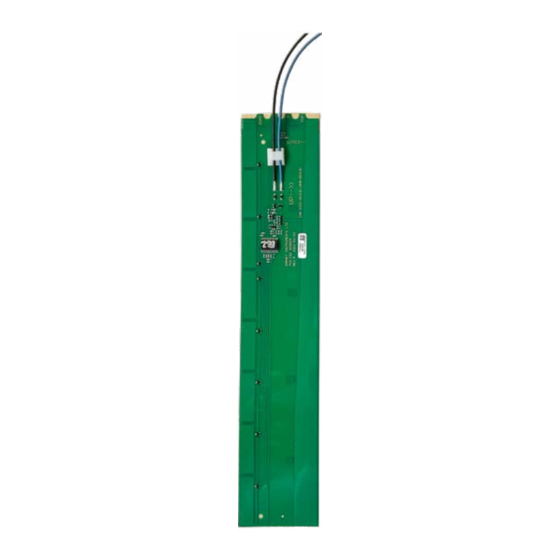

The 710-AR is our standard sender. This model is 9" high (not including
tabs) and can measure tanks from as short as 3.5" up to as high as 10.5"
using a single sender, and up to 19.5" with double-stacked senders and
will accommodate the majority of holding tanks. The higher resolution is
1/4" which is optimal for low-profile tanks.
The 710-ES2 sender is an enhanced version of the 710-ES. This model is
12" high (not including tabs) with a resolution of 3/8" and can measure
tanks from 5.5" up to 14" as a single, and up to 26" with double-stacked.
See more information about sender lengths on page 3.
The communication protocol used between our senders and displays is
proprietary allowing us to control the accuracy and functionality of our
systems ensuring our customers experience reliable operation.
SAFETY SYMBOLS INFORMATION
NOTE: expands on information for any procedures.
W
CAUTION: explains safety information that could cause
W
damage to the product, including data loss.
WARNING: explains dangers that might result in
W
personal injury or death.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
710-AR-ES2 Manual_v1.2 - 25-Oct-2023
Page 1
