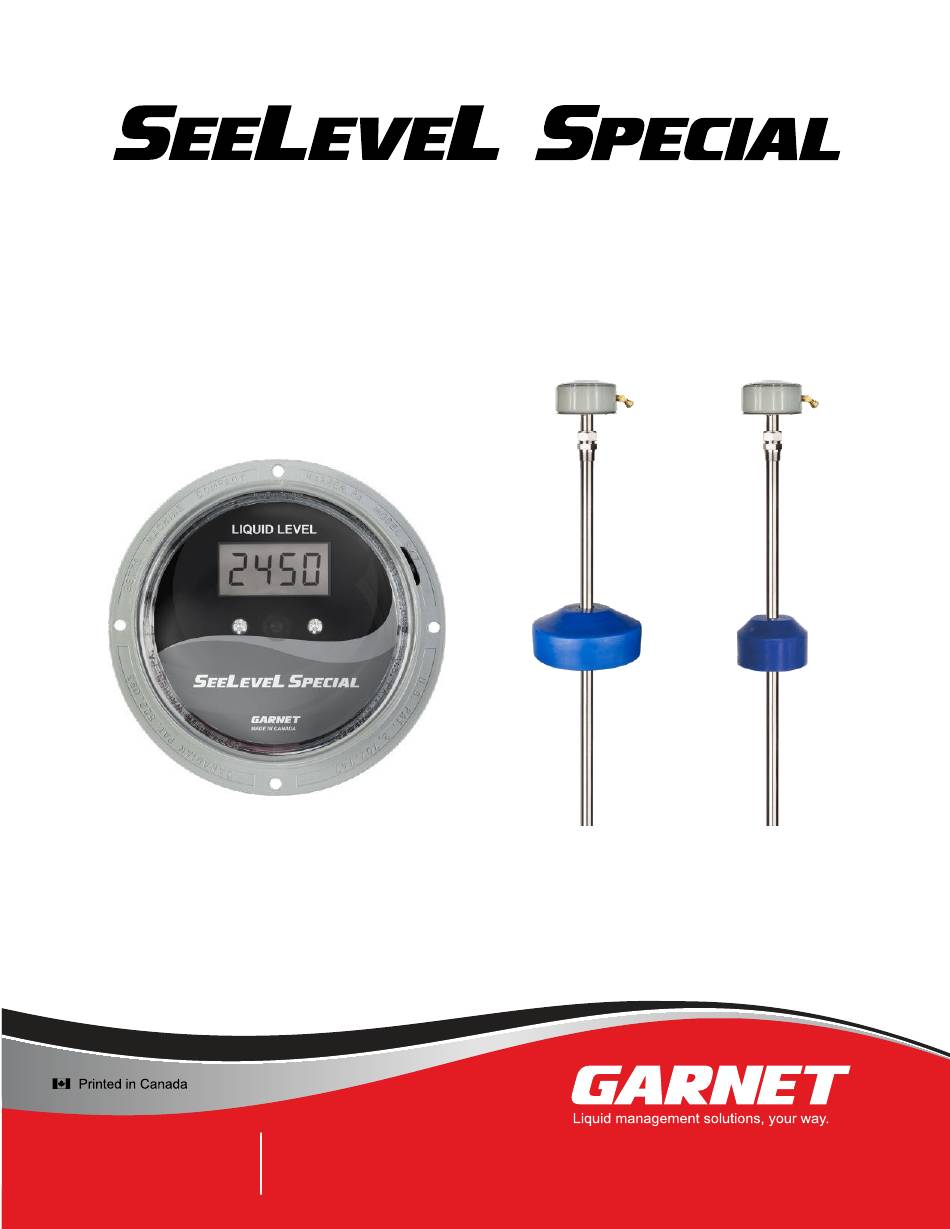

- Page 1 TANK LEVEL GAUGE FOR TRUCKS Installation & Operation Guide 810-TX 808-P2 810-X CANADA Garnet Instruments Ltd. Garnet US Inc. garnetinstruments.com 286 Kaska Road 5360 Old Granbury Road 1-800-617-7384 Sherwood Park, AB T8A 4G7 Granbury, TX 76049...
-
Page 2: Table Of Contents
2024 Garnet Instruments. All rights reserved. No part of this publication may be reproduced, Transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of Garnet Instruments. Information in this manual is subject to change without notice and does not represent a commitment on the part of Garnet. -
Page 3: Introduction
1.1 Overview The SeeLeveL 808-P2 Display is a gauge mounted on trucks, providing real-time liquid level readings from the sender bar. When utilized with the 810-TX sender bar, it additionally monitors the temperature inside the tank. It facilitates safe loading with controls for a customizable warning alarm, and emergency overfill shutdown protection. It can be used alone, or in conjunction with Garnet’s SpillStop or MultiRack systems. Figure 1.1.2a 808-P2 (Rev M) Display 1.2 Features and Benefits • Works with the 810-X or 810-TX sender bar (installed within the tank). -
Page 4: Quick Guide
2.0 QUICK GUIDE 2.1 Operation The sender bar is installed vertically inside the tank. As the liquid level changes, the float will move up and down the sender bar. Magnets within the float allow the sender to accurately measure the position of the float, and translate that into the liquid level. Embedded temperature sensors also measure the liquid temperature. The liquid level and temperature are continuously transmitted to the SeeLeveL gauge through the fiber optic cable. The gauge displays the volume of liquid within the tank based on this reading. The temperature of the liquid can be viewed by pressing the button on the side of the display (810-TX only). If the button is held down for 2 seconds, the battery status of the sender bar is displayed. Every tank shape is different, and the display can be set to common volumetric units such as gallons, cubic meters, or barrels. To calibrate the SeeLeveL for your tank, please see the 817-USB SeeLeveL Truck Gauge Programmer documentation. -
Page 5: View Firmware Revision, Mode And Temperature (Rev M)
ALARM FUNCTIONS ALARMS TYPE FUNCTION Used only when connected to a SpillStop for Enhanced overfill protection. Alarm 1 For SpillStop Use Programmable set point. (Green wire). Programmable alarm. Will toggle on/off at the set point. Can be bypassed. While triggered if the bypass button is pressed the alarm Alarm 2 Warning Horn condition will be latched until the tank level is brought below the set point for Alarm 3 (reset). -
Page 6: Installation Guide
3.0 INSTALLATION GUIDE 3.1 Sender Bar Assembly Figure 3.1.1a Sender Bar Assembly 808-P2 SeeLeveL Special | V13.0... -
Page 7: Tank Preparation
3.2 Tank Preparation 3.2.1 Determine sender bar mounting position 1. Select a central location in the tank for mounting the sender bar, ensuring proximity to the tank’s midpoint and allowing space for the head at the top. (See Figure 3.2.1a) 2. -
Page 8: Cutting The Bar
Figure 3.2.2b Float Support Fabrication 3.2.3 Cutting the Bar NOTE: The sender bar needs to be cut to length for specific trailers. Contact a sales or service rep for cut options. 3.2.4 Sender Bar Installation 1. Guide the sender bar through the NPT collar. Ensure the compression fitting is on the bar, then through the float anchor support until it hits the bottom of the tank. 2. Raise the bar 2” up from the bottom of the tank to accommodate tank flex that could mechanically interfere with the bottom of the bar. (See Figure 3.2.4a) Figure 3.2.4a Install Sender Bar CAUTION: Installing the bar less than 2”... - Page 9 Select a location for the display. It should be easy to see and out of direct road spray and protected from driving rain. The display enclosure should be mounted using the mounting flange holes. If the holes are not pre-drilled in the display enclosure, drill holes into the enclosure close enough to the base to avoid contacting the lid flange (See Figure 3.3.4b).
-
Page 10: Connect The Airline Hose
3.3.5 Connect the Airline Hose 1. At the lowest point in the airline, insert a T-fitting with approximately two feet of 1/4” airline hanging down to create a drain/vent for any moisture that may enter or build-up in the system. 2. If a T-fitting is not practical, install a fitting into the bottom of the display enclosure and route the 2 feet of 1/4” airline hose from there. (See Figure 3.3.5a) Figure 3.3.5a Airline Hose Options 808-P2 SeeLeveL Special | V13.0... -
Page 11: Install Fiber Optic Cable
3.4 Install Fiber Optic Cable 3.4.1 Preparation of Fiber Optic Cable 1. Use a piece of 1/4” airline hose to protect the black fiber. With the airline hose straight, insert and feed the fiber optic cable through the hose, leaving 12“ extra at each end (See Figure 3.4.1a) CAUTION: Maintain the largest possible radius within the enclosure. Bends should never exceed 90°; sharp bends or kinks will reduce the amount of signal passed. Figure 3.4.1a Fiber Optic Cable Inserted Through Airline Hose 3.4.2 Connect the Fiber to Display Enclosure 1. -
Page 12: Install Airline On The Truck
3.4.5 Install Airline on the Truck 1. Route the 1/4” airline from the sender bar head to the display. Avoid bends tighter than 90° and do not kink. Airline can be routed either to the side of the tank to the display (See Figure 3.4.5a) (Option 1), or to the back of the tank, down and then to the display (Option 2). - Page 13 2. Move the float on the bar up and down to ensure proper functioning. (See Figure 3.5.6b) Figure 3.5.6b Verifying Bar Operation 3. Correct operation is confirmed when there is engagement every 1/3 of an inch for 810-X, or 1/4 of an inch for 810-TX, on the 817-USB Truck Gauge Programmer. (See Figure 3.5.6c) Figure 3.5.6c Fiber from Sender Bar plugged into 817-USB Truck Gauge Programmer 808-P2 SeeLeveL Special | V13.0...
-
Page 14: Wiring Diagrams
3.6 Wiring Diagrams 3.6.1 Common Configuration AUTOMATIC ALARM WIRING DIAGRAM CONSTANT 12 VOLT POWER SOURCE OPTIONAL SYSTEM STATUS WARNING HORN – LAMP (USE OR LIGHT CLEARANCE TYPE LAMP) SHUTDOWN RELAY Shown wired in normally open (N.O.) configuration ALARM RESET SWITCH WHITE WIRE YELLOW WIRE PURPLE WIRE... -
Page 15: Maintenance And Service Information
4.0 MAINTENANCE AND SERVICE INFORMATION 4.1 O-Ring The 808-P2 relies on an O-ring to keep water out of the enclosure. To ensure long term reliability of the display, this O-ring must be kept lubricated with a silicone based grease. Check the display regularly and apply grease as needed. -
Page 16: Troubleshooting Guide
5.0 TROUBLESHOOTING GUIDE 5.1 Diagnostic Flowchart Refer to a separate document called “808-P2 troubleshooting flow chart”. The flowchart can be used to perform basic troubleshooting on the SeeLeveL gauge system. Some steps may require the use of an 817-USB truck gauge programmer. More advanced testing is also covered in the 817-USB documentation. 5.2 FAQs 5.2.1 Why does my display read “No L”? no L = no Light condition. The display is working, but either the fiber is unable to send the signal from the bar or the bar is no longer sending the signal through the fiber. -
Page 17: System Specifications
6.0 SYSTEM SPECIFICATIONS DISPLAY Material Enclosure: PBT plastic Lid: polycarbonate Size Enclosure size: 152 mm (6”) diameter, 67 mm (2⅝”) deep. Display type Wide temperature LCD, 4 digit, 7 segment Display size 12.7 mm (½”) high digits External power Light behind the LCD is powered by 12 Vdc truck power Powered by a lithium battery, which is not field replaceable but is replaceable, Battery power with a lifetime of approximately 10 years... -
Page 18: Parts List For Installation
6.1 Parts List for Installation 808-P2 SeeLeveL Special | V13.0... -
Page 19: Safety Information
The information provided in this manual describes typical installation and use cases, but the end-user is responsible to ensure the suitability of the equipment for their application. Garnet Instruments shall not be liable for any ancillary, consequential, direct, or indirect damages arising from the use of their products. This includes but is not limited to the loss of profits, business interruption, loss of product, product contamination, or damage to other related equipment or systems. By purchasing Garnet Instruments products or services the customer acknowledges and accepts the terms outlines in this notice. 808-P2 SeeLeveL Special | V13.0... -
Page 20: Warranty
DISCLAIMER OF WARRANTY ON HARDWARE Garnet Instruments Ltd. warrants equipment manufactured by Garnet to be free from defects in material and workmanship under normal use and service for a period of three years from the date of sale from Garnet or an Authorized Dealer. The warranty period will start from the date of purchase or installation. Under these warranties, Garnet shall be responsible only for actual loss or damage suff ered and then only to the extent of Garnet’s invoiced price of the product. Garnet shall not be liable in any case for labor charges for indirect, special, or consequential damages. Garnet shall not be liable in any case for the removal and/or reinstallation...
