Compak i3 Touch User Manual page 16

11.
MAINTENANCE

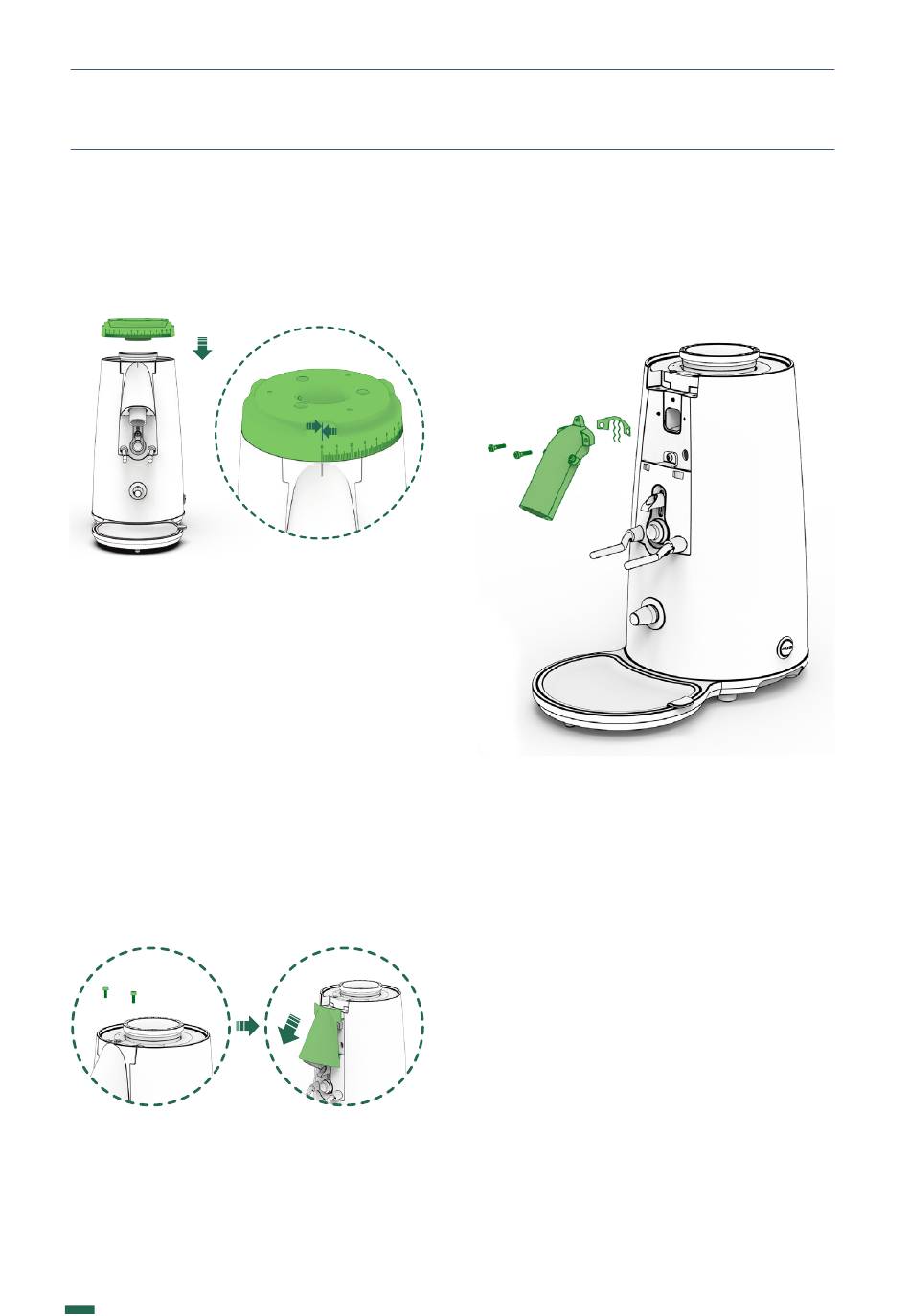

11.3.5 When reassembling the regulator,
match the point 0 close to the position indicator
(Fig. 7) and tight the screws back on.
Fig. 7
11.4. REPLACING THE METAL GRID
The metal grid ensures consistency in the
dosage and minimizes static electricity
12.4.1 Located between the coffee exit chute
and the grinder's body, can be replaced after
removing the regulator from the grinder,
following the instructions up to step 12.3.3.
To remove it, use a Hex Allen key #3 to loosen
the two top screws (Fig. 8), then carefully
remove the plastic cover by following the
direction of the coffee exit chute (Fig. 9).
Fig. 8
16
11.4.2 Using a Hex Allen key #3, loosen
the two screws of the coffee exit chute and
remove it from the grinder body to gain
access to the metal grid (Fig. 10).
Fig. 9
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
Fig. 10
