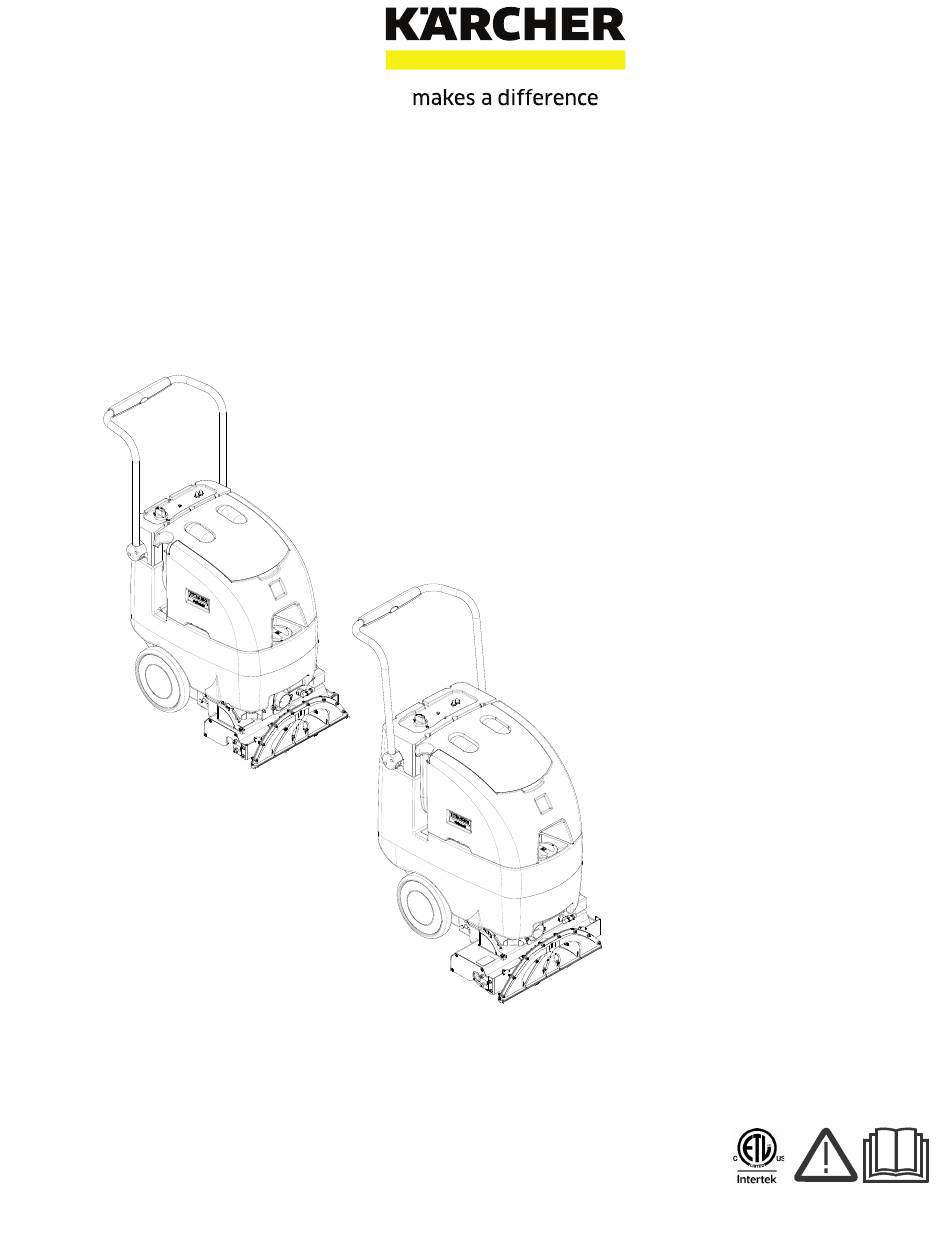

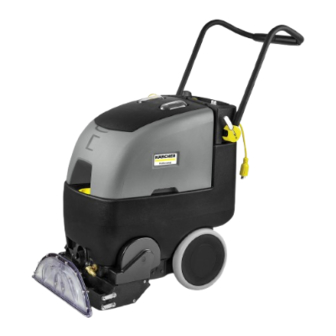

  • Page 1 Admiral X English Admiral XL From Serial Number (Ref No1*) *See Serial Number Page in Spare Parts List or call manufacturer 86457400-A 12/08/23...

  • Page 2: Machine Data Label

    Thank you for purchasing a Kärcher North America product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to : http://warranty.karcherna.com For customer assistance: 1-800-444-7654 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 3: Table Of Contents

    Components - Recovery Tank ....16 Filling the Admiral X / Admiral XL ....17 Machine Operation .

  • Page 4: How To Use This Manual

    Sales Representative: NOTE: The manual part number is located on the lower right corner of the front cover. The model and serial number of your machine is located on the back of the machine. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 5: Safety

    REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapid. 86457210 Label QR Code 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 6: Important Safety Instructions

    Do not operate this machine near flammable fluids, dust or vapors. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. READ AND SAVE THESE INSTRUCTIONS 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 7 L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié. Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement. CONSERVER CES INSTRUCTIONS 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 8: Hazard Intensity Level

    In Flammable or Explosive areas. In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 9 LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les pièces mobiles. Ne pas porter de vêtements, vestes, chemises ou manches vagues lors de l'entretien de la machine. Utiliser les pièces de rechange approuvées par le fabricant. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 10: Electrical

    : si elle ne correspond pas à la prise murale, faites installer une prise adéquate par un électricien qualifié. Utilisez-le uniquement sur des réceptacles protégés GFCI. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 11 Notes 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 12: Operations

    100 PSI, Diaphragm style, Internal 100 PSI, Diaphragm style, Internal Solution Pump bypass bypass Solution Capacity 9 gallons (34.07 ltr) 12 gallons (45.5 ltr) Recovery Capacity 6.5 gallons (24.61 ltr) 9.25 gallons (35.01 ltr) 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 13 à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 14: Controls Locations

    If the machine is operated too slow, the light will slowly flash red. If the machine is operated too fast, the light will quickly flash red. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 15: Components

    13. Recovery Dump Hose. Facilitates draining dirty cleaning solution. 4. Solution Tank. Used to hold cleaning solution. 5. Solution Dump Hose. Facilitates draining excess cleaning solution from solution tank. 6. Recovery Tank Dome. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 16: Components - Recovery Tank

    Operations Components - Recovery Tank 1. Solution Intake Cover. 2. Vacuum Intake Cover. 3. Float Shut-Off. 4. Clean-Out Opening. 5. Lift Handle. With lid removed 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 17: Filling The Admiral X / Admiral Xl

    RECOVERY TANK FILL LINE SOLUTION TANK Filling the Admiral X / Admiral XL NOTE: Use clean bucket of water to fill solution tank. Do not put defoamer, solvents, spotter or prespray chemicals in the solution tank. Do not allow water to spill into vacuum motor inlet. Dry spillage from top of solution tank before replacing recovery tank.
  • Page 18 2. Remove solution tank lid. 3. Fill the solution tank with 9 gallons (34.1 ltr) of water for Admiral X or 12 gallons (45.5 ltr) of water for Admiral XL, that is no more than 140°F (60°C). 140°F (60°C) 4.

  • Page 19: Machine Operation

    (3 m m ) carpet. If circuit breaker trips raise brush to prevent damage to motor or carpet. INCORRECT 3. Turn rotary switch to ‘Deep Extract” mode with brush, vacuum, and pump all on. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 20 If the machine is operated too fast, the light will quickly flash red. Cleaning speed should be adjusted accordingly to ensure optimal cleaning is being achieved. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 21: Cleaning Procedure

    1 ft. (30cm) 3. Push down on handle to raise vacuum shoe and 1 in. brush before moving to the next cleaning pass. (25mm) Overlap brush contact area approximately 1 inch. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 22 Empty recovery tank and/or add defoamer to recovery tank. 6. Use right side of machine for cleaning against walls. 7. After cleaning, turn rotary switch to off position, return brush to storage position and carefully unplug machine. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
  • Page 23 8. To speed drying, use an air mover fan. 9. Empty recovery tank by releasing dump hose. Use a hose with cold water to clean out the recovery tank. Drain solution tank after each use. RECOVERY DRAIN SOLUTION DRAIN 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 24: Accessory Tool Usage

    1 1/2 inch hose cuff into machine hose cuff. 3. Turn rotary switch to Accessory mode. NOTE: Be sure brush is in storage position. 4. Squeeze handle on accessory tool to begin cleaning. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 25: Maintenance

    Check cables for fraying. Check the spray bar (manifold) for damage; replace if broken or bent. Check condition of vacuum shoe and frame for damage. Check overall performance of machine. Check vacuum motor carbon brushes. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 26: Periodic Maintenance

    7. Remove lint and dirt build-up from brush and housing. NOTE: Brush removal. a. Disconnect all power. b. Drain recovery tank. c. Tip the machine back d. Push in on the brush end cap and then downward. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 27: Vacuum Motor Replacement

    4. Locate the vacuum motor wires and disconnect at the connector. Close the solution tank. 5. Remove the (6) screws holding the vacuum motor cover to the solution tank. 6. Remove the vacuum motor. 7. Reverse process to install vacuum motor. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 28: Belt Replacement

    5. Remove the (2) screws that fasten the vacuum shoe links to the brush housing. 6. Remove the (3) screws that fasten the side plate to the brush housing to remove belt. 7. Reverse process to install belt. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 29: Solution Pump Replacement

    4. Remove solution hoses from fittings in pump. 5. Remove the (2) screws that fasten the pump to the frame. 6. Reverse process to install pump. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 30: Troubleshooting

    Call for service. Brush switch off. Turn on brush switch. Brush circuit breaker tripped. Reset circuit breaker. Brush Does Not Spin Brush belt broken. Replace as necessary. Faulty brush motor. Call for service. 8.645-740.0 Manual Operator - Admiral X/Admiral XL...

  • Page 31: Suggested Spare Parts

    JET, MINI PROMAX 9504 Pump 86003630 FLOAT, SHUT-OFF Recovery Tank 86003330 DOME ASM, CLP FAM Recovery Tank 86007970 STRAINER, 3/8 IN. NPT 60 MESH Solution Tank 86135320 BRUSH SET, 120V VAC, WINDSOR Solution Tank 8.645-740.0 Manual Operator - Admiral X/Admiral XL...
