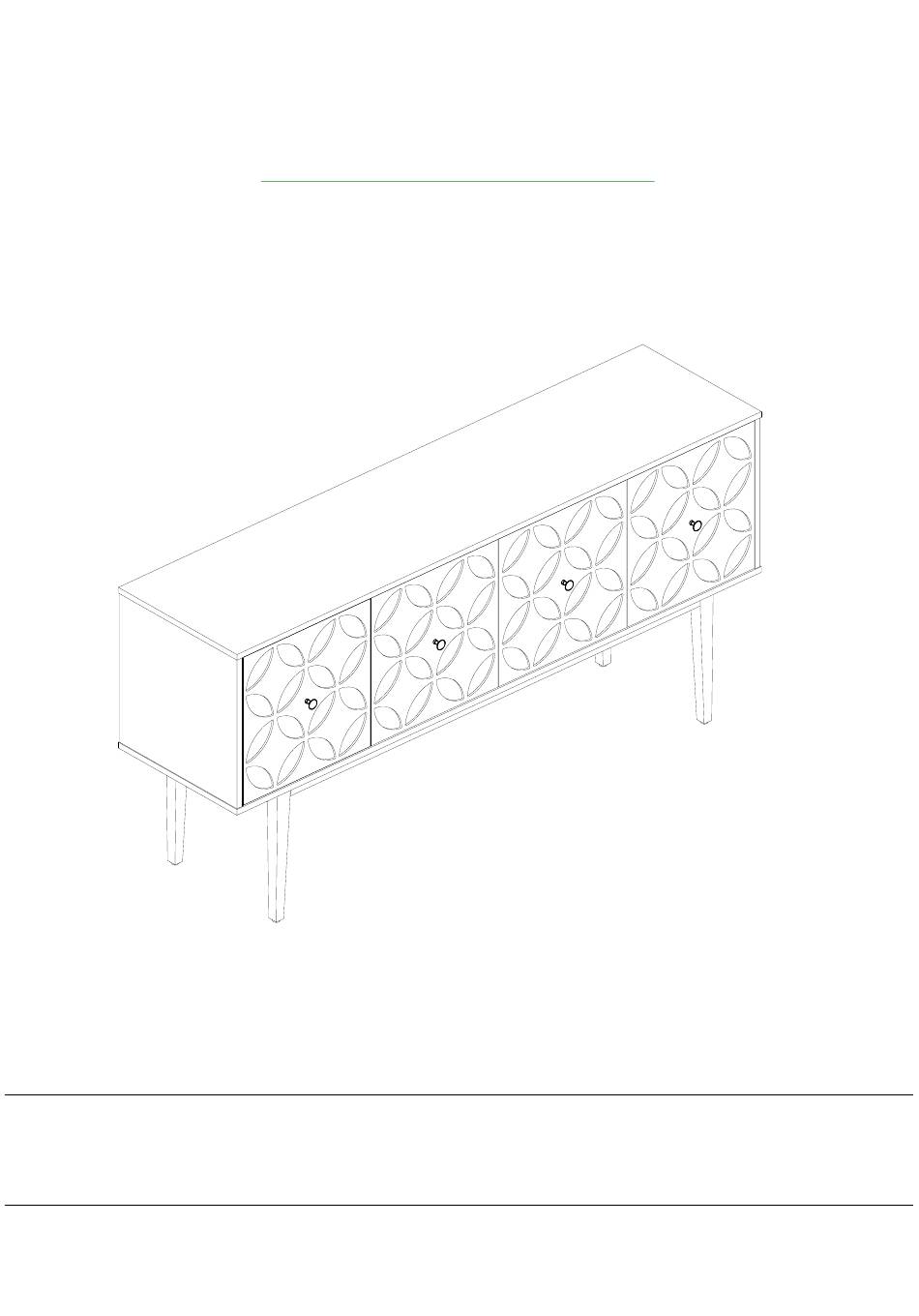

- Page 1 HULALA SBHM0805 ITEM NO. NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/26...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/26... -
Page 4: Parts List
PARTS LIST 04/26... -
Page 5: Hardware List
HARDWARE LIST Ø1/4*1-1/2 Ø3*15mm*7 Ø3.5*15m*7 Ø1/4*1/2 Ø5/32*3/4 Ø1/4 Ø1/4 Ø3.5*35mm*7 TOOL LIST HARDWARE SPARE LIST 05/26... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 1.Use screw #19 to attach the weight parts N to bottom panel B, tighten screws with screwdriver #18. #19x12 Front Back 06/26...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 1.Use screw #2 to attach magnetic catch #12 to the corresponding hole of top panel (A), tighten screw with screwdriver #18 . #2x4 #12x2 07/26...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert panel (C.E.D) into top panel (A),make sure all holes aligned and use allen key #17 to tighten it as picture show. Back Front ＆ E C＆ E 08/26...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert bottom panel (B) into the corresponding hole of preassembled step 3.make sure all holes aligned and use allen key #17 to tighten it as picture show. C&E C&E 09/26...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-5 Open the back panel (F),insert back panel (F) into the groove of preassembled step 4,make sure all holes aligned and use screw #2 to attach them ，tighten screw #2 with screwdriver Open 10/26...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-6 1.Aligned part (M) with leg (L) and then insert part (M) into leg (L),make sure all holes aligned and use bolt #3 & spring washer #9 & plat washer #10 to attach them ， tighten screw #3 with allen key #17 . #10x4 #9x4 11/26...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-7 1.Insert leg (L) into the preassembled step 6 ， make sure all holes aligned and then use bolt #3 & spring washer #9 & plat washer #10 to attach them ， tighten screw #3 with allen key #17 . #10x4 #9x4 Do not fully tighten...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-8 1.Use bolt #5 & spring washer #9 & plat washer #10 to attach preassembled leg to bottom panel (B),make sure all holes aligned and tighten bolt #5 with allen key #17 . L&M Do not fully tighten bolts until all bolts are in position!!! 13/26...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9 1.Attention:After installation, adjust theadjustable leveler to keepthe cabinet balanced . Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . 14/26...
- Page 15 ASSEMBLY INSTRUCTIONS STEP- Insert shelf holder #6 into the corresponding hole of panel (C)&(D)&(E) and then attach panel (G) to it. Shelf holder can be adjusted up or down #6x8 15/26...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-11 1.Use screw #1 to attach hinge #8 to door (H)&(K),tighten screw #1 with screwdriver #18 . #1x8 #8x4 H&K When installing hinge please pay attention to distinguish the category of hinge 16/26...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-12 Use screw #1 to attach hinge #7 to door (I)&(J),tighten screw #1 with screwdriver When installing hinge ， please pay attention to distinguish the category of hinge #1x8 #7x4 I&J 17/26...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-13 1.Use bolt #4 to attach handl e #11 to door (K)&(J)& （ I ） & （ H ） ,tighten bolt #4 with screwdriver #18 . 18/26...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-14 1.Move door (H)&(K) to corresponding position of side panel (C)&(D) ， make sure all holes alignedand use screw #1 to attach them ， tighten screw #1 with screwdriver #18 . 19/26...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-15 1.Move door (I) to corresponding position of middle vertical panel (E) ， make sure all holes aligned and use screw #1 to attach them ， tighten screw #1 with screwdriver #18 . #1x8 20/26...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-16 1.Move door (J) to corresponding position of middle vertical panel (E) ， make sure all holes aligned and use screw #1 to attach them ， tighten screw #1 with screwdriver #18 . #1x8 21/26...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-17 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 22/26...
- Page 23 ASSEMBLY INSTRUCTIONS #13 x2 STEP-18 to attach plastic part #13 to back panel (F),tighten screw #1 with Use screw screwdriver #18 . #1x4 23/26...
- Page 24 ASSEMBLY INSTRUCTIONS #13 x2 STEP-19 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part #13 on the back of panel (F); Drill and insert the expandable screw by hammer. Assemble the part #13 to the wall. Align the hole in the part #13 with the expandable screw #14 , use screw #16 to attach it and tighten by screwdriver #18.
- Page 25 ASSEMBLY INSTRUCTIONS #15 x2 STEP-20 Let the plastic belt #15 pass through bracket #13 and pull tightly. #15x2 25/26...
-
Page 26: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
