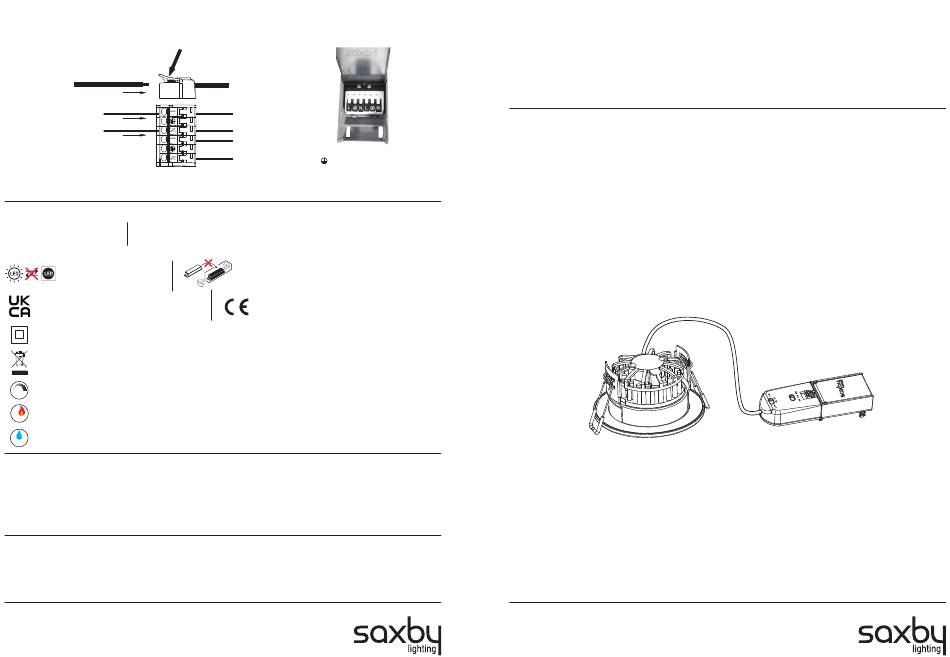

Wiring
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
quick fit connection block in the following way.
SUPPLY
LIFT UP/
PUSH DOWN
INSERT CABLE
Live
Neutral
Check that...
You have correctly identified the wires.
The connections are tight.
No loose strands have been left out of the connection block.
Technical data
Supply
Bulb
220-240 V~, 50 Hz
4/6/8W LED SMD 4CCT, 2700/3000/4000/6000K
Type:
Voltage:
This product contains a light source of energy efficiency class E.
Non-replaceable light source
Conformity with all relevant UKCA Directive
requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is suitable for dimming.
This product is fire rated to 30, 60, 90 minutes.
30
60
90min
This product is rated at IP65 (Below the ceiling), IP20 (Recessed parts).
65
IP
Optional Colour Bezels
There are three optional colour bezels – 90377 (Satin Nickel), 90378 (Chrome) and 92513 (Matt black). Rotate the fixed bezel
one quarter turn anticlockwise and pull it away from the luminaire. Select a new bezel and rotate it one quarter turn clockwise
back onto the front of the luminaire.
Do not remove the rubber seal from the rear of the luminaire outer rim. Ensure that it is secure and correctly positioned to
maintain the IP65 rating.
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
For further information, please visit https://www.lighting-info.co.uk/102630
V1 22/04/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
LIGHT FITTING
Brown or Red (L)
Blue or Black (N)
Brown or Red (L)
Terminations:
Live supply to L = ( Brown or Red )
Blue or Black (N)
Earth to
= ( Green / Yellow )
Neutral to
N = ( Blue or Black )
The terminal block allows for Loop-in / Loop-out
connection.
Non-replaceable control gear
Conformity with all relevant EC Directive
requirements.

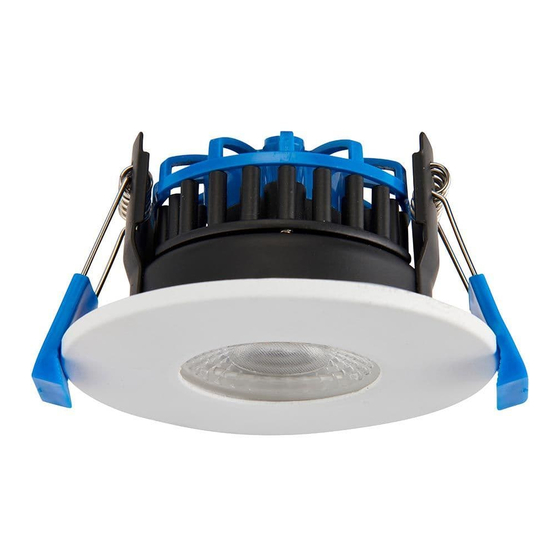

Instruction manual
SHIELDPRO 4CCT
102630
www.saxbylighting.com
