Saxby Lighting shieldLED 400 Instruction Leaflet

Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection
block.

Commissioning

• Connect the fitting to the LED driver.
• The ceiling surface must be flat and smooth to ensure
a good fit.
• Ensure that the LED driver is sitting away from the
unit and has good ventilation.
• Push the spring clips upwards and fit into the ceiling

Fitting/replacing bulbs

• The LED's in this product are non replaceable
• We recommend cleaning with a soft dry cloth. Do
not use solvents or abrasive cleaners as these could
damage the finish.

Recycling advice

Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.

Safety information

For your safety, always switch off the supply before changing lightbulbs, or cleaning.
www.saxbylighting.com
• That the cover over the mains terminals has been
replaced.
hole, then push the unit up until firmly in position,
ensuring that no cables are trapped.
• Ensure that the product is sitting properly in the hole.
• Ensure all rubber seals are correctly in place.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
• Glass parts – Wipe with a damp cloth. Do not use
abrasive materials as these will damage the finish.
Iss.5 05082015
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

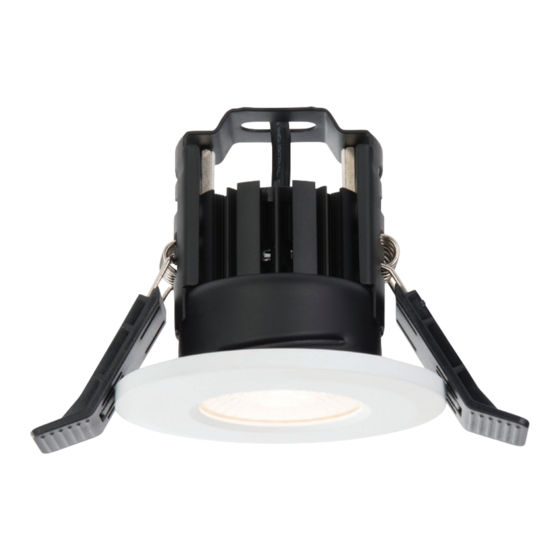

shieldLED 400 Recessed
52183, 52184, 52185, 61062
