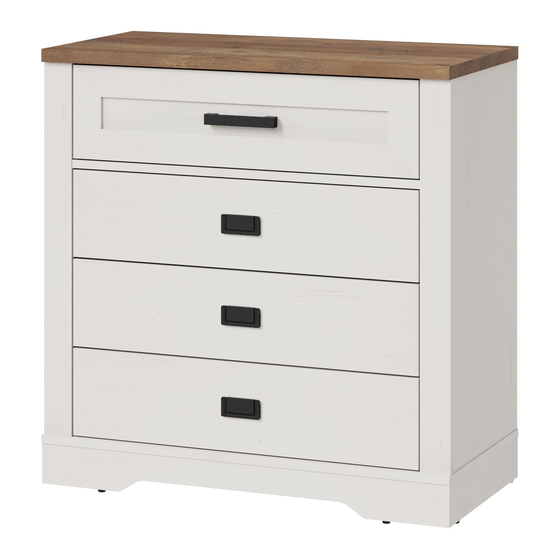

- Page 1 Assembly Instructions W11E5080W W11E5081R...
- Page 4 ●The provided glue(H) is to secure wood dowels(A) in place . Cam lock Wooden dowel Cam bolt When first inserting dowels, locate the Ø15x9mm Ø6x30mm Ø6x35mm appropriate hole for the dowel , place a small amount of glue in the hole and x 30 x 50 x 50...
- Page 5 ●Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches. · Screw cam bolts(B) into panels(3,4). · Insert dowels(A) into panels(3,4). ３...
- Page 6 · Insert dowels(A) into panels(5,7).
- Page 7 2 Person Task · Attach panels(3,4) to panel(5,7). · Insert and secure cam locks(C) to panels(5,7) to lock it.
- Page 8 · Screw cam bolts(B) into panels(2,9). · Insert dowels(A) into panels(8,10).
- Page 9 2 Person Task · Attach panels(2) to parts(3,4) with screws(E).
- Page 10 2 Person Task · Attach panels(8,10) to panel(9). · Insert and secure cam locks(C) to panels(8,10) to lock it. · Attach panels(8,9,10) to panels(2). · Insert and secure cam locks(C) to panels(8,9,10) to lock it.
- Page 11 · Carefully slide part(6) into place along the back of the assembly.
- Page 12 2 Person Task · Screw cam bolts(B) into panel(1). · Attach panel(1) to panel(3,4). · Insert and secure cam locks(C) to panels(3,4) to lock it.
- Page 13 · Secure parts(F) with screws(G) as per diagram.
- Page 14 x 26 · Screw cam bolts(B) into panels(12,15). · Insert dowels(A) into panels(13,14).
- Page 15 · Attach panels(13,14) to panels(15) with screws(D). · Attach panels(17) to panels(15). x 16 · Insert and secure cam locks(C) to panels(17) to lock it. · Carefully slide panels(16) into place along the bottom of the assembly.
- Page 16 x 18 · Attach panels(12) to panels(13,14,17). · Insert and secure cam locks(C) to panels(13,14,17) to lock it.
- Page 17 · Attach parts( ) to panels (12) with screws (J) correctly.
- Page 18 · Screw cam bolts(B) into panel(11). · Attach part(L) to panel(11) with bolts( K ) correctly.
- Page 19 · Attach panels(11) to panels(13,14,17). · Insert and secure cam locks(C) to panels(13,14,17) to lock it.
- Page 20 Slider arm Slider bracket Adjust Height · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.
- Page 21 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
