Yaesu FT-817ND Operating Manual

Hf/vhf/uhf all mode transceiver

Hide thumbs Also See for FT-817ND:

Brochure & specs (4 pages)

Technical supplement (111 pages)

Operating manual (84 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the FT-817ND and is the answer not in the manual?

Questions and answers

Summary of Contents for Yaesu FT-817ND

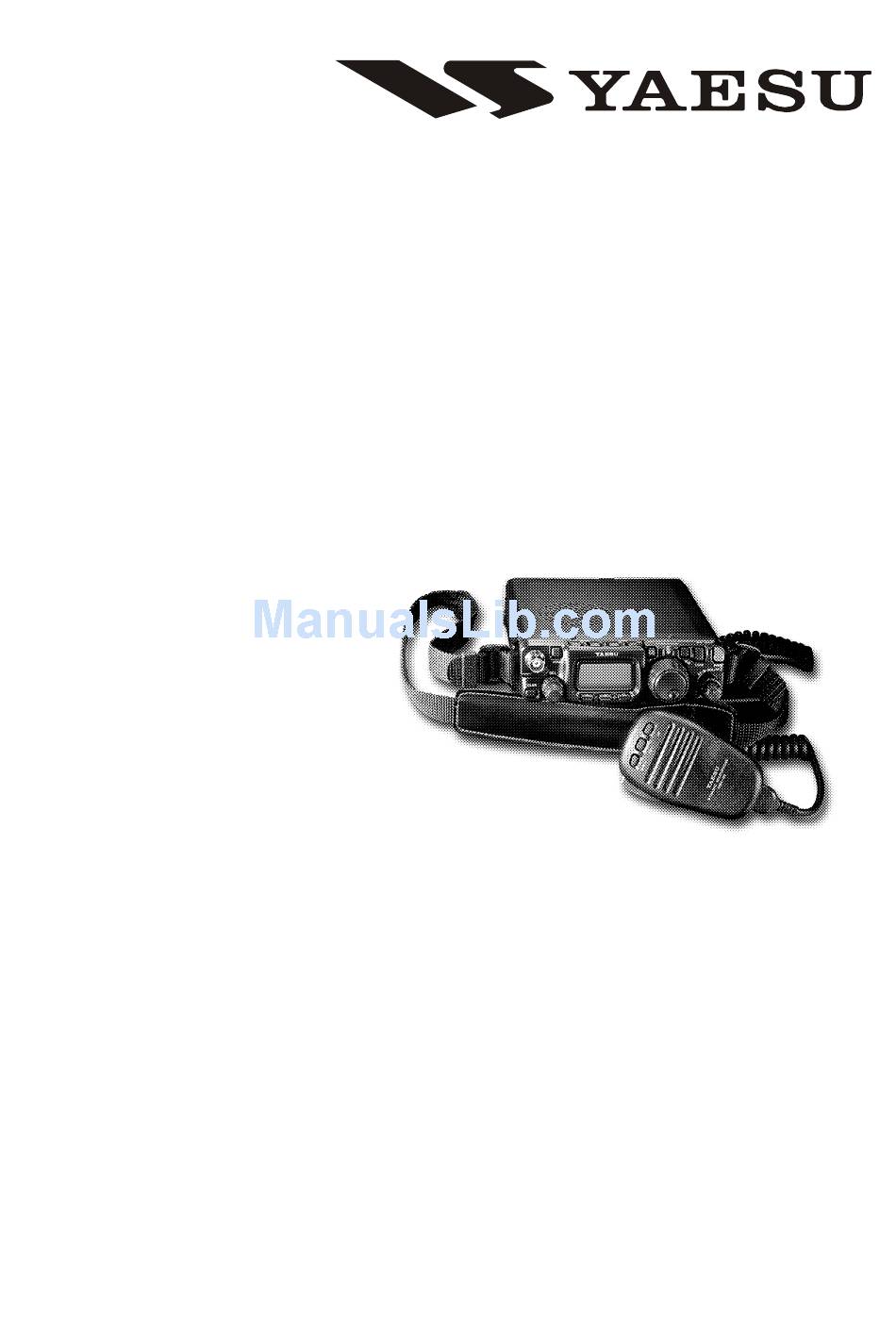

Page 1 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.
Page 2: Table Of Contents
Introduction ... 1 Specifications ... 2 Accessories & Options ... 4 Plug Pinout ... 5 Installation ... 6 Connecting the Supplied YHA-63 Antenna ... 6 Connecting the Microphone ... 7 Shoulder Strap Installation ... 7 Rubber Foot Installation ... 7 Alkaline Battery Installation and Use ...
Page 3: Introduction
The FT-817 is a compact, innovative multiband, multimode portable transceiver for the amateur radio MF/HF/VHF/UHF bands. Providing coverage of the 160-10 meter bands (include the 60 m band: USA version) plus the 6 m, 2 m, and 70 cm bands, the FT-817 includes operation on the SSB, CW, AM, FM, and Digital modes, yielding the most compre- hensive performance package available for portable operation.
Page 4: Specifications
PECIFICATIONS Frequency Range: Emission Modes: Synthesizer Steps (Min.): 10 Hz (CW/SSB), 100 Hz (AM/FM) Antenna Impedance: Operating Temp. Range: –10 °C to +60 °C (+14 °F to +140 °F) Frequency Stability: Supply Voltage: Current Consumption: Case Size (W x H x D): Weight (Approx.): RF Power Output: Modulation Types:...
Page 5 Circuit Type: Intermediate Frequencies: 1st: 68.33 MHz (SSB/CW/AM/FM); 10.7 MHz (WFM) Sensitivity: Squelch Sensitivity: Image Rejection: IF Rejection: Selectivity (–6/–60 dB): AF Output: AF Output Impedance: Specifications are subject to change without notice, and are guaranteed within amateur bands only. Frequency ranges vary according to transceiver version;...
Page 6: Accessories & Options
CCESSORIES MH-31 Hand Microphone FNB-85 Ni-MH Battery Pack (9.6 V, 1400 mAh) NC-72B/C/U Battery Charger FBA-28 Battery Case (holds 8 “AA” size Alkaline cells [not supplied]) YHA-63 Whip Antenna for (50/144/430 MHz) E-DC-6 DC Cable Shoulder Strap Ferrite Core Rubber Foot FNB-85 Ni-MH Battery Pack (9.6 V, 1400 mAh) FNB-72...
Page 7: Plug Pinout
INOUT FT-817 Operating Manual...
Page 8: Installation
NSTALLATION ONNECTING THE Your FT-817 is supplied with a three-section antenna, model YHA-63 which is designed for optimum performance on the 50 MHz, 144 MHz, and 430 MHz. It also works well on the FM broadcast and other VHF bands. This antenna is intended for connection to the front panel’s BNC-type antenna connector.
Page 9: Connecting The Microphone
ONNECTING THE To connect the microphone, plug its connector (latch side UP) into the MIC jack on the right side of the transceiver. Press it gently inward until you hear the “click” of the latch. To disconnect the microphone, press gently on the “PUSH top of the microphone connector’s rubber boot.
Page 10: Alkaline Battery Installation And Use
NSTALLATION The FT-817 is supplied with the FBA-28 holder for Alkaline “AA” cells. A fresh set of Alkaline cells should provide approximately 5.5 hours of reception under typical conditions. 1. To install or replace the AA cells, first remove the battery cover from the bottom side of the transceiver.
Page 11: External Power Connections
XTERNAL The FT-817 may be connected to an external 13.8 Volt DC power source providing at least 3 Amps of continuous-duty current.. The supplied E-DC-6 DC cable may be used for DC connections. While connected to an external DC source, if you have installed the supplied FNB-85 Ni- MH Battery Pack, the E-DC-6 connection to the external DC power source will allow op- eration of the FT-817 while charging of the FNB-85 is in progress.
Page 12: Ni-Cd Battery Pack Installation And Use
NSTALLATION FNB-85 N -MH B The supplied FNB-85 Ni-MH Battery Pack provides 9.6 Volts of DC power for your FT- , with a maximum capacity of 1400 mAh. Installation 1. To install the FNB-85 Ni-MH Battery Pack, first remove the battery compartment cover, as described previously.
Page 13 FNB-85 N -MH B Charging Charging of the FNB-85 requires the use of either the supplied NC-72B/C* charger, or an external 13.8 Volt (±15%) DC source. If the NC-72B/C is used, the FT-817 turned off during charging; if an external 13.8 Volt DC source is used (connected via the supplied E-DC-6 cable), then you may operate the FT-817 1.
Page 14: Front Panel Control & Switches
RONT ANEL PWR Switch Press and hold in the AF Knob The (inner) knob adjusts the receiver audio volume level presented to the internal or external speaker. Clockwise rotation increases the volume level. SQL/RF Knob In the USA version, this (outer) IF stages.
Page 15 & S RONT ANEL ONTROL WITCHES FUNC Keys These three keys select many of the most important operating features of the trans- ceiver. When pressing the key, the current function of that key appears above each of the keys (along the bottom of the LCD); rotating the knob scrolls the display through eleven rows of functions available for use via the keys.
Page 16 RONT ANEL Press the key to switch between VFO-A and VFO-B on the display. Press and hold in the for 1/2 second to transfer the contents of the VFO into a Memory register. Press the key to store the contents of the VFO into the QMB (Quick Memory Bank) register.
Page 17 RONT ANEL Press the key to activate t h e r e c e i v e r ’s I F N o i s e Blanker. Press the key to select the transmitter power output level (L 1, L 2, L Press the key to enable...
Page 18: Side Panel Switch & Connectors
ANEL MIC Jack Connect the supplied MH-31 SP/PH Jack This 3.5-mm, 2-pin jack provides variable audio output for an external speaker (4 Ω ~ 16 Ω impedance) or earphones. The audio level varies according to the setting of the front panel’s knob.
Page 19: Rear Panel Connectors
Jack ( INPUT:13.8V This is the DC power supply connection for the transceiver, used when operating the transceiver with an external power supply. Use the supplied DC cable to connect this jack to the car battery or base station DC power supply, which must be capable of supplying at least 3A @ 8 ~ 16 VDC.
Page 20: Operation
Hi! I’m R.F. Radio, and I’m here to guide you through the fine points of the setup and use of your new FT-817ND. I know your anxious to get on the air, but I encourage you to read the “Operation” section of this manual as thoroughly as possible, so you’ll get the most out of this fantastic new rig.
Page 21: Operating Band Selection
PERATING This transceiver covers an incredibly wide fre- quency range, over which a number of different operating modes are used. Therefore, this transceiver’s frequency coverage has been divided into different operating bands, each of with has its own pre-set channel steps and operating modes. You can change the channel steps and operating mode once you get started, of course, per the next section.
Page 22: Menu Quick Start
FM/Packet squelch threshold is pre-set at the factory; the acts as an “RF Gain” control, however, and it normally should be set fully clockwise. If this control is configured for “SQL” operation, the FT-817ND’s RF Gain will be set for maximum sensitivity in all modes, and the control.
Page 23: Setting The Operating Frequency
ETTING THE 1. In the “SSB CW DIG” modes, rotate the knob to set the frequency. Clockwise rotation of the knob increases the op- erating frequency. 2. In the “AM FM PKT” modes, rotate the knob to set the frequency. Clockwise rotation of the frequency.
Page 24: Operation On 5 Mhz Band
PERATION PERATION ON The FT-817 includes the capability for transmission and reception on the five spot fre- quencies assigned to the Amateur Service in the United States. To operate on the 5 MHz band: 1. Press the key once to enter the “Memory” mode (a memory channel number “M- will appear on the display in the space previ- ously occupied by “VFOa”...
Page 25: Clarifier (Receiver Incremental Tuning)
LARIFIER The Clarifier (RIT) allows you to set an offset of up to ±9.99 kHz of the receive frequency relative to your transmit frequency. To achieve a wider offset than this, you may use the “Split” operating mode, described later. 1.
Page 26: Receiver Accessories
ECEIVER The receiver’s IF SHIFT feature is an effective interference-reduction tool, which allows you to shift the passband response higher or lower without changing the pitch of the incom- ing signal. 1. Press the switch for one second to acti- vate the IF SHIFT feature.
Page 27: Agc (Automatic Gain Control)
AGC A The receiver recovery time constant of the AGC system may be modified to match your operating needs. 1. Press the key momentarily, then rotate the Function Row 8 [ NB, AGC ] appears on the display. ( AGC ) key to toggle the AGC recovery time constant among the following 2.
Page 28: Att (Front End Attenuator)
ECEIVER ATT F The Attenuator will reduce all signals (and noise) by 10 dB, and it may be used to make reception more pleasant under extremely noisy conditions. This feature is not available on the 144 MHz and 430 MHz. 1.
Page 29: Automatic Power-Off Feature
UTOMATIC The APO feature helps conserve battery life by automatically turning the transceiver off after a user-defined period of time within which there has been no dial or key activity. The available selections for the time before power-off are 1 ~ 6 hours, as well as “APO Off.” The default condition for the APO is OFF, and here is the procedure for activating it: 1.
Page 30: Transmitter Operation
(which are rich in high-frequency components) are frequently more important. Adjusting the Transmitter Power Output Four power levels are available on the FT-817ND: 5 Watts, 2.5 Watts, 1 Watt, and 0.5 Watt. When using Alkaline batteries or the supplied FNB-85 Ni-MH Battery Pack, the microprocessor, detecting internal battery use, automatically sets the power level to 2.5 Watts, which appears on the display as “...
Page 31: Vox Operation
VOX Operation The VOX system provides automatic transmit/receive switching based on voice input to the microphone. With the VOX system enabled, you do not need to press the PTT switch in order to transmit. 1. Press the key momentarily, then rotate the Function Row 10 [ VOX, BK, KYR ] appears on the display.
Page 32: Cw Transmission
RANSMITTER Operation using Straight Key/External Keying Device When using a straight key, an external electronic keyer, or a computer-generated keying device, please follow the instructions in this section. 1. Insert your key’s (three-conductor) plug into the rear-panel KEY jack. 2. Press the modes.
Page 33 8. You also can adjust the CW sidetone pitch using Menu #20 (CW PITCH). This adjust- ment also controls the BFO offset (actual pitch of your transmitted signal relative to your current receive frequency). To adjust the CW sidetone pitch: Press and hold in the Rotate the knob to select Menu #20 (CW PITCH).
Page 34: Operation Using The Built-In Electronic Keyer
RANSMITTER Operation using Built-in Electronic Keyer The built-in Electronic Keyer provides a convenient method of generating CW. The Elec- tronic Keyer includes weight and speed adjustments. 1. Connect your keyer paddle’s cable to the KEY jack on the rear panel of the transceiver. 2.
Page 35: Fm Transmission
Basic Setup/Operation 1. Press the 2. Press the microphone’s PTT switch, and speak into the microphone in a normal voice. 3. Release the PTT switch to return to the receive mode. 4. If you get reports that your modulation level is too high or too low, you may need to adjust the FM-mode microphone gain.
Page 36 RANSMITTER ( TON ) key to activate the CTCSS tone encoder, which provides a subaudible 4. Press the repeater access tone. One press of the encoder. In this situation, you will observe the “ ( TON ) key repeatedly, you will observe “ followed by “...
Page 37: Tone Search Scanning
In operating situations where you don’t know the CTCSS tone being used by another station, you can command the radio to listen to the incoming signal and scan in search of the tone being used. To scan for the CTCSS tone in use: 1.
Page 38: Dcs Operation
RANSMITTER DCS Operation Another form of tone access control is Digital Code Squelch, or DCS. It is a newer, more advanced tone system that is less susceptible to false triggering than CTCSS. A DCS En- coder/Decoder is built into your transceiver, and operation is very similar to that described above for CTCSS.
Page 39: Operation
ARTS The ARTS system uses DCS signaling to inform you when you and another ARTS™-equipped station are within communications range. This can be especially valuable during search-and- rescue operations, as a base station can quickly use ARTS™ to alert a field unit that it is out of range;...
Page 40: Digital Mode Operation (Ssb-Based Afsk)
RANSMITTER IGITAL The FT-817 provides extensive capability for digital mode operation on the HF, VHF, and UHF bands. The use of AFSK (Audio Frequency-Shifted Keying) configurations allows a wide variety of different communication modes to be utilized. The Menu provides for specific digital mode selections, which include custom BFO offsets to optimize the receive and transmit passbands for the mode selected.
Page 41: Psk31 Operation
IGITAL 4. If the optional YF-122C 500 Hz filter has been installed, it may be used for RTTY work. Recall Operating Function Row 7 [ IPO, ATT, NAR ] then press the engage the narrow filter. 5. To set up the transmit side, be sure that the Meter is set to monitor ALC voltage. If not, press the key momentarily, then rotate the Function Row 9 [ PWR, MTR ] , then press the...
Page 42: User" Defined Digital Modes
RANSMITTER IGITAL “USER” Defined Digital Modes Also provided in the FT-817 viding USB- and LSB-side injection, which may be used for SSTV, Fax, Pactor, and other digital operating modes. Here is an example involving the configuration of the USER mode for RTTY with USB-side injection (as opposed to LSB injection, used in the default “RTTY”...
Page 43: Packet 1200/9600 Bps Fm Operation
1200/9600 ACKET The FT-817 is designed for operation on either 1200 bps or 9600 bps packet, and setup is similar to that described previously for SSB-based modes. A separate Data input adjustment is provided, allowing you to optimize the deviation on the FM Packet modes separately from the SSB-based Digital modes.
Page 44: Am Transmission
RANSMITTER The FT-817 utilizes low-level amplitude modulation of an early stage for transmission purposes. This capability is primarily provided for emergency use only, as low-power op- eration typically utilizes more efficient transmission/reception modes. The AM carrier level is preset to 1.5 Watts during alignment at the factory, and should not require further adjustment.
Page 45: Time-Out Timer
Most often used on FM, the transmitter’s Time-Out Timer (TOT) feature disables the trans- mitter after a user-defined period of transmission. This feature may be useful in preventing a “stuck microphone” (accidental closure of the PTT switch) from causing interference to other users, and it will also force you to keep your transmission short, thereby conserving battery power.
Page 46: Memory Operation
EMORY PERATION QMB Channel Storage 1. Tune in the desired frequency and set the operating mode and bandwidth. If this is an FM channel, set up any required CTCSS/DCS and repeater shift configurations. 2. Press and hold in the audible confirmation that the data has been stored into the QMB memory. ( A/B ) key momentarily while in Operating Function Row 3 [ STO, Pressing the RCL, PMS ] will also store a frequency into the QMB register.
Page 47: Memory Operation On
EMORY PERATION ON Normal Memory Storage 1. Tune in the desired frequency, and set the operating mode and bandwidth. If this is an FM channel, set up any required CTCSS/DCS and repeater shift configurations. Stan- dard (default) repeater shifts do not require you to utilize the “split” frequency memory technique, described later.
Page 48: Memory Channel Recall
EMORY PERATION EMORY PERATION ON Memory Channel Recall 1. If you currently are in the VFO tuning mode, press the “Memory” mode (a memory channel number “M- space previously occupied by “VFOa” or “VFOb”). 2. To select another memory channel, turn the 3.
Page 49: Masking Memory
EMORY PERATION ON Masking Memory Frequency data stored on a memory channel can be deleted, if desired, from any memory channel except channel “1.” The deletion process is not a “hard” erasure, so if you erase a channel by mistake using this procedure, the memory channel contents can be recovered. 1.
Page 50: Memory Operation On "Home" Channel Memories
EMORY PERATION EMORY PERATION ON Four Special one-touch “Home” channels are available, for special frequencies you use often. Either “simplex” or “split” frequency/mode data may be stored in the “Home” chan- nel locations. Special “Home” channels are available for HF (any frequency between 1.8 and 29.7 MHz), 50 MHz, 144 MHz, and 430 MHz.
Page 51: Labeling Memories
You may wish to append an alpha-numeric “Tag” (label) to a memory or memories, to aid in recollection of the channel’s intended use (such as a club name, etc.). This is easily accom- plished using the Menu mode. 1. Recall the memory channel onto which you wish to appended a label. 2.
Page 52: Spectrum Scope Monitor Operation
PECTRUM The Spectrum Scope Monitor allows viewing of operating activity on 5 channels above and 5 channels below the current operating channel in the VFO mode. When the Spectrum Scope Monitor is activated, the display indi- cates the relative signal strength on channels immediately adjacent to the current operating frequency.
Page 53: Smart Search Operation
MART The Smart Search feature automatically stores frequencies where activity is encountered on the current band. When Smart Search above your current frequency, storing active frequencies as it goes (without stopping on them even momentarily). These frequencies are stored in a special Smart Search bank, consisting of 50 memories.
Page 54: Scanning Operation
CANNING This transceiver contains a wide variety of scanning capabilities. Whether you are in the VFO mode or one of the memory modes, scanning operation is fundamentally identical in all configurations, but with the following differences: In the VFO mode, scanning causes the transceiver to sweep up or down the band, pausing or halting on any signal encountered;...
Page 55 Scan Skip Programming (Memory Mode Only) Among the memories you have programmed, there may be some stations which you do not wish to scan. For example, broadcast signals (which are transmitted continuously) will cause the scanner to stop, and such channels may be skipped so as to avoid this inconvenience. To remove a channel from the scanning loop: 1.
Page 56: Programmable Memory Scan (Pms) Operation
CANNING Programmable Memory Scan (PMS) Operation To limit scanning (or tuning) within a particular frequency range, you can use the Program- mable Memory Scanning (PMS) feature, which utilizes special-purpose memory pair (“M- PL” and “M-PU”). The PMS feature is especially useful in helping you to observe any oper- ating sub-band limits which apply to your Amateur license class.
Page 57 CANNING PERATION Note The frequency resolution for these sub-band limits is 100 kHz, although the channel resolution of the sub-band limit memories in whatever you have selected as the cur- rent step size. As a result, the frequencies stored in these special memories (M-PL and M-PU) are both rounded down to the nearest 100 kHz for their roles as sub-band limits.
Page 58: Dual Watch Operation
ATCH Dual Watch is similar, in some respects, to scanning. In Dual Watch, however, the trans- ceiver monitors (squelched) on the VFO-A frequency while periodically checking VFO-B for activity (or vice-versa). A typical example might be for you to set VFO-A to 50.110 MHz, watching for DX stations who might call CQ on that frequency, while periodically checking 28.885 MHz for stations reporting band openings on 6 meters.
Page 59: Operation On Alaska Emergency Frequency: 5167.5 Khz (U.s. Version Only)
PERATI O N ON LASKA Section 97.401(d) of the regulations governing amateur radio in the United States permit emergency amateur communications on the spot frequency of 5167.5 kHz by stations in (or within 92.6 km of) the state of Alaska. This frequency is only to be used when the immediate safety of human life and/or property are threatened, and is never to be used for routine communications.
Page 60: Menu Operation
PERATION The Menu System allows you to customize a wide variety of transceiver performance as- pects and operating characteristics. Once you have gone through the various Menu customization procedures initially, you will find that you will not have to resort to them frequently during everyday operation.
Page 61 0 Hz 0 ~ 100 RTTY/ RTTY PSK31-L/PSK31-U/ USER-L/USER-U -3000 ~ +3000 Hz 0 Hz OFF/ON 0 ~ 100 5/6.25/10/12.5/15/ 20/25/50 kHz – YAESU DIAL/FREQ/PANEL DIAL FINE/COARSE FINE OFF/ON – – OFF/ON OFF/ON OFF/SSB/CW 0 ~ 100 1200/9600 bps 1200 bps...
Page 62 PERATION Menu Item 01 [ 144 ARS ] Function: Activate/deactivate the Automatic Repeater Shift when operating on the 144 MHz band. Available Values: OFF/ON Default: ON (depending on transceiver version) Menu Item 02 [ 430 ARS ] Function: Activate/deactivate the Automatic Repeater Shift when operating on the 430 MHz band.
Page 63 Menu Item 09 [ ARTS BEEP ] Function: Select the ARTS beep mode. Available Values: OFF/RANGE/ALL Default: RANGE OFF: No alert beeps sound; you must look at the display to determine current ARTS status. RANGE: A high tone beep will sound when the transceiver first detects that you are within range, and a low beep will sound when the other station goes out of range.
Page 64 PERATION Menu Item 15 [ COLOR ] Function: Select the illumination color for the LCD illumination. Available Values: COLOR1 (Blue)/COLOR2 (Amber)/COLOR3 (Violet) Default: COLOR1(Blue) Menu Item 16 [ CONTRAST ] Function: Setting of the display contrast level. Available Values: 1 ~ 12 Default: 5 Menu Item 17 [ CW DELAY ] Function: Set the receiver recovery time during pseudo-VOX CW semi-break-in operation.
Page 65 Menu Item 21 [ CW SPEED ] Function: Set the sending speed for the built-in Electronic keyer. Available Values: 4wpm ~ 60 wpm/20cpm ~ 300 cpm Default: 12 wpm (60 cpm) You can set the sending speed according to either of two units of speed (wpm: words per minute;...
Page 66 3. Repeat the previous step as many times as necessary to complete your callsign. 4. Press the knob to save your completed callsign and exit. Default: YAESU knob to navigate; the Alaska Emergency Channel will be knob on the FM mode.
Page 67 Menu Item 32 [ LOCK MODE ] Function: Select the operation of the front panel’s Available Values: DIAL/FREQ/PANEL Default: DIAL DIAL: Locks knob only FREQ: Locks front panel keys and knobs related to frequency control (such as key, PANEL: Locks all front keys and knobs (except Menu Item 33 [ MAIN STEP ] Function: Setting of the Available Values: FINE/COARSE...
Page 68 PERATION Menu Item 36 [ MIC KEY ] Function: Enable/disable CW keying by the microphone’s [ UP ] / [ DWN ] keys. Available Values: OFF/ON Default: OFF When this Menu Item is set to “ON,” press the microphone’s [ UP ] key to send a “dot,” and press the microphone’s [ DWN ] key to send a “dash”...
Page 69 Menu Item 43 [ SCOPE ] Function: Select the Spectrum Scope mode. Available Values: CONT/CHK Default: CONT CONT: The Spectrum Scope sweeps continuously. CHK: The Spectrum Scope sweeps one cycle every 10 seconds. Menu Item 44 [ SIDETONE ] Function: Adjust the CW sidetone volume level. Available Values: 0 ~ 100 Default: 50 Menu Item 45 [ SQL/RF-G ]...
Page 70 PERATION Menu Item 51 [ VOX GAIN ] Function: Set the gain of the VOX circuitry’s input audio detector. Available Values: 1 ~ 100 Default: 50 Menu Item 52 [ EXTEND ] Function: Enable/disable the extended Menu Items (#53 ~ #57). Available Values: OFF/ON Default: OFF Menu Item 53 [ DCS INV ]...
Page 71: Clonning
You can transfer all data stored in one transceiver to another set by utilizing the handy “Cloning” feature. This requires a user-constructed cloning cable which connects the ACC jacks on the two transceivers as shown below. To clone from one transceiver to another, use the following procedure: 1.
Page 72: System Programming
System operating software, due to the wide variety of personal computers, operating systems, and applications in use today. However, the FT- (and other Yaesu products) are widely supported by third-party software packages, and we recommend that you contact your dealer for advice, or check advertisements in amateur radio journals.
Page 73 CAT Data Protocol All commands sent from the computer to the transceiver consist of five-byte blocks, with up to 200 ms between each byte. The last byte in each block is the instruction opcode, while the first four bytes of each block are arguments (either parameters for that instruction, or dummy values required to pad the block out to five bytes).
Page 74 YSTEM Command Title LOCK ON/OFF PTT ON/OFF Set Frequency Operating Mode CLAR ON/OFF CLAR Frequency VFO-A/B SPLIT ON/OFF Repeater Offset Repeater Offset CTCSS/DCS Mode CTCSS Tone DCS Code Read RX Status Read TX Status Read Frequency & Mode Status POWER ON/OFF ROGRAMMING Parameter Notes...
Page 75 Note 1: CTCSS Tone CTCSS TONE FREQUENCY ( Hz ) 67.0 69.3 71.9 74.4 82.5 85.4 88.5 91.5 100.0 103.5 107.2 110.9 123.0 127.3 131.8 136.5 151.4 156.7 159.8 162.2 171.3 173.8 177.3 179.9 189.9 192.8 196.6 199.5 210.7 218.1 225.7 229.1 250.3...
Page 76: Installation Of Optional Accessories
NSTALLATION OF PTIONAL ILTERS 1. Turn the transceiver’s power off by pressing and holding in the second, then remove the FBA-28 Battery Case or FNB-85 Ni-MH Battery Pack from the transceiver. Additionally, disconnect the DC cable from the INPUT: 13.8V on the rear panel of the transceiver, when operating the FT-817 supply.
Page 77: High-Stability Reference Oscillator Tcxo-9
NSTALLATION OF PTIONAL The TCXO-9 provides high stability over a wide range of ambient temperatures, so as to enhance digital-mode operating. 1. Turn the transceiver’s power off by pressing and holding in the second, then remove the FBA-28 Battery Case or FNB-85 Ni-MH Battery Pack from the transceiver.
Page 78: Power-On Microprocessor Reset Procedure
OWER ICROPROCESSOR Some or all transceiver settings can be reset to their factory-default states using one of the following power-on routines: + POWER on: Reset all memories and following menu setting to factory-default. Menu #06 (AM STEP), 23 (DCS CODE), 30 (FM STEP), 35 (MEM TAG), 42 (RPT SHIFT), 47 (SSB STEP), and 48 (TONE FREQ).
Page 79: Appendix
ETUP OF EMORIES FOR Although the FT-817 is not capable of “full duplex” operation (simultaneous transmis- sion and reception), its flexible memory system is ideal for configuring a set of memories for LEO satellite work. The example at the right is designed around the popular satellite UO-14, but the same principles apply to operation using AO-27, SO-35, and other such satellites.
Page 80 PPENDIX LEO FM S ETUP OF EMORIES FOR ARTH RBIT ATELLITE PERATION Press the key momentarily, then rotate the knob one click counter-clockwise to re- select Operating Function Row 1 [ A/B, A=B, SPL ] . Press the ( A/B ) key to select VFOb (145.970 MHz).
Page 81 PPENDIX LEO FM S ETUP OF EMORIES FOR ARTH RBIT ATELLITE PERATION A complete set of frequencies may be stored for each LEO satellite you wish to utilize, and once configured, the FT-817 provides a flexible and easy-to-use earth station capability for these popular satellites.
Page 82: Band Data Format
PPENDIX BAND DATA FORMAT The FT-817 BAND DATA Format (available on the BAND DATA line provides a stepped voltage, which denotes the current operating band. This data may be interpreted by an external device (such as an antenna switch or amplifier)to provide automatic band switching.
Page 83 1. Changes or modifications to this device not expressly approved by VERTEX STANDARD could void the user’s authorization to operate this device. 2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference including received, interference that may cause undesired operation.
