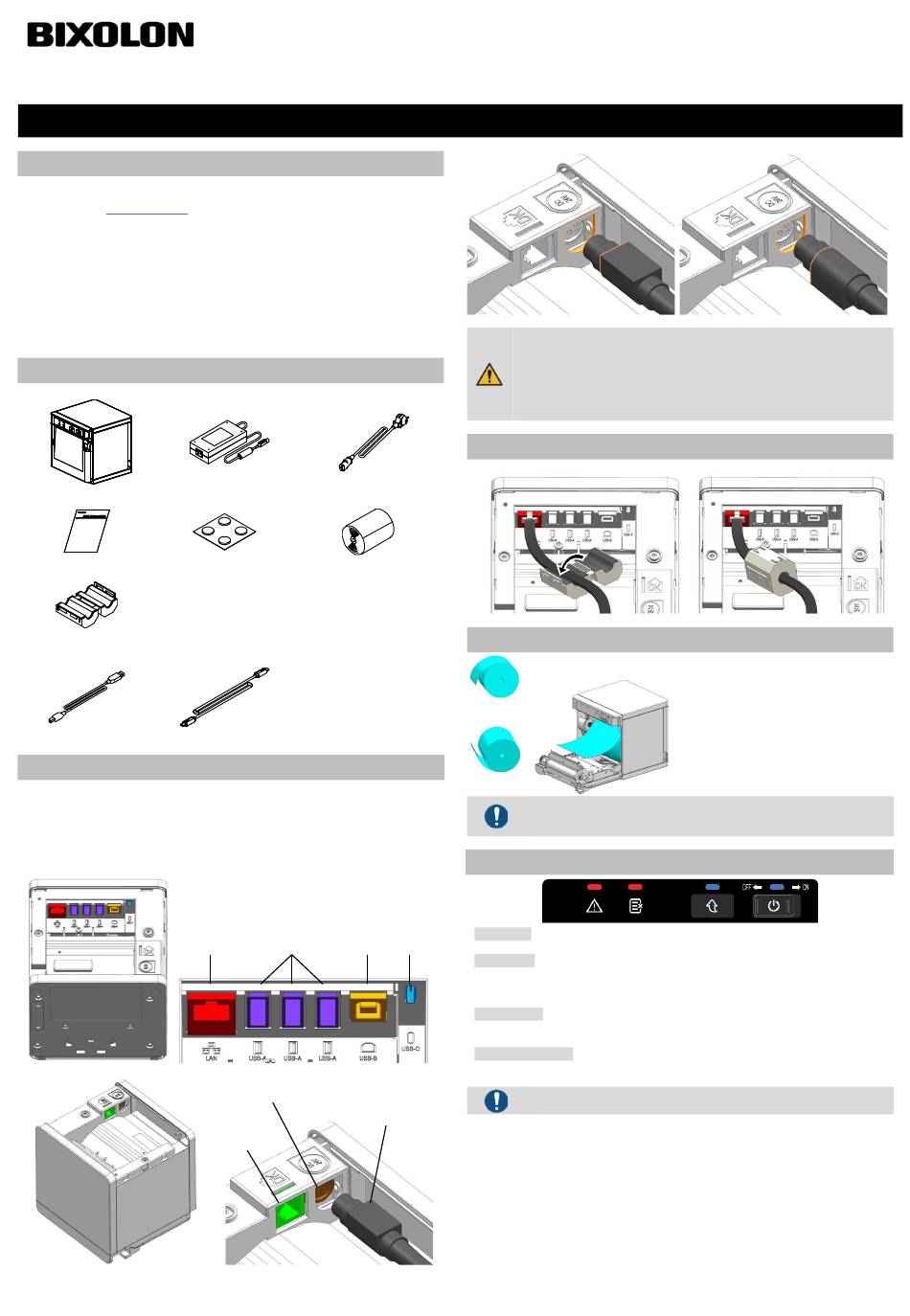

BIXOLON SRP-Q300II Installation Manual & Safety Manual

Printer Installation Guide & Safety Guide
KN04-00252A (Ver1.0)
◈ Information
This installation guide contains quick information required for the product installation.
Please refer to the Software and Documents provided on the Download section of the
BIXOLON Website (www.bixolon.com) for more information on how to setup.
1. Manual: User's Manual, Code Pages, Commands, Software manuals
2. Driver: Windows, OPOS, CUPS (Linux, Mac), VCOM(USB, Ethernet)
3. SDK: UPOS SDK (Windows, Android, iOS)
4. Utility: Unified POS Utility, Net Configuration Tool, Android Utility, iOS Utility
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.
Please refer to the BIXOLON website for the addresses and phone numbers of the
company's headquarters and branch offices.
◈ Components
- Standard Components
SRP-Q300II
Installation Guide
EMI-Core
- Optional Components
USB A-B Cable
◈ Cable Connection
1. Turn off the printer and peripheral devices.
2. Connect the power cord to the adapter and connect the adapter to the power supply
connector of the printer.
3. Check the type of the interfaces at the back of the printer (USB, Ethernet) and connect the
interface cable.
4. Connect the drawer kick-out cable to the drawer kick-out port located on the underside of
the printer.
Ethernet Port
AC/DC Adaptor Power Cord
Foot Rubber Roll Paper
USB C-C Cable
USB-A(Host) USB-B
Power Port
Drawer Adapter Jack
Kick-out
Port
THERMAL RECEIPT PRINTER SRP-Q300II
O
- Be sure to turn off the printer and connect or disconnect the power jack.
- Only use a power supply provided by Bixolon.
- Pay attention to the direction in which you insert the power jack.
- If you connect a USB-B port and a USB-C port at the same time, only the
USB-B port will work.
- The USB-C port only supports USB-C type smart devices.
(Set Smart Device Mode and connect to a USB-C port.)
◈ Installing EMI-Core
Attach the EMI-core to the included Ethernet cable before connecting it.
EMI-Core
◈ Installing Paper Roll
O
X
When closing the cover, press down on the center of the cover to ensure
that the paper is in contact with the roller. Printing quality may not be
optimum if the recommended paper is not used.
◈ Using Control Panel
• Error (LED)
USB-C
Red light will be on in various error conditions such as out of paper, cover open, etc.
• Paper (LED)
Red LED will be lit when the paper roll is running low.
The LED keeps blinking when the printer is in self-test standby mode or macro execution
standby mode.
• Feed (Button)
Press this button to feed the paper out.
Hold down this button to feed out the paper continuously.
• Power (Slide Switch)
- Power On: To turn on the printer, slide the power switch to the ON direction(right side).
- Power Off: To turn off the printer, slide the power switch to the OFF direction(left side).
The error light and paper light blink alternately when the printer is turned
on, but both go off after booting is completed.
X
EMI-Core
1. Open the printer cover by pulling the Open
Cover lever forward.
2. Insert new roll paper in the correct direction.
3. Pull the paper out slightly and close the
Printer Cover.
