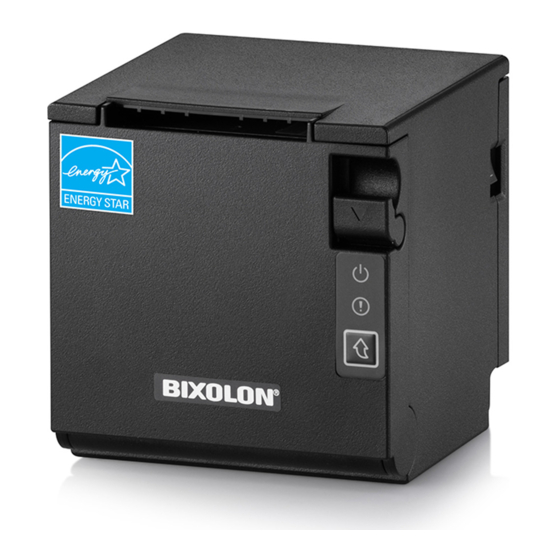

Thermal receipt printer
Hide thumbs Also See for SRP-Q200 Series:

Advertisement

Quick Links

User's Manual
SRP-Q200
THERMAL RECEIPT PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-Q200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BIXOLON SRP-Q200 Series

  • Page 1 User’s Manual SRP-Q200 THERMAL RECEIPT PRINTER Ver. 1.00 http://www.bixolon.com...
  • Page 2 SRP-Q200 Introduction SRP-Q200 printers have been designed to be connected to various types of electronic devices such as POS (Point Of Sales), and computer peripheral devices. ※ The main features of the printer are as follows 1. THERMAL RECEIPT PRINTER 2.
  • Page 3 SRP-Q200 Safety Information Warning: Warnings must be heeded carefully in order to prevent serious physical harm. Caution: Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. Symbol Information DC (Direct current) Error, Warning Paper Feeding Stand-By Ethernet - 3 -...
  • Page 4: Table Of Contents

    SRP-Q200 Table of Contents 1. Installing Printer and Getting Started ................. 5 1-1 Unpacking ......................... 5 1-2 Interface ..........................6 1-2-1 USB Interface ......................7 1-2-2 Ethernet Interface....................8 1-2-3 Serial Interface (RS-232C) ..................9 1-2-4 Wireless LAN Interface (Option)................10 1-2-5 Bluetooth Interface (Option) ................
  • Page 5: Installing Printer And Getting Started

    SRP-Q200 1. Installing Printer and Getting Started 1-1 Unpacking • Check the following contents list, and contact your dealer for assistance if any item is missing or incorrect. - Product SRP-Q200 - Standard Components Installation Guide Power Cord AC/DC Adaptor Roll Paper - Optional Components Serial Cable...
  • Page 6: Interface

    SRP-Q200 1-2 Interface • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface Cover-Rear Cover-Rear Open Button To detach cover-rear easily, press cover-rear Open Button. Note - 6 - Ver.
  • Page 7: Usb Interface

    SRP-Q200 1-2-1 USB Interface USB Port  Model : SRP-Q200S USB Port  Model : SRP-Q200Ex Pin No. Signal Name Designation (Color) Function Shell Shield Drain Cable Frame Ground VBUS Host Power WHITE Data Line (D-) GREEN Data Line (D+) BLACK Signal Ground After turning off the power switch of printer, connect and...
  • Page 8: Ethernet Interface

    SRP-Q200 1-2-2 Ethernet Interface Ethernet Cable Port  Model : SRP-Q200Ex Pin No. Signal Name Designation (Color) Function WHITE ORANGE Transmit + ORANGE Transmit - WHITE GREEN Center tap BLUE WHITE BLUE GREEN WHITE BROWN Receive + BROWN Receive - - Information such as IP and Mac can be found by operating the function key.
  • Page 9: Serial Interface (Rs-232C)

    SRP-Q200 1-2-3 Serial Interface (RS-232C)  Model : SRP-Q200S Serial Cable Port *Printer side Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Signal Ground After turning off the power switch of printer, connect and disconnect Caution the communication cable.
  • Page 10: Wireless Lan Interface (Option)

    SRP-Q200 1-2-4 Wireless LAN Interface (Option) 1) Wireless LAN Communication Specifications Item Specifications Frequency 2.4GHz / 5GHz Protocol 802.11 a/b/g/n 2) Connecting Wireless LAN Printer can be connected to terminal devices with wireless LAN communication capability (PDA, PC, smartphone, tablet PC, etc.). Refer to the Wireless Wireless LAN Connection Manual for more Note detailed instructions about how to establish the connection.
  • Page 11: Drawer Kick-Out Port

    SRP-Q200 1-3 Cash drawer Port • Connect the cash drawer cable to the drawer kick-out port on the rear side of the printer. Drawer Kick-out Port Pin No. Signal Name Direction Frame Ground Drawer Kick-out Drive Signal 1 Output Drawer Open/Close Signal Input +24V Drawer Kick-out Drive Signal 2...
  • Page 12: Connecting Power Supply

    SRP-Q200 1-4 Connecting Power Supply 1) Make sure the product is turned off before connecting the power supply. 2) Connect the power cable with the flat side pointing to the outside of the printer, as shown in the diagram below. Power Port Power Cable - 12 -...
  • Page 13 SRP-Q200 - Only use a power supply provided by Bixolon. Bixolon shall bear no responsibility for damage caused by using a third-party power supply. - Check the power supply’s label to check its electronic specs. - When removing the power supply, make sure you have a firm grasp of the plug terminal of the power cable and the printer and pull horizontally.
  • Page 14: Reconfiguration Of Printer

    SRP-Q200 1-5 Reconfiguration of Printer • This product supports virtual memory switch change the use the virtual memory switch utility. Use virtual memory switch management function for self-diagnosis. • Adjusting print speed and density by virtual memory switch setting Print Print Level MSW 1-8...
  • Page 15: Installing & Replacing Paper

    SRP-Q200 1-6 Installing & Replacing Paper 1) Open the paper roll cover by Pulling the Cover-Open Lever. Do not open the print cover while the printer is operating, Caution otherwise the printer may be damaged. - 15 - Ver. 1.00...
  • Page 16 SRP-Q200 2) Remove the empty paper roll and replace with a new one as shown in the image. Check the orientation of the roll paper when inserting it into the printer. Caution - 16 - Ver. 1.00...
  • Page 17 SRP-Q200 3) Pull out a small amount of paper as shown in the picture, and close the cover. - When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. Caution - Make sure to use the specified paper only. - 17 - Ver.
  • Page 18: Recommended Papers

    SRP-Q200 1-7 Recommended Papers - TF50KS-E (Paper Thickness: 65μm): Nippon Paper Industries Co., Ltd. - PD 160R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. - P350 (Paper Thickness: 62μm): Kansaki Specialty Paper, Inc. (USA) - Hansol Thermo 65 (Paper Thickness: 65μm): Hansol Paper Co., Ltd (Korea) - Use of papers other than those recommended above may damage TPH or degrade the printing quality and our company Is not responsible for the damage caused by non-recommended...
  • Page 19: Using Printer Functions

    SRP-Q200 1-9 Using Printer Functions • Power (Button) - The POWER light is on whenever the printer is on. • Error (Indicator Lamp) - Red light will be on in various error conditions such as out of paper, cover open, etc. •...
  • Page 20: Self-Test

    SRP-Q200 2. Self-Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test procedure is as follows: 1) Make sure paper roll has been installed properly. 2) Turn on the power while holding down the FEED button and the self-test begins. 3) The self-test prints the current status of the printer including control ROM version.
  • Page 21 SRP-Q200 (2) If you select “VMSM Selection” ① The following lines will be printed when the VMSM opens. ** VMSM Selection ** 0 : Exit and reboot printer 1 : Print current settings 2 : Set Print Density 3 : Set Cutting mode 4 : Set External Buzzer after cutting 5 or more : None ②...
  • Page 22: Hexadecimal Dumping

    SRP-Q200 3. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands.
  • Page 23: Cleaning Printer

    SRP-Q200 4. Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows: 1) Open the printer cover and remove the paper currently in use. 2) Residue or contamination of printer head should be wiped out by ethanol or IPA. Cotton Swab 3) Clean the paper sensor and paper roller with a cotton swab or a dry cloth.
  • Page 24: Specifications

    SRP-Q200 5. Specifications Printing Method Thermal printing Dot Density 203 dpi (8dots/mm) Printing Width 2 inches 54 mm Paper Width 2 inches 58.0±0.5 mm No. of Characters per Line 36 (Font A) ,48 (Font B, Font C) (Default Value) Printing Speed Max.
  • Page 25 BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information.
  • Page 26 SRP-Q200 Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
  • Page 27 SRP-Q200 Revision history Ver. Date Page Description 1.00 07.08.19 - 27 - Ver. 1.00...
