4K/HDR
5x2 HDMI Matrix Switcher with Mirrored Outputs
AT-HDR-SW-52ED

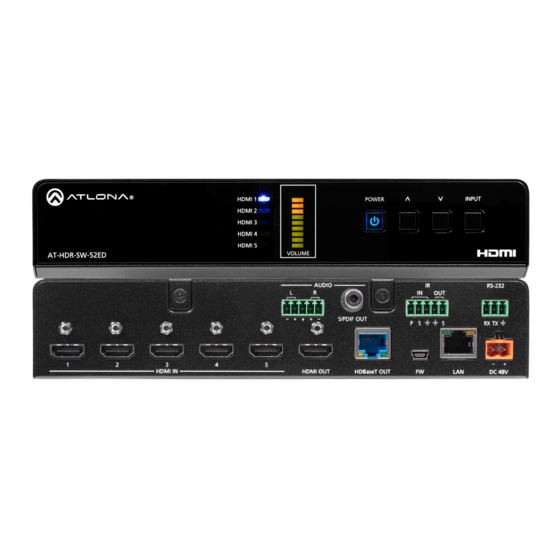

The Atlona AT-HDR-SW-52ED is a 5×2 HDMI matrix switcher for high dynamic range (HDR)
formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features
five HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output
transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to
the AT-HDR-EX-100CEA-RX receiver (available separately). The HDR-SW-52ED is HDCP 2.2
compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI
data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources
and displays, and includes EDID management features, automatic input switching, and automatic
display control. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the
outputs when connected to an HD display. The HDR-SW-52ED can de-embed audio from an
HDMI input, or return audio from the HDR-EX-100CEA-RX receiver, to S/PDIF or balanced analog
audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.
Package Contents
1 x AT-HDR-SW-52ED
1 x Captive screw connector, 2-pin
1 x Captive screw connector, 3-pin
2 x Captive screw connector, 5-pin
1 x Long rack ear
1 x Short rack ear
2 x Mounting plates
4 x Mounting screws
4 x Rack screws
4 x Feet w/rubber grips
1 x 48 V / 0.83 A DC power supply
IMPORTANT: Visit https://www.atlona.com/product/at-hdr-sw-52ed for the
latest firmware updates and User Manual.
1
Installation Guide
AT-HDR-SW-52ED

Advertisement

Table of Contents
loading

Related Manuals for Panduit Atlona AT-HDR-SW-52ED

Summary of Contents for Panduit Atlona AT-HDR-SW-52ED

  • Page 1 5x2 HDMI Matrix Switcher with Mirrored Outputs AT-HDR-SW-52ED The Atlona AT-HDR-SW-52ED is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately).

  • Page 2: Front Panel Descriptions

    Installation Guide AT-HDR-SW-52ED Front Panel Descriptions HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 AT-HDR-SW-52ED VOLUME HDMI 1 - HDMI 5 Cursor Buttons AUDIO RS-232 These LED indicators display which input Press and release these buttons to is routed to the HDMI OUT ports.

  • Page 3: Rear Panel Descriptions

    Installation Guide HDMI 1 POWER INPUT HDMI 2 AT-HDR-SW-52ED HDMI 3 HDMI 4 HDMI 5 AT-HDR-SW-52ED VOLUME Rear Panel Descriptions AUDIO RS-232 S/PDIF OUT RX TX HDMI IN HDMI OUT HDBaseT OUT DC 48V HDMI IN IR IN/OUT Connect an HDMI cable from each of Connect an IR emitter to the OUT (S, these ports to an HDMI source.
  • Page 4 Installation Guide HDMI 1 POWER INPUT AT-HDR-SW-52ED HDMI 2 HDMI 3 HDMI 4 HDMI 5 Power VOLUME Connect the included 2-pin captive screw connector to the DC 48V power receptacle on the rear of the unit. The captive screw comes pre-wired as shown. AUDIO RS-232 S/PDIF OUT...
  • Page 5 Installation Guide AT-HDR-SW-52ED Audio The included 5-pin captive screw block can be wired to support balanced audio using XLR connectors, or unbalanced audio using RCA connectors. Balanced Audio (XLR) Channel Signal (AT-HDR-SW-52ED) Pin (XLR) GND* *The GND signal, from the 5-pin captive screw connector on the AT-HDR-SW-52ED, should be tied to pin 1 on both XLR connectors.
  • Page 6 Installation Guide AT-HDR-SW-52ED HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 The AT-HDR-SW-52ED provides an IR port which can be used to control a display using an IR VOLUME emitter or directly control the AT-HDR-SW-52ED using a control system. Display Control AUDIO RS-232...

  • Page 7: Installation

    Installation Guide AT-HDR-SW-52ED Installation Connect a source device to each of the HDMI IN (1 - 5) ports. Connect a display device to the HDMI OUT port. Connect a category cable from the HDBaseT OUT port to a the HDBaseT IN port of a compatible receiver unit, such as the AT-HDR-EX-100CEA-RX.
  • Page 8 Installation Guide AT-HDR-SW-52ED IP Configuration The AT-HDR-SW-52ED is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-HDR-SW-52ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx/16.

  • Page 9: Accessing The Built-In Web Server

    Installation Guide AT-HDR-SW-52ED Accessing the built-in Web Server The AT-HDR-SW-52ED includes a built-in web server, which allows easy management and control of all features. Follow the instructions below to access the web server. Make sure that an Ethernet cable is connected between the LAN port on the AT-HDR-SW- 52ED and the network.
  • Page 10 Installation Guide AT-HDR-SW-52ED Notes...
  • Page 11 Installation Guide AT-HDR-SW-52ED Notes...

  • Page 12: Warranty

    Installation Guide AT-HDR-SW-52ED Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-sw-52ed/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
