Cincoze CO-100/P1301 Series User Manual

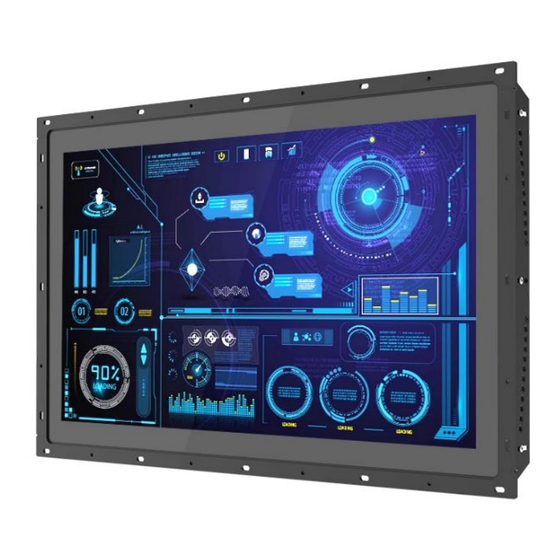

Tft-lcd open frame panel pc with intel® alder lake n series processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

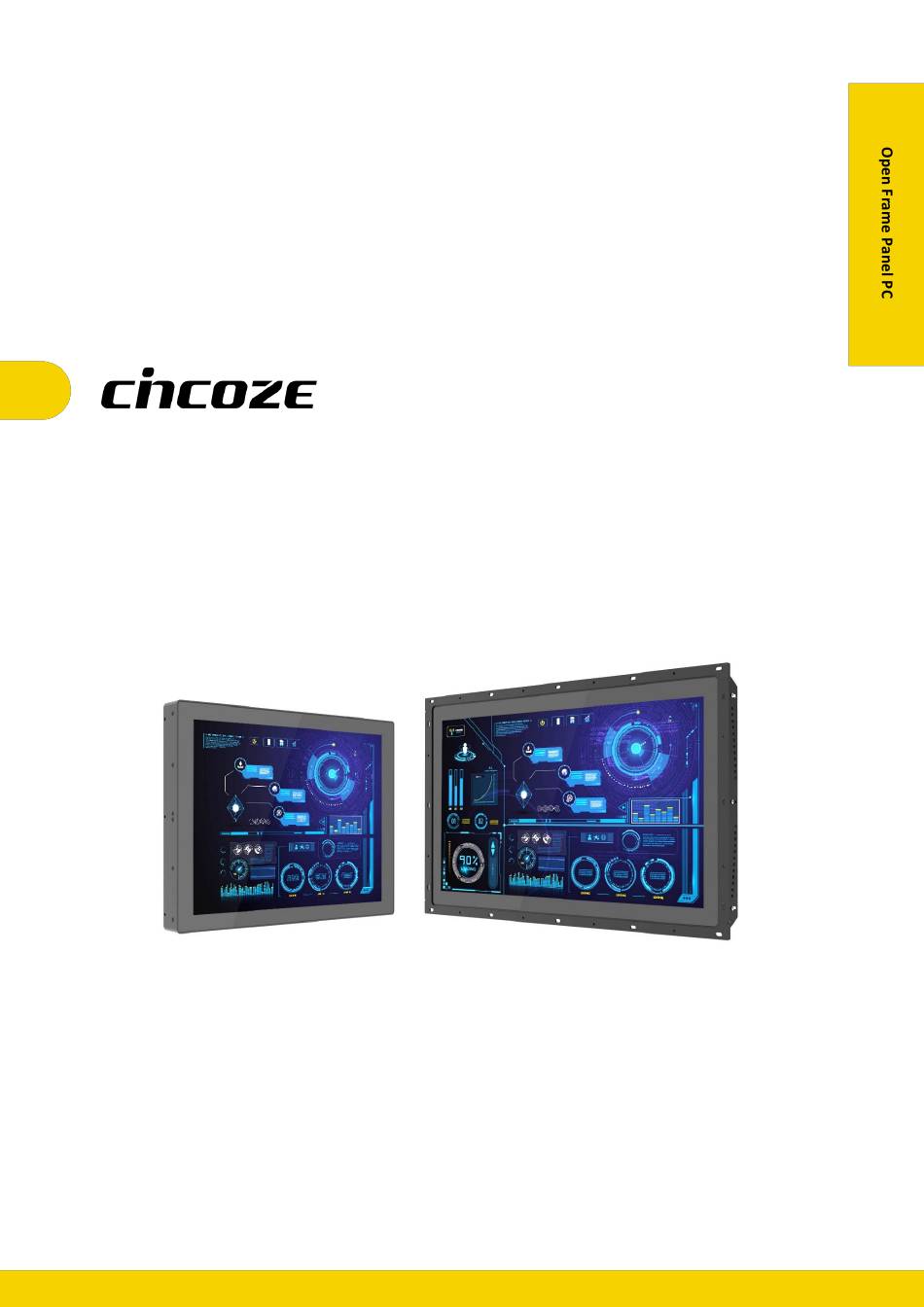

CO-100/P1301 Series
User Manual
Open Frame Panel PC
TFT-LCD Open Frame Panel PC with Intel® Alder Lake N Series Processor
Version: V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO-100/P1301 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CO-100/P1301 Series

Summary of Contents for Cincoze CO-100/P1301 Series

  • Page 1 CO-100/P1301 Series User Manual Open Frame Panel PC TFT-LCD Open Frame Panel PC with Intel® Alder Lake N Series Processor Version: V1.00...

  • Page 2: Table Of Contents

    3.2 Installing SO-DIMM Memory ....................36 3.3 Installing M.2 Key B Card ...................... 37 3.3.1 M.2 Key B type 3052 ....................37 3.3.2 M.2 Key B type 3042 ....................38 3.4 Installing M.2 Key E Card ...................... 39 CO-100/P1301 Series | User Manual...
  • Page 3 4.3.13 CSM Configuration ....................75 4.3.14 NVMe Configuration ....................76 4.4 Chipset Setup ........................77 4.4.1 System Agent (SA) Configuration ................77 4.4.2 PCH-IO Configuration ....................78 4.5 Security Setup ........................80 4.6 Boot Setup ..........................81 CO-100/P1301 Series | User Manual...
  • Page 4 4.7 Save & Exit ..........................82 Chapter 5 Product Application ......................83 5.1 Where to download drivers? ....................84 5.2 Where to find the technical documents? ................84 CO-100/P1301 Series | User Manual...

  • Page 5: Preface

    2024/01/25 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. CO-100/P1301 Series | User Manual...

  • Page 9: Package Contents

    Power Terminal Block Connector Thermal Pad (for CPU Thermal Block) Screw Pack Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Note: Notify your sales representative if any of the above items are missing or damaged. CO-100/P1301 Series | User Manual...

  • Page 10: Ordering Information

    Modular Panel PC with Intel® Processor N97 Quad Core Processor and Projected Capacitive Touch 21.5" TFT-LCD Full HD 16:9 Open Frame Display CO-W121C-R10/P1301-X7425E-R10 Modular Panel PC with Intel® Atom® x7425E Quad Core Processor and Projected Capacitive Touch CO-100/P1301 Series | User Manual...

  • Page 11: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CO-100/P1301 Series | User Manual...

  • Page 12: Overview

    1.1 Overview Cincoze open frame industrial panel PC series (CO-100/P1301) is equipped with an Intel® Alder Lake-N processor, rich I/O interfaces (2.5 GbE LAN, USB3.2 Gen2x1, COM, DIO, etc.), and flexible expansion. The biggest highlight is its adjustable mounting bracket design (Patent No.: D224544, D224545, I802427) that allows flexible adjustment and multi-stage locking to greatly improve the...
  • Page 13 Wide Temps, Safe & More Reliable The CO-100/P1301 series features a series of industrial-grade protections, such as a fanless design, wide operating temperature range (0°C to 60°C), wide range DC power input (9 to 48VDC), and IP65 dustproof/water resistant front panel for...

  • Page 14: Specifications

    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV CO-100/P1301 Series | User Manual...
  • Page 15 • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion M.2 Key E Socket • 1x Front Accessible SIM Socket SIM Socket • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) CO-100/P1301 Series | User Manual...
  • Page 16 * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) Operating Temperature * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 • -40°C to 70°C Storage Temperature • 95%RH @ 70°C (non-Condensing) Relative Humidity CO-100/P1301 Series | User Manual...
  • Page 17 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension...

  • Page 18: Co-W121C-R10/P1301 Series

    • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m CO-100/P1301 Series | User Manual...
  • Page 19 M.2 Key E Socket • 1x Front Accessible SIM Socket SIM Socket • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface CO-100/P1301 Series | User Manual...
  • Page 20 * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 • -40°C to 70°C Storage Temperature • 95%RH @ 70°C (non-Condensing) Relative Humidity • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) Shock CO-100/P1301 Series | User Manual...
  • Page 21 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension...

  • Page 22: External Layout

    1.3 External Layout 1.3.1 Front 1.3.2 Rear CO-100/P1301 Series | User Manual...

  • Page 23: Left

    1.3.3 Left 1.3.4 Right CO-100/P1301 Series | User Manual...

  • Page 24: Chapter 2 Introduction To Switches & Connectors

    Chapter 2 Introduction to Switches & Connectors CO-100/P1301 Series | User Manual...

  • Page 25: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View CO-100/P1301 Series | User Manual...

  • Page 26: Switches And Connectors Definition

    DDR5 SO-DIMM Socket SPK_L1 Speaker out Connector for Left Side SPK_R1 Speaker out Connector for Right Side Super CAP Switch Power Select for COM1/COM2 USB2_1 USB 2.0 Connector USB3_2 USB 3.2 GEN2 Connector VGA1 VGA Connector (DB15) CO-100/P1301 Series | User Manual...

  • Page 27: Definition Of Switches

    Normal (Default) Right Clear CMOS PWR_SSD_LED1: Power / HDD Access LED Status Switch LED Color Definition Green POWER ON POWER LED Colorless POWER OFF Blinking Green Stand by Yellow HDD Read/Write HDD LED Colorless No Operation CO-100/P1301 Series | User Manual...
  • Page 28 Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity * LAN 2 here is equivalent to LAN 2 mentioned in Chapter 1. LAN 3 here is equivalent to LAN 1 mentioned in Chapter 1. CO-100/P1301 Series | User Manual...

  • Page 29: Definition Of Connectors

    KEY Pin DEVSLP KEY Pin KEY Pin SIM_DETECT KEY Pin PCIE1_RXN/SATA_RXP RESET2# KEY Pin SUSCLK KEY Pin PCIE1_RXP/SATA_RXN CFG1 KEY Pin +3.3V KEY Pin M.2_BT_PCMCLK +3.3V CFG0 PCIE1_TXN/SATA_TXN M.2_BT_PCMIN +3.3V PCIE1_TXP/SATA_TXP CFG2 M.2_BT_PCMOUT RESET# PULL-UP CO-100/P1301 Series | User Manual...
  • Page 30 +3.3V USB_D‐ PCM_CLK WGR_D1N PCM_SYNC/LPC_RSTN WGR_D1P PCM_IN PCM_OUT WGR_D0N WGR_D0P UART_WAKE# WGR_CLKN UART_RX/BRI_RSP WGR_CLKP UARTX/RGI_DT UART_CTS/RGI_RSP PETP0 UART_RTS/BRI_DT PETN0 PERP0 PERN0 REFCLKP0 REFCLKN0 SUSCLK PERST0# CLKREQ0# W_DISABLE2# (PULL‐UP) PEWAKE0# W_DISABLE1# (PULL‐UP) I2C_DATA WTD1N I2C_CLK WTD1P CO-100/P1301 Series | User Manual...
  • Page 31 Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. (Veuillez débrancher la source d'alimentation avant de monter les câbles d'alimentation CC ou de connecter le connecteur d'alimentation CC au système.) CO-100/P1301 Series | User Manual...
  • Page 32 Remote Power Button Remote Power LED Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) CO-100/P1301 Series | User Manual...

  • Page 33: Optional Module Pin Definition & Settings

    Default setting of Pin1 to Pin4 is OFF/ON/ON/ON. 24V_12V_1 (on the module)：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 24V Car Battery Input (Default) Right 12V Car Battery Input CO-100/P1301 Series | User Manual...

  • Page 34: Chapter 3 System Setup

    Chapter 3 System Setup CO-100/P1301 Series | User Manual...

  • Page 35: Removing Top Cover

    Step 1. Loosen the 8 screws of front and rear panel, then place them aside. Step 2. Remove the cover from the chassis. Step 3. Place the top cover gently. CO-100/P1301 Series | User Manual...

  • Page 36: Installing So-Dimm Memory

    Step 2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° Step 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. CO-100/P1301 Series | User Manual...

  • Page 37: Installing M.2 Key B Card

    Step 2. Insert the M.2 Key B card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. Step 3. Press down the module and fasten the screw to secure the module. CO-100/P1301 Series | User Manual...

  • Page 38: Key B Type 3042

    Secure the bracket in place and fasten the screw. Step 3. Insert the M.2 Key B card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° CO-100/P1301 Series | User Manual...

  • Page 39: Installing M.2 Key E Card

    Step 2. Tilt the M.2 Key E card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Step 3. Press the card down and secure it with one screw. CO-100/P1301 Series | User Manual...

  • Page 40: Installing Antenna(S)

    Step 1. Remove the antenna hole cover(s) on the front or the side panel. Step 2. Have the antenna jack penetrate through the hole. Step 3. Put on the washer and fasten the nut with the antenna jack. CO-100/P1301 Series | User Manual...
  • Page 41 Step 4. Assemble the antenna and antenna jack together. Step 5. Attach the RF connector at another end of cable onto the module. CO-100/P1301 Series | User Manual...

  • Page 42: Installing Cpu Thermal Pad

    Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le couvercle du châssis du système, assurez-vous que le film protecteur sur le coussin thermique a été retiré !d'alimentation CC au système.) CO-100/P1301 Series | User Manual...

  • Page 43: Installing Top Cover

    3.7 Installing Top Cover Step 1. Put on the cover. Step2. Fasten the 8 screws to fix the cover. CO-100/P1301 Series | User Manual...

  • Page 44: Installing Sata Hard Drive

    Step 4. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. CO-100/P1301 Series | User Manual...
  • Page 45 Step 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. Step 6. Fasten the screw on the HDD bracket. Step 7. Fasten the 2 screws on the front panel. CO-100/P1301 Series | User Manual...

  • Page 46: Installing Sim Card

    Step 1. Loosen the 2 screws on front panel to remove cover plate. Step 2. SIM card slot is at the front panel of the system. Step 3. Insert the SIM card until you hear a click sound; that indicates the installation is complete. CO-100/P1301 Series | User Manual...

  • Page 47: Installing Cfm Modules

    2 screws to fix it. Step 3. Loosen the 2 screws on front panel to remove cover plate. Step 4. IGN function switch will be seen at the front panel of the system. CO-100/P1301 Series | User Manual...

  • Page 48: Cfm-Poe02

    Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! (Avant de mettre le bloc thermique (à l'étape suivante), veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) CO-100/P1301 Series | User Manual...
  • Page 49 été retiré !d'alimentation CC au système.) Step 6. When the system is power on, please note that the POE LED will light on if the POE module is properly installed. PoE LED CO-100/P1301 Series | User Manual...

  • Page 50: Disassembling The Co Display Module

    CO-W121C CO-119C CO-119C is essentially identical to CO-W121C in terms of installation, with the only difference being the design of the Mounting Bracket. The following steps will demonstrate the installation using CO-W121C as an example. CO-100/P1301 Series | User Manual...

  • Page 51: Fixing From Front Side

    3.12.2. 3.12.1 Fixing from front side Step 2. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-100/P1301 Series | User Manual...

  • Page 52: Fixing From Rear Side

    If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-100/P1301 Series | User Manual...

  • Page 53: Installing Flat Mount

    CO-119C is essentially identical to CO-W121C in terms of installation, with the only difference being the design of the Mounting Bracket. The following steps will demonstrate the installation using CO-W121C as an example. Step 1. Locate the left and right-side mounting brackets. CO-100/P1301 Series | User Manual...
  • Page 54 Step 2. Remove the two screws on the left and right-side mounting brackets. Step 3. Loosen the three screws on the left and right-side mounting brackets. Step 4. Measure the rack thickness. The thickness is measured 3mm in this example. CO-100/P1301 Series | User Manual...
  • Page 55 Step 6. Fasten the two screws on the left and right-side mounting brackets. Step 7. Fasten the three screws on the left and right-side mounting brackets. Step 8. Locate the top and bottom-side mounting brackets. CO-100/P1301 Series | User Manual...
  • Page 56 Step 11. According to the thickness = 3mm for the example, push down the top and bottom-side mounting brackets to the place at screw hole = 3mm. Step 12. Fasten the two screws on the top and bottom-side mounting brackets. CO-100/P1301 Series | User Manual...

  • Page 57: Fixing From Front Side

    3.13.2. 3.13.1 Fixing from front side Step 15. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-100/P1301 Series | User Manual...

  • Page 58: Fixing From Rear Side

    If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-100/P1301 Series | User Manual...

  • Page 59: Disassemble The Mounting Brackets

    Mounting Bracket. The following steps will demonstrate the installation using CO-119C as an example. Before the installation of VESA mount and rack mount, user need to disassemble the mounting brackets on the CO display module first. Step 1. Remove the 8 screws. CO-100/P1301 Series | User Manual...
  • Page 60 Step 2. Remove the three screws on each side of the mounting brackets. Step 4. Remove the four mounting brackets. CO-100/P1301 Series | User Manual...

  • Page 61: Installing Vesa Mount

    Step 1. The following picture uses a panel PC (P1301+ Display Module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. Panel PC (P1301+ Display Module) VESA Stand CO-100/P1301 Series | User Manual...

  • Page 62: Installing Rack Mount

    19”~21.5” Panel PC series. P2002E P2002/P1001E P1001/P1101/ P1201/P1301/P2102/ P2102E/P2202/P2202E Step 3. Assemble the brackets and the rack mount base by securing 4 M5x6 screws on each side. Side View Side View Bottom View CO-100/P1301 Series | User Manual...
  • Page 63 Step 4. Locate the mounting holes on the two rack mount brackets. Step 5. Assemble two rack mount brackets and the rack by fastening 4 M5x12 screws through the mounting holes on the two rack mount brackets, flat washers and hex nuts at each side. Rack CO-100/P1301 Series | User Manual...

  • Page 64: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CO-100/P1301 Series | User Manual...

  • Page 65: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CO-100/P1301 Series | User Manual...

  • Page 66: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ◼ System Date Set the date. Please use <Tab> to switch between date elements. ◼ System Time Set the time. Please use <Tab> to switch between time elements. CO-100/P1301 Series | User Manual...

  • Page 67: Advanced Setup

    Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. ◼ Active Processor Cores [All] Number of cores to enable in each processor package. CO-100/P1301 Series | User Manual...

  • Page 68: Sata Configuration

    Allows you to select which mode SATA controller will operates. Configuration options: [AHCI] ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH-FW Configuration CO-100/P1301 Series | User Manual...

  • Page 69: Trusted Computing Settings

    Enables or disables Security Device Support function. ◼ SHA256 PCR Bank [Enabled] Enables or disables SHA256 PCR Bank function. ◼ SHA384 PCR Bank [Disabled] Enables or disables SHA384 PCR Bank function. ◼ SM3_256 PCR Bank [Disabled] CO-100/P1301 Series | User Manual...
  • Page 70 Enables or disables Storage Hierarchy function. ◼ Endorsement Hierarchy [Enabled] Enables or disables Endorsement Hierarchy function. ◼ Physical Presence Spec Version [1.3] Allows you to select which mode Physical Presence Spec Version will operate. Configuration options: [1.2], [1.3] CO-100/P1301 Series | User Manual...

  • Page 71: Acpi Settings

    [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.6 F81966 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal setting for the Super IO Device. CO-100/P1301 Series | User Manual...
  • Page 72 Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog Mode [Sec] Allows to set watchdog timer unit <Sec> or <Min>. ◼ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. CO-100/P1301 Series | User Manual...

  • Page 73: Hardware Monitor

    Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. CO-100/P1301 Series | User Manual...

  • Page 74: Serial Port Console Redirection

    Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. CO-100/P1301 Series | User Manual...

  • Page 75: Network Stack Configuration

    4.3.11 Network Stack Configuration ◼ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.13 CSM Configuration ■ CSM Support [Disabled] Enables or disables compatibility support module. CO-100/P1301 Series | User Manual...

  • Page 76: Nvme Configuration

    The screen allows users to select options for the NVMe configuration, and change the value of the selected option. If there is NVMe Device detected, the options will show as the NVMe Device is found. CO-100/P1301 Series | User Manual...

  • Page 77: Chipset Setup

    This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ◼ Memory Configuration This item displays detailed memory configuration in the system. ◼ VT-d [Enabled] Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) capability. CO-100/P1301 Series | User Manual...

  • Page 78: Pch-Io Configuration

    ❑ PCI Express Root Port (CN1) ◼ PCI Express Root Port [Enabled] Enables or disables PCI Express Root Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. CO-100/P1301 Series | User Manual...
  • Page 79 Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Keep last state]: Enters to the last power state before a power failure. CO-100/P1301 Series | User Manual...

  • Page 80: Security Setup

    Security Boot ❑ Secure Boot [Disabled] Enable or disable Secure Boot function. (Enable this function to change the following settings.) ❑ Secure Boot Mode [Standard] Allows you to select Secure Boor Mode. Configuration options: [Standard] [Custom]. CO-100/P1301 Series | User Manual...

  • Page 81: Boot Setup

    Allows you to enable or disable Quiet Boot function. ◼ Fast Boot Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. CO-100/P1301 Series | User Manual...

  • Page 82: Save & Exit

    Save as User Defaults This item allows you to save the changes done so far as user defaults. ◼ Restore User Defaults This item allows you to restore the user defaults to all the setup options. CO-100/P1301 Series | User Manual...

  • Page 83: Chapter 5 Product Application

    Chapter 5 Product Application CO-100/P1301 Series | User Manual...

  • Page 84: Where To Download Drivers

    5.1 Where to download drivers? Please go to the CINCOZE website to download the drivers for CO-100/P1301 series. 5.2 Where to find the technical documents? Please go to the CINCOZE website to find the technical documents for CO-100/P1301 series. Catalog...
  • Page 85 © 2024 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
