Summary of Contents for DAPAudio LT-15HL
- Page 1 LT-15HL ORDERCODE D3483 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio LT-15HL™ Product Guide Warning ..................................2 Unpacking Instructions ............................2 Safety-instructions ..............................2 Operating Determinations ............................3 Return Procedure ..............................3 Claims ..................................3 Description ..................................4 Features ..................................4 Overview ...................................4 Back Panel ................................5 Operation ..................................5 Setup example ................................6 Frequency response ..............................7 Maintenance .................................7... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP LT-15HL • IEC cable • User manual... -
Page 5: Operating Determinations
If system is dropped or struck, disconnect the system immediately. Have a qualified engineer inspect for safety before operating. If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Don’t use the until it has reached room temperature. -
Page 6: Description

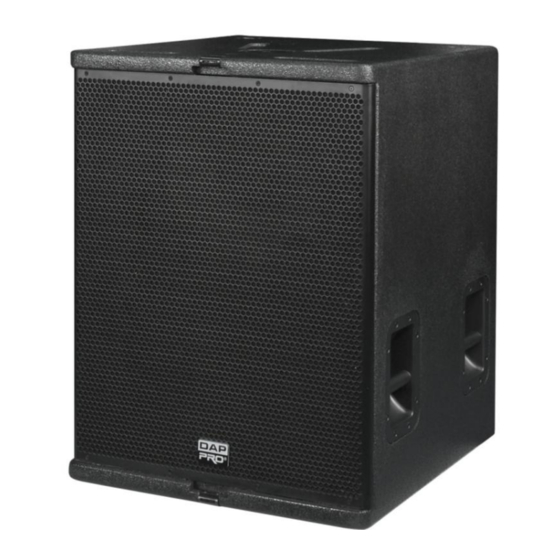

Description of the device Features The LT-15HL is a 15” horn loaded bass speaker. • High performance horn loaded bass speaker • 1 high power 15 inch drivers • Strong metal handles • Interlock system for safe ground stacking • Ideal in combination with the LT-212 and LT-215 •... -
Page 7: Back Panel
Only the 1+ and 1- terminal of the Speakon socket are connected. Operation Installation Remove all packing materials from the LT-15HL. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Setup Example
Set up example... -
Page 9: Frequency Response
Frequency response Maintenance The LT-15HL requires almost no maintenance. However, you should keep the unit clean. Wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Wipe the audio connections with a damp cloth. Make sure connections are... -
Page 10: Product Specifications
Product Specifications • 15” horn loaded PA subwoofer • 4 Metal Handgrips • Woofer: 1x ER-A1599L, Alu Basket 8 Ohm, 4” Voice Coil • Nominal Impedance: 8 Ohm • Power Handling: 600 Watt Continuous 1200 Watt Program 2400 Watt Peak •... - Page 11 2011 Dap Audio.
