DAPAudio pss-108 Product Manual

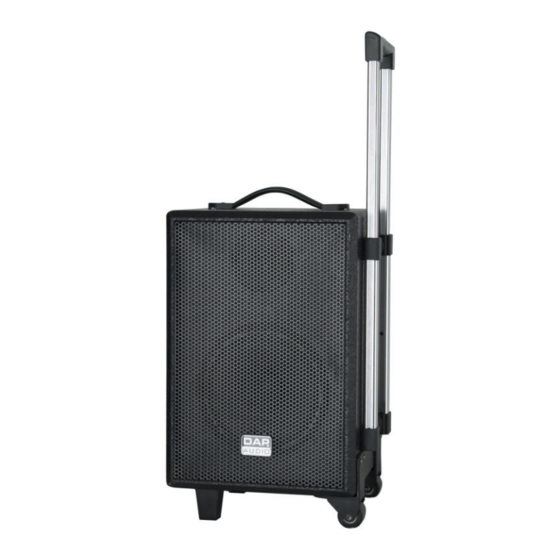

Portable sound system with cd player and two wireless microphones
Hide thumbs Also See for pss-108:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
PSS-108
PSS-110
PSS-112
ORDERCODE D2603
ORDERCODE D2604
ORDERCODE D2605
v2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pss-108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAPAudio pss-108

Summary of Contents for DAPAudio pss-108

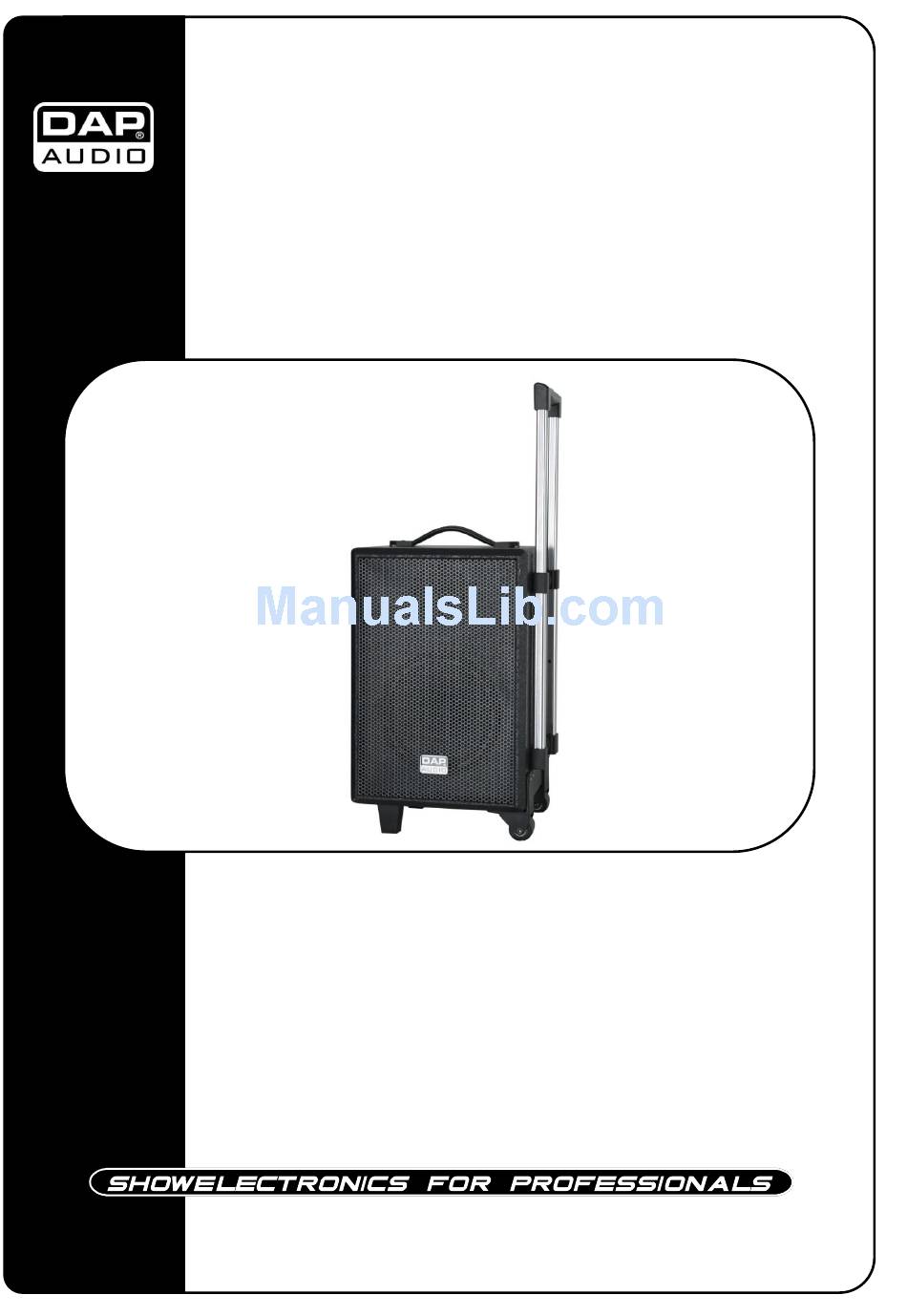

  • Page 1 PSS-108 ORDERCODE D2603 PSS-110 ORDERCODE D2604 PSS-112 ORDERCODE D2605...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.

  • Page 3: Table Of Contents

    Dap Audio Dap Audio PSS Series Product Guide Warning ..................................2 Unpacking Instructions ............................2 Safety-instructions ..............................2 Operating Determinations ............................3 Return Procedure ..............................4 Claims ..................................4 Description ..................................5 Overview ...................................5 CD-player .................................6 Mixer ..................................9 Wireless Microphone ............................10 Remote Control ..............................11 Installation ................................... 12 Set Up and Operation ...............................

  • Page 4: Warning

    WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.

  • Page 5: Operating Determinations

    IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system.  Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...

  • Page 6: Return Procedure

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...

  • Page 7: Description

    Description of the device Features • Portable sound system with CD player and two wireless microphones • Built in self- charging battery pack • Output power maximum 25 Wrms • Built in Tuner/CD/USB/SD- player • 2 Wireless microphones included Overview Fig.

  • Page 8: Cd-Player

    CD-player Fig. 2 1) Mute Button Use this button to mute the output. 2) Mode Button This button lets you select Radio, aux, CD, USB, SD as a source for payback. You can’t select the CD, USB or SD slot if there is no media (CD, USB stick or SD card) inserted. 3) P-EQ Button Pressing the PEQ button gives you direct access to the P-EQ function.
  • Page 9 10) Band Button Use this button to select the desired band. Pressing the button several times let’s you select one of five bands as shown below. 11) Power Button Use the power button to turn the device on or off. 12) Volume/Select Control Press the control to select between the volume, bass, treble, fader or balance functions as shown below.
  • Page 10 Fig. 3 23) CD-slot 24) Eject Button Press this button to eject the CD. 25) Reset Button Press this button in case you need to reset the unit. Wireless Mic Receiver Fig. 4 26) Channel A Antenna connector 27) Channel A Audio level indicator Indicates the level of the incoming audio signal.

  • Page 11: Mixer

    Mixer Fig. 5 34) Mic 1 level Use this control to adjust the volume of the Mic 1 input (50). 35) Mic 2 level Use this control to adjust the volume of the Mic 2 input (51). 36) Mic 3 level Use this control to adjust the volume of the Mic 3 input (52).

  • Page 12: Wireless Microphone

    47) 115V/230V Selector Before plugging the into a wall socket, make sure that the 115V/230V Selector is set to the proper voltage. 48) REC output Stereo RCA line level output 49) Line Output ¼” mono unbalanced line level jack output 50) MIC 1 ¼”...

  • Page 13: Remote Control

    Remote control Fig. 6 56) PWR Button Use the power button to turn the radio/CD player on or off. 57) 1/►ΙΙ Button In CD/MP-3 mode you can use this button to start/pause playback. In Radio mode, pressing this button will select preset 1. 58) MOD Button This button lets you select Radio, aux, CD, USB, SD as a source for payback.

  • Page 14: Installation

    68) ◄ Button In CD/MP-3 mode: Press this button to skip to the beginning of the track. Press and hold this button to play the track fast backwards. In Radio mode: While searching for a station manually. The frequency will decrease each time you press the button.

  • Page 15: Operating On Battery Power

    Operating on battery power • Do not connect the power cable. • Switch the Power (43) switch to position I to run the device. • Switch the Power (43) switch to position 0 if you’re pausing, to save your batteries. •...

  • Page 16: Stop Playback

    6. Stop Playback • Press the Play/Pause (14, 57) button during playback to pause at that point. 7. Pausing • Press the Play/Pause (14, 57) button to switch between play and pause. • Playback resumes when the Play/Pause (14, 57) button is pressed again. Operation of the wireless microphones Inserting/replacing the battery We recommend powering the microphone by a 9 V PP3 alkaline battery.

  • Page 17: Approval

    Approval The DAP D2603, D2604 and D2605 are Class II wireless devices. 195,00 MHz and 202,00 MHz for use in: Germany, Italy, Luxemburg, Netherlands, Switzerland, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. The frequencies are checked on a regular basis.

  • Page 18: Declaration Of Conformity

    Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2006/95/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 19 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2004/108/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 20 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 301 489-1 V1.8.1:2008...
  • Page 21 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2006/95/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 22 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2004/108/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 23 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 301 489-1 V1.8.1:2008 EN 301 489-9 V1.4.1:2007 EN 300 422-1 V1.3.2:2008...
  • Page 24 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-112 Portable Speaker Syst em 12" Model No.: D2605 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2006/95/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 25 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-112 Portable Speaker Syst em 12" Model No.: D2605 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2004/108/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 26 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-112 Portable Speaker Syst em 12" Model No.: D2605 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 301 489-1 V1.8.1:2008 EN 301 489-9 V1.4.1:2007 EN 300 422-1 V1.3.2:2008...

  • Page 27: Connection Cables

    Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.

  • Page 28: Maintenance

    Maintenance The PSS Series requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean.

  • Page 29: Product Specifications

    Product Specification 1. PSS-08 Power supply: AC 115/230 V - 50/60 Hz, Battery: 3 X 6V7, 2AH Battery life: >5H Fuse: T1,6A Rated power: 25 Wrms (4Ω) Speakers: 8” Low driver 3” Mid/high driver Frequency response: 50Hz-20kHz (aux) 50Hz-10kHz (mic) Inputs: 3x Mic (-44dB) 1x Stereo Aux (-14dB)
  • Page 30 Product Specification 2. PSS-10 Power supply: AC 115/230 V - 50/60 Hz, Battery: 3 X 6V7, 2AH Battery life: >5H Fuse: T1,6A Rated power: 25 Wrms (4Ω) Speakers: 10” Low driver 3” Mid/high driver Frequency response: 50Hz-20kHz (aux) 50Hz-10kHz (mic) Inputs: 3x Mic (-44dB) 1x Stereo Aux (-14dB)
  • Page 31 Product Specification 3. PSS-12 Power supply: AC 115/230 V - 50/60 Hz, Battery: 3 X 6V7, 2AH Battery life: >5H Fuse: T1,6A Rated power: 25 Wrms (4Ω) Frequency response: 50Hz-20kHz (aux) 50Hz-10kHz (mic) Inputs: 3x Mic (-44dB) 1x Stereo Aux (-14dB) Outputs: 1x Tape Rec (-8,5dB) 1x Line Out (-8,5dB)
  • Page 32 2011 Dap Audio.
