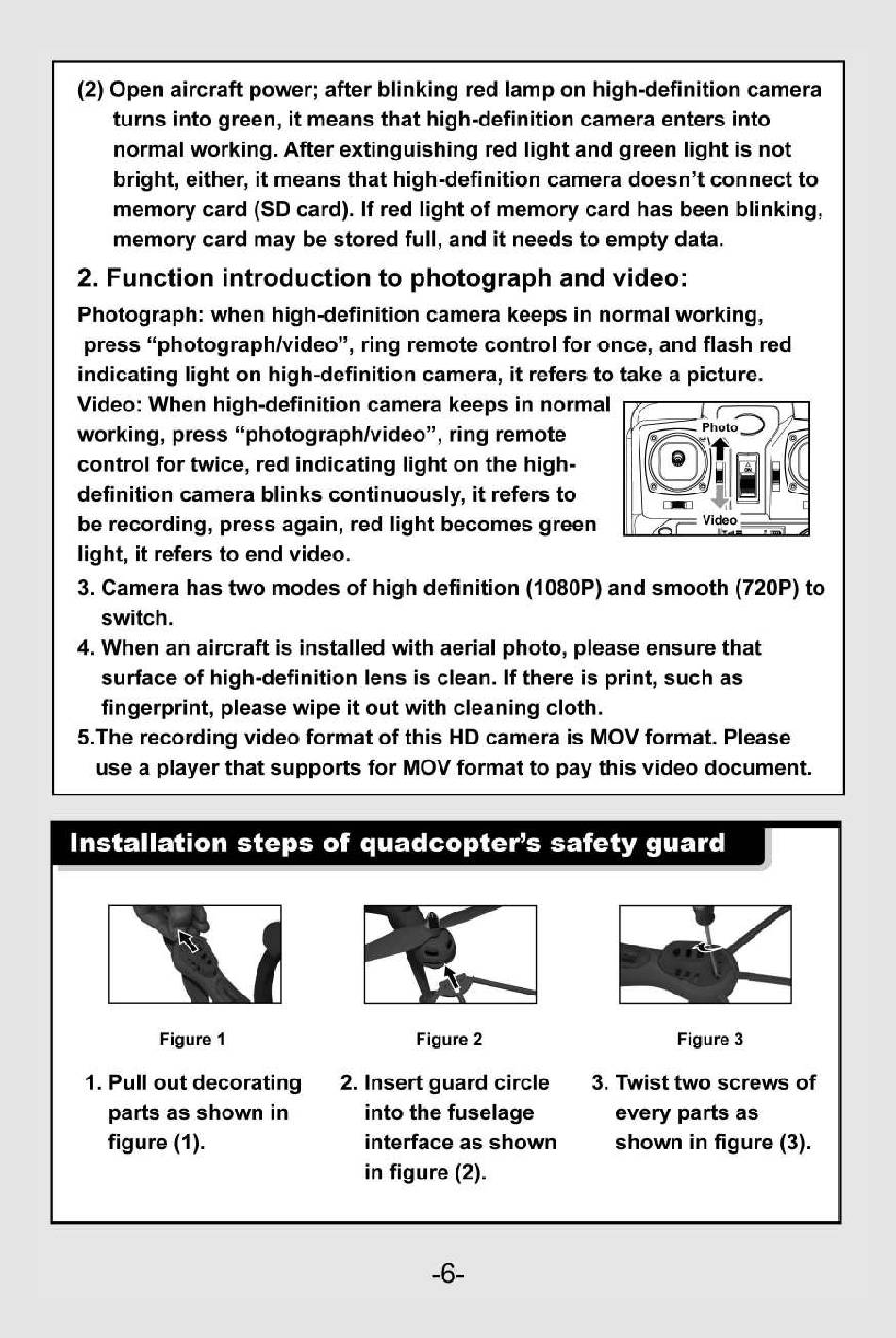

(2) Open aircraft power; after blinking red lamp on high-definition camera
turns into green, it means that high-definition camera enters into
normal working. After extinguishing red light and green light is not
bright, either, it means that high-definition camera doesn't connect to
memory card (SD card). If red light of memory card has been blinking,
memory card may be stored full, and it needs to empty data.
2. Function introduction to photograph and video:
Photograph: when high-definition camera keeps in normal working,
press "photograph/video", ring remote control for once, and flash red
indicating light on high-definition camera, it refers to take a picture.
Video: When high-definition camera keeps in normal
working, press "photograph/video", ring remote
control for twice, red indicating light on the high-
definition camera blinks continuously, it refers to
be recording, press again, red light becomes green
light, it refers to end video.
3. Camera has two modes of high definition (1080P) and smooth (720P) to
switch.
4. When an aircraft is installed with aerial photo, please ensure that
surface of high-definition lens is clean. If there is print, such as
fingerprint, please wipe it out with cleaning cloth.
5.The recording video format of this HD camera is MOV format. Please
use a player that supports for MOV format to pay this video document.
- Photo
n
j
Video
n
Installation steps of quadcopter's safety guard
Figure 1 Figure 2
Figure 3
1. Pull out decorating
parts as shown in
figure (1).
2. Insert guard circle
into the fuselage
interface as shown
in figure (2).
3. Twist two screws of
every parts as
shown in figure (3).
-6-
