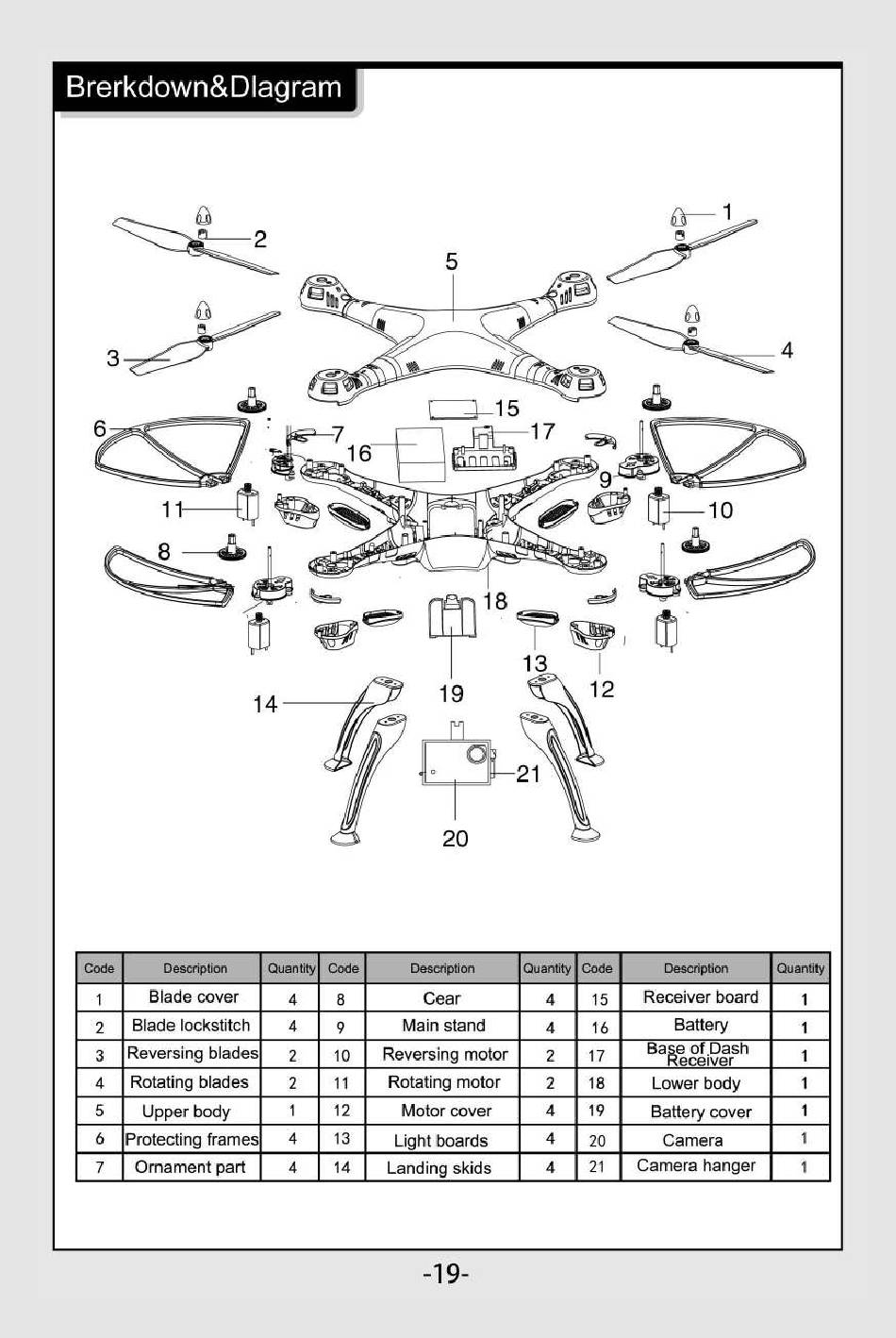

Brerkdown&Dlagram
Code Description Quantity Code Description Quantity Code Description Quantity
1
Blade cover
4 8
Cear
4
15
Receiver board
1
2
Blade lockstitch
4 9 Main stand
4 16
Battery
1
3 Reversing blades
2 10 Reversing motor
2 17
Baae of.Dash
Receiver
1
4
Rotating blades
2 11
Rotating motor
2 18 Lower body 1
5
Upper body
1 12
Motor cover
4 19
Battery cover
1
6
Protecting frames
4
13
Light boards
4 20 Camera
1
7 Ornament part 4 14
Landing skids
4
21
Camera hanger
1
