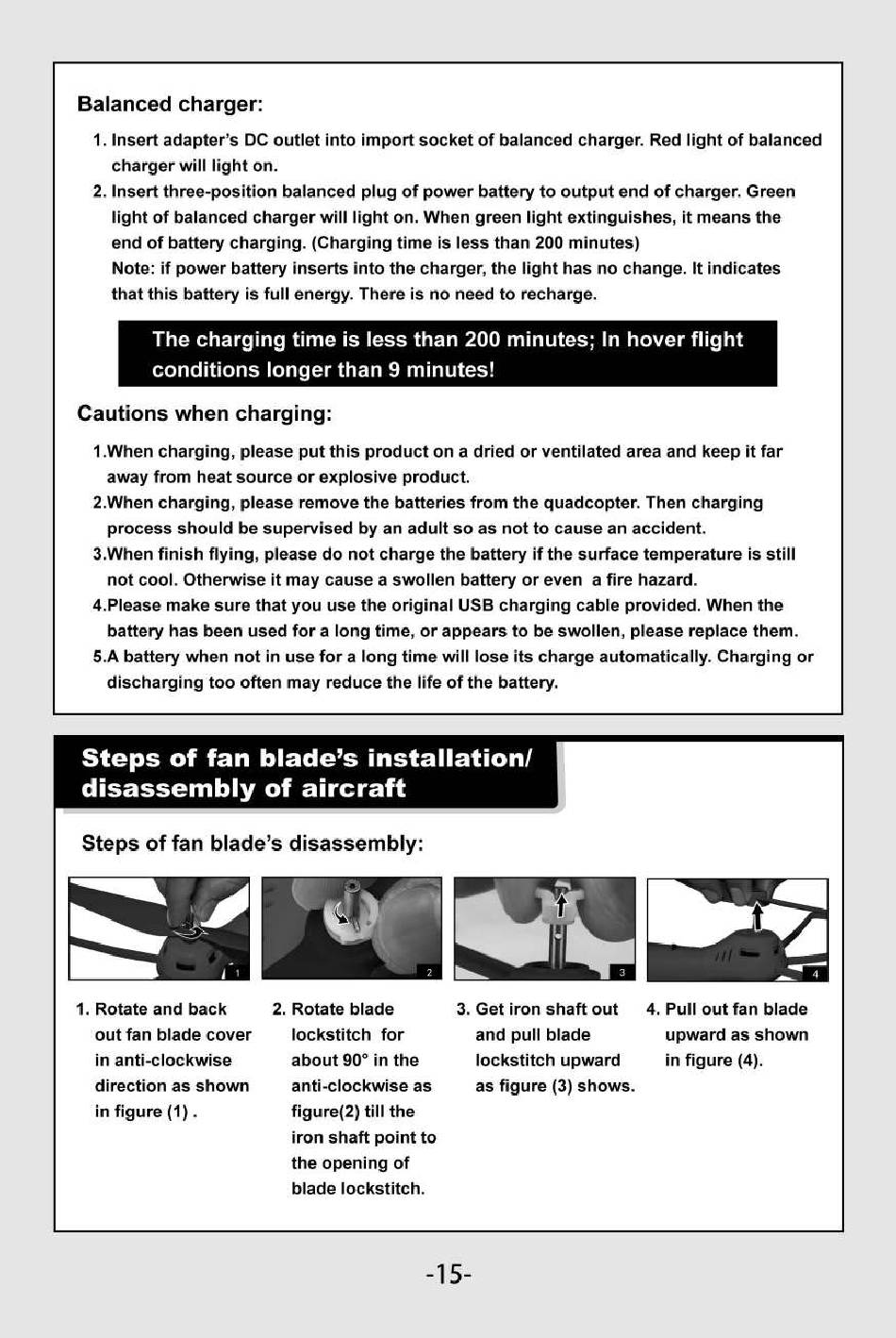

Balanced charger:
1. Insert adapter's DC outlet into import socket of balanced charger. Red light of balanced
charger will light on.
2. Insert three-position balanced plug of power battery to output end of charger. Green
light of balanced charger will light on. When green light extinguishes, it means the
end of battery charging. (Charging time is less than 200 minutes)
Note: if power battery inserts into the charger, the light has no change. It indicates
that this battery is full energy. There is no need to recharge.
The charging time is less than 200 minutes; In hover flight
conditions longer than 9 minutes!
Cautions when charging:
1.When charging, please put this product on a dried or ventilated area and keep it far
away from heat source or explosive product.
2.When charging, please remove the batteries from the quadcopter. Then charging
process should be supervised by an adult so as not to cause an accident.
3.When finish flying, please do not charge the battery if the surface temperature is still
not cool. Otherwise it may cause a swollen battery or even a fire hazard.
4.Please make sure that you use the original USB charging cable provided. When the
battery has been used for a long time, or appears to be swollen, please replace them.
5.A battery when not in use for a long time will lose its charge automatically. Charging or
discharging too often may reduce the life of the battery.
141
k1 1 12
-
41
Steps of fan blade's installation/
disassembly of aircraft
Steps of fan blade's disassembly:
1. Rotate and back
out fan blade cover
in anti-clockwise
direction as shown
in figure (1) .
2. Rotate blade
lockstitch for
about 90° in the
anti-clockwise as
figure(2) till the
iron shaft point to
the opening of
blade lockstitch.
*i
3. Get iron shaft out
and pull blade
lockstitch upward
as figure (3) shows.
4. Pull out fan blade
upward as shown
in figure (4).
