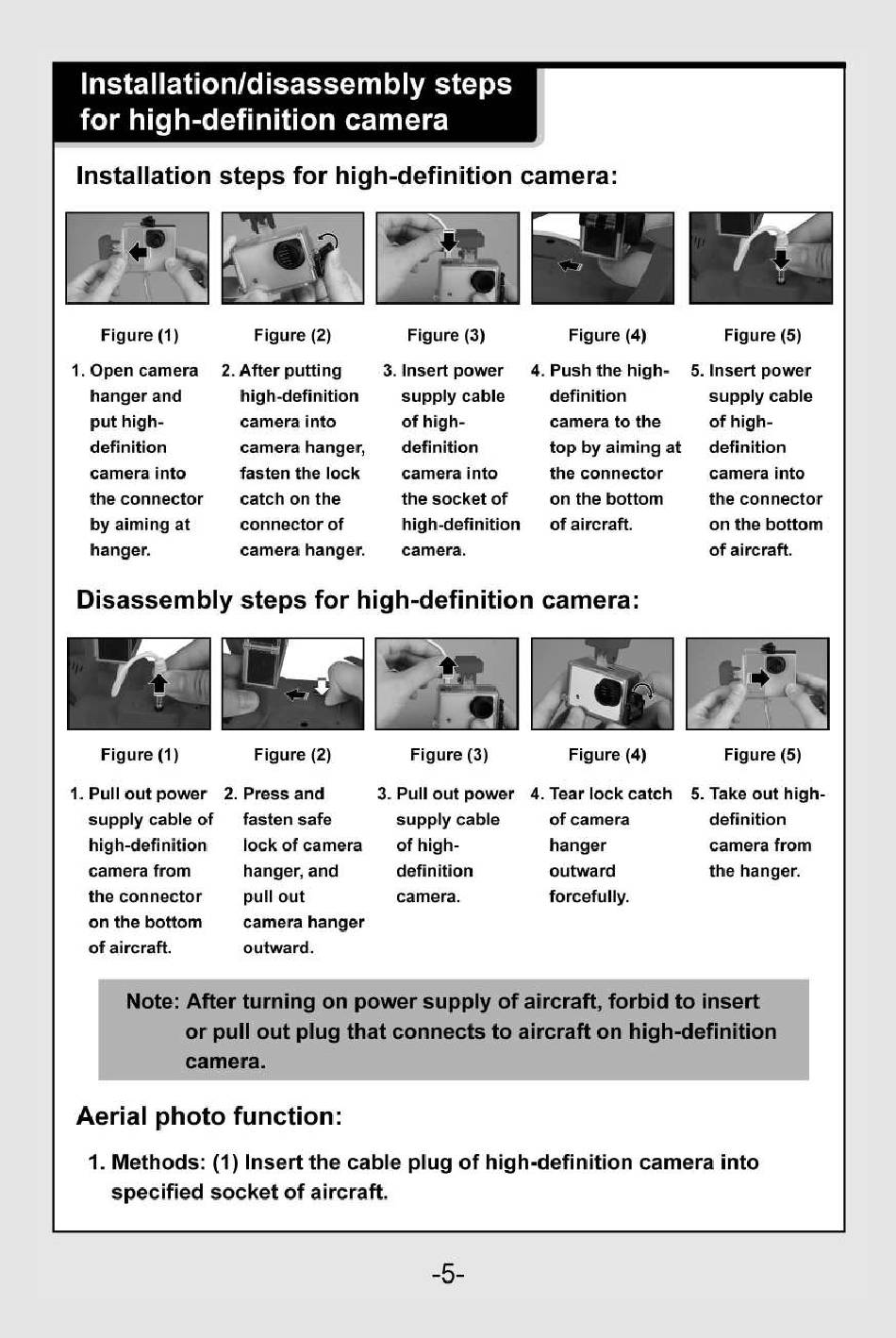

Installation/disassembly steps
for high-definition camera
Installation steps for high-definition camera:
4
C
Figure (1)
1 Open camera
hanger and
put high-
definition
camera into
the connector
by aiming at
hanger.
Figure (2)
2. After putting
high-definition
camera into
camera hanger,
fasten the lock
catch on the
connector of
camera hanger.
Figure (3)
3. Insert power
supply cable
of high-
definition
camera into
the socket of
high-definition
camera.
Figure (4)
4. Push the high-
definition
camera to the
top by aiming at
the connector
on the bottom
of aircraft.
Figure (5)
5. Insert power
supply cable
of high-
definition
camera into
the connector
on the bottom
of aircraft.
Disassembly steps for high-definition camera:
♦ ® A
Figure (5)
1. Pull out power
supply cable of
high-definition
camera from
the connector
on the bottom
of aircraft.
2. Press and
fasten safe
lock of camera
hanger, and
pull out
camera hanger
outward.
3. Pull out power
supply cable
of high-
definition
camera.
4. Tear lock catch
of camera
hanger
outward
forcefully.
5. Take out high-
definition
camera from
the hanger.
Note: After turning on power supply of aircraft, forbid to insert
or pull out plug that connects to aircraft on high-definition
camera.
Aerial photo function:
1. Methods: (1) Insert the cable plug of high-definition camera into
specified socket of aircraft.
