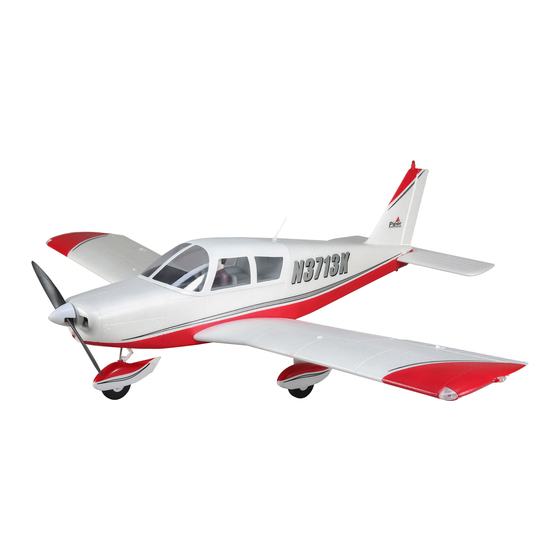

Piper Cherokee 1.3m
Piper Cherokee 1.3m
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
569006
Created 11/23
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFL05450
EFL05475

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-FLITE Piper Cherokee 1.3m and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-FLITE Piper Cherokee 1.3m

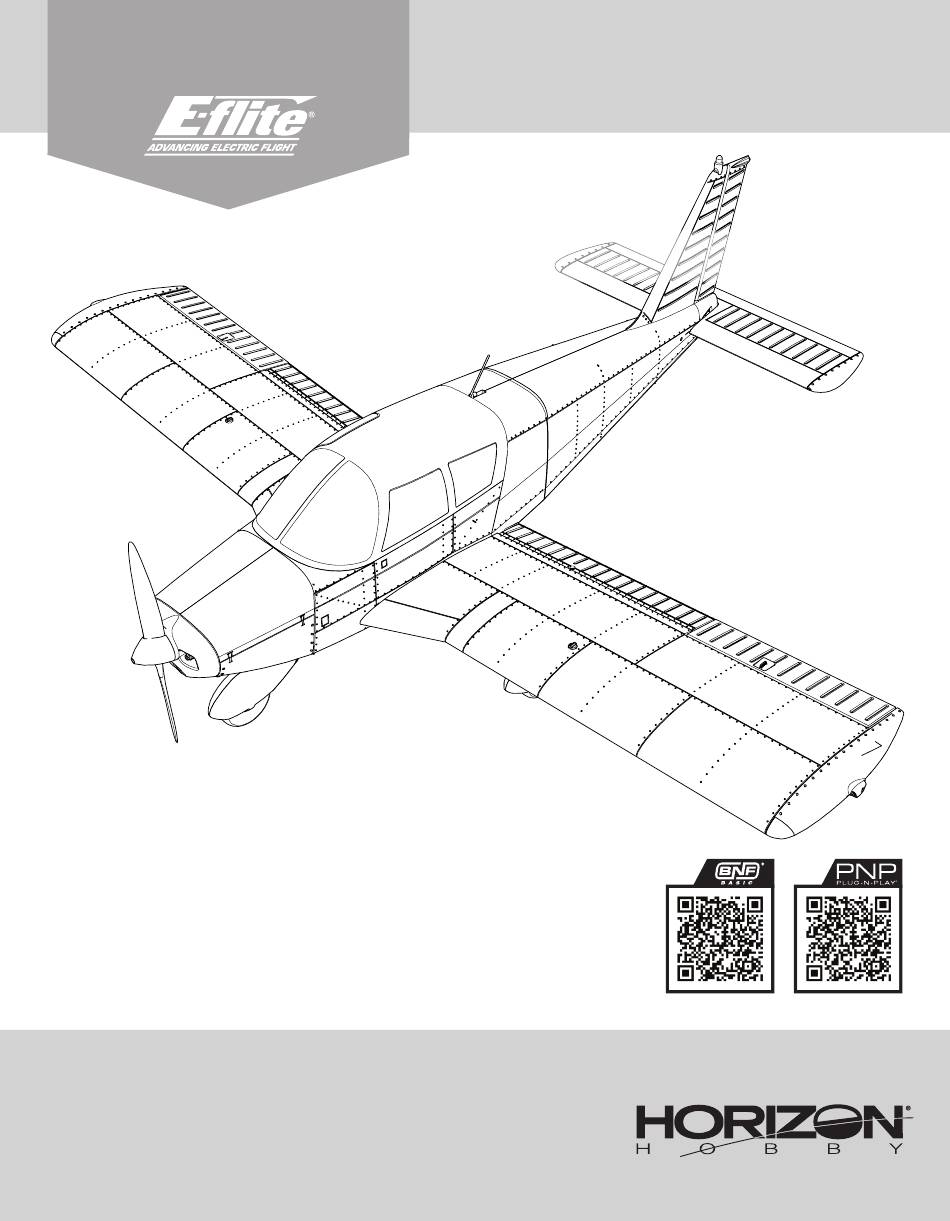

  • Page 1 Piper Cherokee 1.3m Piper Cherokee 1.3m Instruction Manual Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Bedienungsanleitung Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Registration Specifications Wingspan 51.6 in. (1310mm) Register your product today to join our mailing list and keep Length 41.0 in. (1040mm) up to date with product updates, offers and E-flite news. ® Without Battery: 49.6 oz. (1405g) Weight With Recommended 4S 2200mAh Flight Battery: 57.5 oz. (1640g) Included Equipment Spektrum AR631 6CH SAFE...
  • Page 4: Low Voltage Cutoff (Lvc)

    Low Voltage Cutoff (LVC) When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The Always disconnect and remove the Li-Po battery from the aircraft after each flight. aircraft’s ESC protects the flight battery from over-discharge using Low Voltage Charge your Li-Po battery to about half capacity before storage.
  • Page 5 Transmitter Setup (BNF Basic) DX Series Transmitter Setup 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and click the scroll wheel. Select YES. 2. Go to Model Select and choose Add New Model at the bottom of the list. The system asks if you want to create a new model, select Create. 3.
  • Page 6: Aircraft Assembly

    Aircraft Assembly Horizontal Stabilizer Installation M1.5 x 8mm 1. Remove the three M1.5 x 8mm self tapping screws holding the tail cover in Phillips Head place. Self-Tapping 2. Locate the horizontal stabilizer on the elevator pivot assembly, Screw and secure it to the assembly with two M3 x 8mm screws 3.
  • Page 7 Aircraft Assembly Wing Installation IMPORTANT: Hands-free servo connectors are installed in the wing and fuse- 2. Slide the wings onto the wing tube until they fully seat to the fuselage. lage mating surfaces. Ensure that they slide together correctly. 3. Secure the wing halves in position using the included M3 x 8mm screws. 1.
  • Page 8: Control Surface Centering

    Aircraft Assembly Antenna Installation M2 x 5mm 1. Place the dummy antenna on the front of the hatch latch. Phillips Head 2. Secure the dummy antenna into place with the included M2 x 5mm screw, Self-Tapping as shown. Screw Propeller Installation M3 x 8mm 1.
  • Page 9: General Binding Tips And Failsafe

    General Binding Tips and Failsafe • The included receiver has been specifically programmed for operation of • Once bound, the receiver will retain its bind settings for that transmitter until this aircraft. Refer to the receiver manual for correct setup if the receiver is you re-bind.
  • Page 10: Battery Installation And Esc Arming

    Battery Installation and ESC Arming We recommend the Spektrum 14.8V 2200mAh 4S 30C Smart LiPo Battery: ™ IC3 (SPMX22004S30). Refer to the Optional Accessories list for additional recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the recommended battery packs to fit in the fuselage.
  • Page 11: Control Surface Direction

    Disabling and Enabling SAFE Select DXe and DXS Transmitters By default, the SAFE Select function of your aircraft is enabled and assigned to the Switch A is the FMODE switch on the these transmitters, and the switch needs to gear channel switch (channel 5). If you do not wish to have access to SAFE Select be toggled between position 0 and 2 when disabling/enabling SAFE Select.
  • Page 12: As3X Control Response Test (Bnf Basic)

    AS3X Control Response Test (BNF Basic) This test ensures that the AS3X ® control system is functioning properly. Assemble Aircraft Movement AS3X Reaction the aircraft and bind your transmitter to the receiver before performing this test. 1. Raise the throttle just above 25%, then lower the throttle to activate AS3X technology.
  • Page 13: Flying Tips And Repairs

    Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. NOTICE: When using flaps with this airplane, down elevator to flap mixing is required. Failure to do so may result in loss of control or a crash. Flying Field NOTICE: If a crash is imminent, reduce the throttle and trim fully.
  • Page 14: Motor Service

    Motor Service CAUTION: Always disconnect the flight battery before performing M3 x 6mm motor service. Phillips Head Disassembly Machine Screw M3 x 14mm Phillips Head 1. Remove the spinner screw and the spinner. Self Tapping Screw 2. Use a 10mm wrench or an adjustable wrench to remove the propeller nut, propeller washer, propeller, and propeller adapter from the motor shaft.
  • Page 15: As3X Troubleshooting Guide

    AS3X Troubleshooting Guide Problem Possible Cause Solution Damaged propeller or spinner Replace propeller or spinner Imbalanced propeller Balance the propeller Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts...
  • Page 16: Replacement Parts

    Replacement Parts Recommended Equipment Part # Description Part # Description EFL-1135 Wing Set: Cherokee 1.3m Blue ONXT1000 Ultimate Air/Surface Startup Tool Set EFL-1136 Fuselage: Cherokee 1.3m Blue SPMR8200 NX8 8-Channel DSMX Transmitter Only EFL-1137 Nose Gear Steering Set: Cherokee 1.3m SPMX224S30 14.8V 2200mAh 4S 30C Smart G2 LiPo Battery: IC3 EFL-1138...
  • Page 17: Limited Warranty

    (iii) modification of or to any part of the Product, (iv) attempted Return Merchandise Authorization (RMA) number. Pack the Product securely using a service by anyone other than a Horizon Hobby authorized service center, (v) Product shipping carton. Please note that original boxes may be included, but are not designed not purchased from an authorized Horizon dealer, (vi) Product not compliant with to withstand the rigors of shipping without additional protection.
  • Page 18: Fcc Information

    Radio Equipment Directive 2014/53/EU; RoHS 2 Directive 2011/65/EU, RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: EFL Cherokee 1.3m PNP (EFL05475): Hereby, Horizon Hobby, LLC declares that Horizon Hobby, GmbH the device is in compliance with the following: EU EMC Directive 2014/30/EU;...
  • Page 19 E-flite, AS3X, SAFE, the SAFE logo, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, the BNF logo, Plug-N-Play, Z-Foam, ModelMatch, IC3, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
