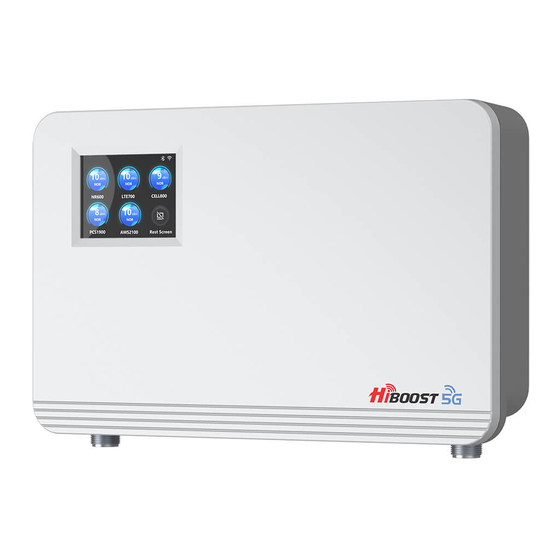

Pro20T-6S-IOT
Pro25T-6S-IOT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro20T-6S-IOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HiBoost Pro20T-6S-IOT

  • Page 1 Boost Your Bars User Manual Professional Mobile Signal Booster Pro20T-6S-IOT Pro25T-6S-IOT 3150 Premier Drive,Suite 130, Irving, TX 75063 (469)871-2552 review@hiboost.com www.hiboost.com...
  • Page 3: Table Of Contents

    CONTENTS Package Content Introduction How it works Signal booster status Manual gain control (MGC) Technical Specifications Authorized Accessories List FCC and ISEDC Statements Warning and Statement Return and Warranty Policies...
  • Page 4: Package Content

    Pro25T-6S-IOT Booster Power Supply Other Accessaries We provide all accessories needed for the signal booster. For more information please visit www.hiboost.com. Warning: Un-authorized antennas, cables, and/or coupling devices are prohibited by new FCC rules, Please contact FCC for details: 1(888)-CALL-FCC.
  • Page 5: Introduction

    HiBoost cell Booster's exclusive cloud-based Signal Supervisor mobile application and LCD display allow users to monitor the live status of HiBoost cell phone signal boosters directly from the LCD display or remotely from a mobile device anywhere at any time.
  • Page 6 Outdoor Antenna Cable Indoor Antenna Booster Pro20T-6S-IOT/Pro25T-6S-IOT Signal Booster Outdoor Antenna Indoor Antenna Cable 1.2 Installation Preparation Before you install •Make sure you have sufficient cable length between the proposed outdoor/indoor antenna location and booster connector. •Make sure the position you install the booster is near to an existing electrical outlet, well ventilated, and away from excessive heat, moisture, and direct sunlight.
  • Page 7 3.Install the indoor antennas where you want to improve the signal level. 4.Mount the booster, connect the cables from the outdoor antenna and indoor antenna at the designated ports, and connect the booster to the AC supply (make sure all the cables are connected before applying power). 1.3 How to find the location with the strongest received signal The outdoor signal strength the booster receives directly affects the efficiency of the indoor coverage.
  • Page 8 LCD display value, 12dBm-17dBm is the best), it means the present location is the best for ensuring that the booster has maximized performance. The maximum downlink outputpower for Pro20T-6S-IOT is 12dBm, and the maximum downlink gain is 70dB. The maximum downlink outputpower for Pro25T-6S-IOT is 17dBm, and the maximum downlink gain is 75dB.
  • Page 9 Outdoor wide band directional antenna installation for reference Outdoor wide band panel antenna installation for reference Note1: Be sure the cradle is at the desired height and rotated toward the strongest cellular signal before tightening the nuts. Do not over tighten. Note2: If the outdoor signal is lower than -110dBm, it is recommended to use a higher gain antenna such as a parabolic antenna.
  • Page 10 Indoor wide band panel antenna installation for reference Indoor wide band dome antenna installation fo「 reference 1.6 Install your signal booster The signal booster should be mounted in an easily accessible area so it's easy to perform general maintenance. The area is properly ventilated and not exposed to excessive heat, moisture and/or direct sunlight.
  • Page 11 1.7 Run coaxial cable Loosely run the coaxial cable from your outdoor antenna to your booster connector marked "Outdoor". We recommend applying waterproof tape to fully waterproof the connection. Connect the indoor antenna cables from your indoor antenna to the booster connector marked "Indoor".
  • Page 12: Signal Booster Status

    DL output power for this this frequency band. booster is operating on. frequency band. 12dbm(Pro20T-6S-IOT) or 17dbm(Pro25T-6S-IOT) is the best . Details: Click the corresponding frequency band (the hot area range is the entire instrument panel + text) to enter the frequency band parameter details page;...
  • Page 13 Quick Troubleshooting Guide If the booster is working normally, no further adjustment is required. Pro20T-6S-IOT/Pro25T-6S-IOT  OVERLOAD DL GAIN OUTPUT POWER LED LIGHT PATTERN REASON SOLUTION NR600 <60dB >=8dBm LTE700 <60dB >=8dBm Direct the outdoor antenna to Outdoor signal is too...
  • Page 14  Normal but No Boosted Signal DL GAIN OUTPUT POWER LED LIGHT PATTERN REASON SOLUTION NR600 >=60dB >=-5dBm Check the band you are using LTE700 >=60dB >=-5dBm again. If it stays at band66, get into the 'detail'/ 'Setting' of 1、The band is not gagues on Signal Supervisor Blue(ULN) CELL800...
  • Page 15: Manual Gain Control (Mgc)

    Manual gain control (MGC) Select any frequency band you need on the LCD touch screen. After entering the corresponding interface, you will see the MGC settings on the right. Click on the MGC box to start setting the attenuation value (the maximum setting is 31dB).
  • Page 16: Technical Specifications

    Technical Specifications Model No. Pro20T-6S-IOT Pro25T-6S-IOT Working Band Band 71 / Band 12/17 / Band 13/ Band 5 / Band 2/25 / Band 4 UL F requency Range(MHz) 663-698/698-716/ 776-787/824-849/ 1850-1915/1710-1755 DL F requency Range(MHz) 617-652/728-746/746-757/869-894/1930-1995/2110-2155 WCDMA, UMTS,CDMA,HSPA+,EVDO,LTE,NR and Supported Standar ds all cellular standards Max.
  • Page 17: Authorized Accessories List

    Authorized Accessories List The following accessories are authorized by the FCC to be used with the Pro20T-6S-IOT/Pro25T-6S-IOT Signal Booster. Outdoor Antenna & Cable Kit Options Kit 9-5050 Kit 9-50400 Kit 7-7550 Yagi 9dbi Antenna & 50’ 5D Cable Yagi 9dbi Antenna & 50' 400 Cable Panel 7dbi Antenna &...
  • Page 18: Fcc And Isedc Statements

    • Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by HiBoost could void the user’s authority to operate the equipment. For a complete list of antennas and...
  • Page 19 FCC 27.50(d)(4) Statement: Fixed, mobile, and portable (handheld) stations operating in the 1710-1755 MHz band are limited to 1-watt EIRP . Fixed stations operating in the 1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. FURTHER INFORMATION ON SIGNAL BOOSTER END-USE REGISTRATION The following links are the currently active contacts for booster registration with U.S.
  • Page 20: Warning And Statement

    Warning and Statement Users of this product are cautioned to comply with following: Booster should be installed with good grounding and lightning protection. The power supply AC input voltage shall not exceed 240 VAC. Any maintenance operation shall be carried out only after cutting off power in advance. Only professional service is authorized for maintenance.
  • Page 21: Return And Warranty Policies

    Returned Material Authorization (RMA) number supplied by us. RMA numbers may be obtained by contacting customer support at (469)871-2552 or review@hiboost.com This warranty does not apply to any signal boosters or kits determined by us to have been subjected to tampering, misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
