We strongly recommend you to read the quick install guide completely before you install.
The vehicle booster provides 2 options of booster installation,
And APP installation is unique method provided by HiBoost
1. App assisted installation, FIRST CHOICE From Page 5~13

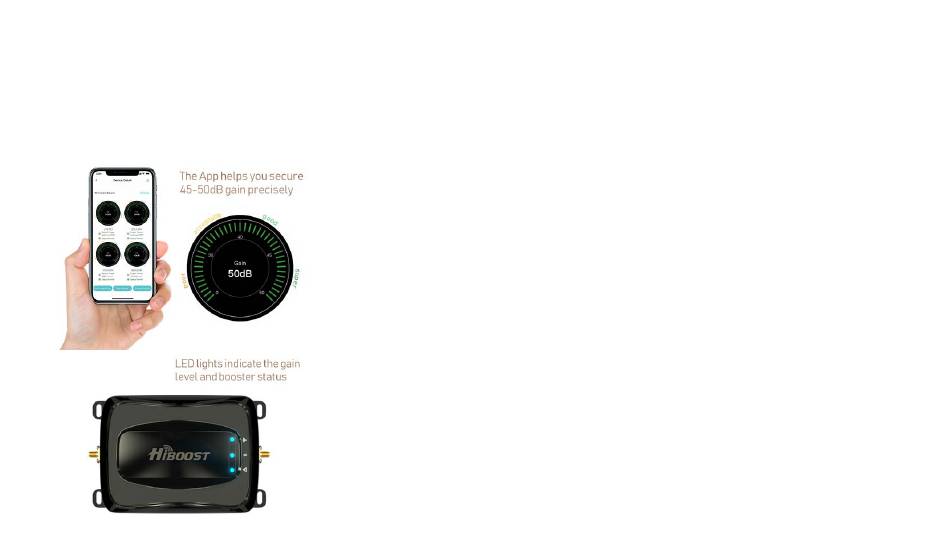

The best part is that the MAX booster working gain can be secured precisely.
APP assisted install is strongly recommended.
2. LED assisted installation, SECOND CHOICE From Page 14~20
This is a simple and rough way to adjust the booster by judging LED color, thus
the gain value is not at its perfect condition.
LED lights indicate the gain level roughly.
Quick Install Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAR HIBOOST and is the answer not in the manual?

Questions and answers

Summary of Contents for HiBoost CAR HIBOOST

  • Page 1 We strongly recommend you to read the quick install guide completely before you install. The vehicle booster provides 2 options of booster installation, And APP installation is unique method provided by HiBoost 1. App assisted installation, FIRST CHOICE From Page 5~13 The best part is that the MAX booster working gain can be secured precisely.
  • Page 2 Then why has HiBoost spent extra big efforts and costs to design APP signal meter to help you install? Out of many reasons, the most important one is that we would like you to get maximum gain from the vehicle booster, as it is most crucial for you to still get the signals even in quite remote areas, like in mountains or forests.
  • Page 3 Working Principle in Formula System Output Power + (Inside Antenna Gain) (Inside Cable Loss) (Outside Signal) + (Outside Antenna Gain) (Outside Cable Loss) + (Booster Gain) Out of the Formula: Outside Signal: To be received by outside antenna from cell tower Outside Antenna Gain: The gain of outside antenna Outside Cable Loss: The loss of the outside cable Booster Working...
  • Page 4 Measures on how to get the MAX booster working gain. The principle is that we need to avoid the loop back between outside and inside antennas as it reduces the gain. Measures can be taken to avoid the loop back: 1) Increase the distance between outside and inside antennas, generally the same vertical distance generates more loss than horizontal distance.
  • Page 5 1 Now let’s start by the APP assisted install after understanding the principle. Flow chart of APP Assisted Install 1. Download 3 Party App 3. Find a proper location to 2. Download “Signalsupervisor” install and register the booster 4. Fine tune the antennas 6.
  • Page 6 Step 1 : Download the 3 party Mobile Apps We are going to use 3 party APPs: 1. To find a suitable site to install the booster 2. To test the signal strength and quality There are a variety of resources available online: Opensignal, Network cell info lite, etc. Please download them beforehand over Android and / or IOS: ※...
  • Page 7 Step 2: Download and Register Signal Supervisor APP on cellphone 1) Scan the following QR Code or search “Signal Supervisor” on Google Play/App Store to download the App. 2) Register on the Signal Supervisor App. 3) Turn on the Bluetooth and Location Services on your mobile phone, power on the booster. 4) Click “Add device”...
  • Page 8: Step 3. Select The Installation Site

    Step 3. Select the installation site Drive to a place with outside signal at -70~-85dBm. You can use the 3 party App “Network Cell Info Lite” to test on the site to make sure the signal strength is about -70~- 85dBm.
  • Page 9 Step 4-1. Installation of the Booster and Antennas (For Car) (1) Place the outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 10 Step 4-2. Installation of the Booster and Antennas (For RV) (1) Place the outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 11 Step 4-3. Installation of the Booster and Antennas (For TRUCK) (1) Place outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 12 Step 5. Test the Voice and Network after booster install After reaching the MAX possible gain (50dB or as close to 50dB as possible), fix the outside & inside antennas, and then use the mobile phone to test the effect of phone call and browse the web page or video in the vehicle by 3 party app Network Cell Info Lite.
  • Page 13 Step 6. Drive the vehicle to other places to see how it works Drive the vehicle to various weak areas to test the performance. Drive the vehicle to various strong areas to test the performance. Warm Tips If the vehicle is driving to quite remote places where the signal outside is particularly weak and the mobile phone cannot be used, the inside antenna can cling closely to the back of the mobile phone, so that a certain signal can be obtained.
  • Page 14 2 Now let’s start by the LED assisted installation. Flow chart of LED Assisted Installation 1. Drive to a proper location to install 2. Fine tune the antennas 4. Final test in various locations 3. Test the booster for MAX gain and enjoy the mobile services performance Quick Install Guide-LED...
  • Page 15 Step 1. Select the installation site Drive to a place with outside signal at -70~-85dBm. You can use the 3 party App “Network Cell Info Lite” to test on the site to make sure the signal strength is about -70~- 85dBm.
  • Page 16 Step 2-1. Installation of the Booster and Antennas (For Car) (1) Place outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 17 Step 2-2. Installation of the Booster and Antennas (For RV) (1) Place outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 18 Step 2-3. Installation of the Booster and Antennas (For TRUCK) (1) Place outside antenna at the top of the vehicle vertically, and as high as possible in order to get the best outside signal at any driving location. Then connect it with outdoor port of the booster through outside cable.
  • Page 19 Step 3. Test the Voice and Network after booster install After above adjustment, fix the outside & inside antennas, and then use the mobile phone to test the effect of phone call and browse the web page or video in the vehicle by 3 party app Network Cell info lite.
  • Page 20 Step 4. Drive the vehicle to other places to see how it works Drive the vehicle to various weak areas to test the performance. Drive the vehicle to various strong areas to test the performance. Warm Tips If the vehicle is driving to quite remote places where the signal outside is particularly weak and the mobile phone cannot be used, the inside antenna can cling closely to the back of the mobile phone, so that a certain signal can be obtained.
