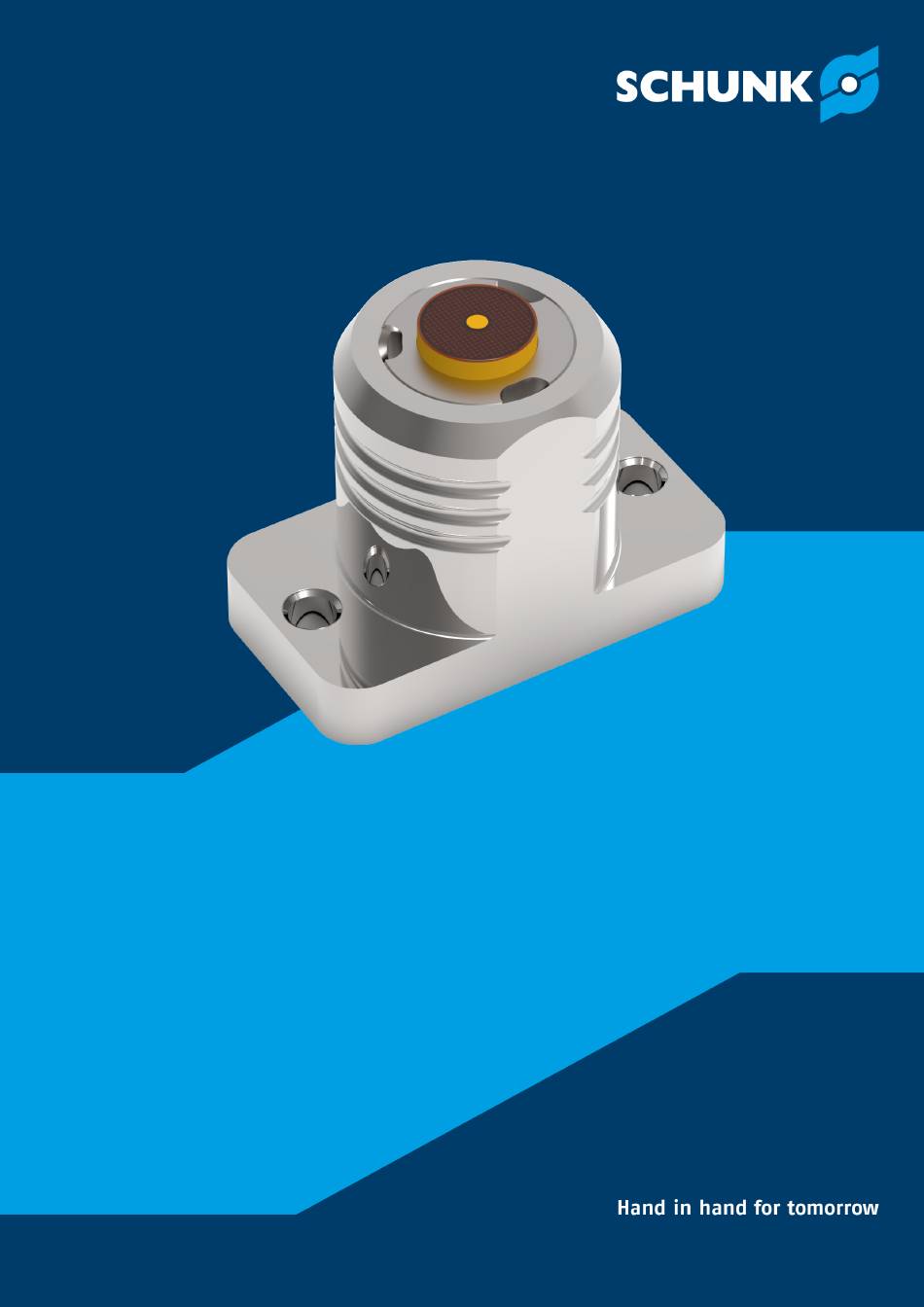

- Page 1 Assembly and Operating Manual iTENDO² magnetic holder Translation of Original Operating Manual...
- Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK SE & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 1558612 Version: 02.00 | 13/11/2023 | en...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 General ..................... 5 About this manual................1.1.1 Presentation of Warning Labels ............. 1.1.2 Definition of Terms ..............1.1.3 Applicable documents ..............1.2 Warranty ................... 1.3 Scope of delivery................. 2 Basic safety notes ................2.1 Intended use.................. - Page 4 Table of Contents 6 Operation ................... 18 6.1 Evaluation of the vibration data ............. 18 7 Maintenance ..................19 7.1 Basic information................19 7.2 Intervals and tasks ................19 7.2.1 Cleaning the product ..............20 8 Troubleshooting................... 21 9 Disassembly ..................22 9.1 Basic information................
-
Page 5: General
General 1 General 1.1 About this manual This manual contains important information for a safe and appropriate use of the product. This manual is an integral part of the product and must be kept accessible for the personnel at all times. Before starting work, the personnel must have read and understood this operating manual. -
Page 6: Definition Of Terms
Assembly and Operating Manual iTENDO² easy monitor (ID 1547510) The documents labeled with an asterisk (*) can be downloaded from schunk.com. 1.2 Warranty If the product is used as intended, the warranty is valid for 12 months from the ex-works delivery date under the following... -
Page 7: Basic Safety Notes
Using unauthorized spare parts can endanger personnel and damage the product or cause it to malfunction. Use only original spare parts or spares authorized by SCHUNK. 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 8: Environmental And Operating Conditions
Basic safety notes 2.5 Environmental and operating conditions Required ambient conditions and operating conditions Incorrect ambient and operating conditions can make the product unsafe, leading to the risk of serious injuries, considerable material damage and/or a significant reduction to the product's life span. 2.6 Personnel qualification Inadequate qualifications of the personnel If the personnel working with the product is not sufficiently... -
Page 9: Personal Protective Equipment
Attach the product so that it cannot come loose during operation. Maintain and service the product on a regular basis. All repair work must be performed by SCHUNK. The operational safety and function of the product must not be impaired by external influences. -
Page 10: Transport
Basic safety notes 2.9 Transport Handling during transport Incorrect handling during transport may impair the product's safety and cause serious injuries and considerable material damage. When handling heavy weights, use lifting equipment to lift the product and transport it by appropriate means. Secure the product against falling during transportation and handling. -
Page 11: Fundamental Dangers
Basic safety notes 2.12 Fundamental dangers General Observe safety distances. Never deactivate safety devices. Before commissioning the product, take appropriate protective measures to secure the danger zone. Disconnect power sources before installation, modification, maintenance, or calibration. Ensure that no residual energy remains in the system. -
Page 12: Technical Data
Technical data 3 Technical data 3.1 Product data Material number 1511806 Maximum permissible coolant pressure with external 20 bar coolant supply Radio transmission frequency band (ISM band) 2.4 GHz Transmission power < 6 dB Acceleration range of measurement ±100 g Maximum operating time (battery life) with active radio transmission Maximum operating time (battery life) in standby mode... -
Page 13: Installation Details
Technical data 3.3 Installation details Number of mounting holes Thread size Number of mounting magnets 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 14: Design And Description
Design and description 4 Design and description 4.1 Design NOTE: Illustration may differ from the actual design. 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 15: Functional Description
Design and description Position Description Mounting thread (M5) Magnets Antenna Wrench flat (A/F 22) Sensor measuring direction Base body Dimensi Value [mm] 32.6 Ø24 31.07 4.2 Functional description This product is used to record vibration data in industrial machines. The product can be mounted in the machine room via the integrated magnets and/or mounting holes. -
Page 16: Assembly
Assembly 5 Assembly 5.1 Basic information WARNING Risk of injury due to incorrect assembly! Incorrect assembly may lead to the product being flung out, causing severe injuries. Do not mount product on moving parts. Do not mount the product in the traverse path of machine parts. -
Page 17: Assembly Of The Product
Assembly CAUTION Risk of crushing, impact and cutting when assembling and disassembling the product! Do not reach between the product and machine. Wear suitable protective equipment, especially protective gloves and safety boots. CAUTION Risk of possible damage to the product! When transporting and handling the product, ensure that it is not damaged by knocks, impact, etc. -
Page 18: Operation
Operation 6 Operation 6.1 Evaluation of the vibration data To evaluate the recorded vibration data, refer to the chapter "iTENDO² Tablet and iTENDO² App" in the iTENDO² pad operating manual (1484493). Consider the following when evaluating the vibration data: The data collected is dependent on the machine and process and must therefore be considered, assessed and evaluated individually for each application. -
Page 19: Maintenance
For trouble-free, long-lasting use, clean, maintain and check the functionality of the product regularly. Repair work may only be carried out by SCHUNK! If you have any questions regarding maintenance and servicing, our technical customer service is available during our business hours: Service telephone: +49-7133-103-2956 service.toolholder@de.schunk.com... -
Page 20: Cleaning The Product
NOTE: Damage or wear can compromise the functioning of the product. If non-replaceable parts of the product are worn or damaged, return the product to SCHUNK for inspection. 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 21: Troubleshooting
Battery is flat Charge battery signal If you have any questions regarding troubleshooting, our technical after-sales service is available during our business hours: Service telephone: +49-7133-103-2956 service.toolholder@de.schunk.com 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 22: Disassembly
Disassembly 9 Disassembly 9.1 Basic information WARNING Risk of injury if the product falls during transport, assembly or disassembly. Due to the oily surface required to preserve it, the product can slip through your hands, resulting in injury. Take appropriate safety measures to prevent the product from falling. -
Page 23: Disassembly Of The Product
Disassembly 9.2 Disassembly of the product Clean the product. Secure the product against falling down. Loosen connection to the machine. ð When fastening via magnets: tilt the product. ð When fastening with fastening screws: unscrew the fastening screws. Remove the product. NOTE: To avoid damage, only place the product on a clean and soft surface. -
Page 24: Storage
Storage 10 Storage When storing the product for a longer period of time, observe the following points: Clean the product and lubricate it lightly. Only store the product in dry rooms. Protect the product from major temperature fluctuations. Completely charge the battery regularly every year. Comply with the storage temperature specified in the technical data. -
Page 25: Disposal
Follow local regulations on dispatching product components for recycling or proper disposal. Alternatively, you can return the product to SCHUNK for correct disposal. 02.00 | iTENDO² magnetic holder | Assembly and Operating Manual | en | 1558612... -
Page 26: Eu Declaration Of Conformity
EU Declaration of Conformity 12 EU Declaration of Conformity according to the European Directive 2014/53/EU, Annex VI. Manufacturer/ SCHUNK SE & Co. KG Distributor Toolholding and Workholding | Gripping Technology | Automation Technology Bahnhofstr. 106 – 134 D-74348 Lauffen/Neckar We hereby declare that on the date of the declaration, the product described below complied with all basic safety and health regulations found in Directive 2014/53/EU of the European Parliament and of the Council on machinery. - Page 27 2011/65/EU RoHS Directive Person authorized to compile the technical documentation: Moritz Wiedmann, address: refer to manufacturer's address Signed for and on behalf of: SCHUNK GmbH & Co. KG Lauffen/Neckar, October 2023 p.p. Moritz Wiedmann; Head of Development Clamping Technology p.p. Jörn Rastetter; Head of Functional Safety; Safety Assurance Manager (SAM) 02.00 | iTENDO²...
- Page 28 SCHUNK SE & Co. KG Toolholding and Workholding | Gripping Technology | Automation Technology Bahnhofstr. 106 – 134 D-74348 Lauffen/Neckar Tel. +49-7133-103-0 info@de.schunk.com schunk.com Folgen Sie uns I Follow us Wir drucken nachhaltig I We print sustainable...
