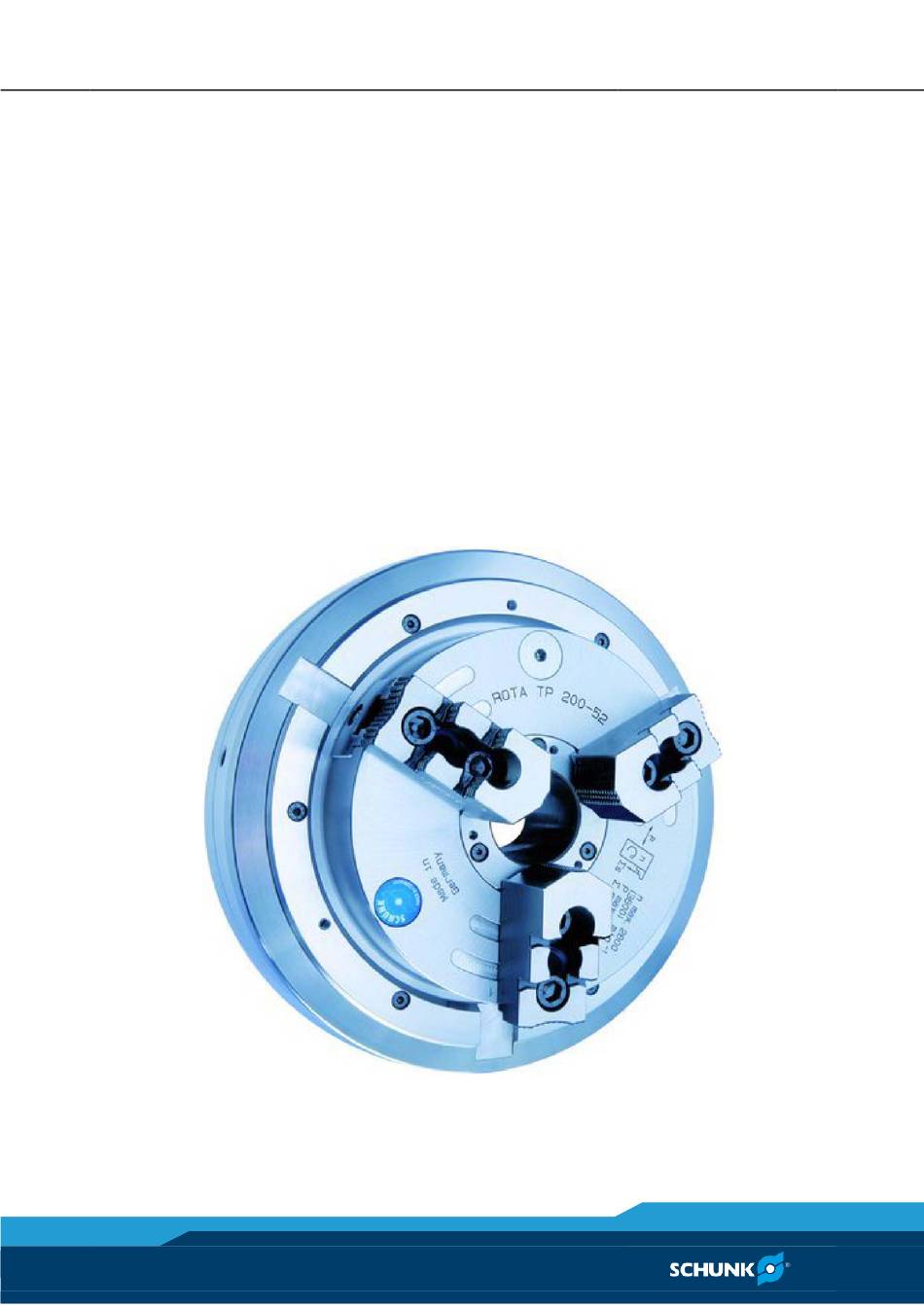

- Page 1 Translation of the original manual Pneumatic Chuck ROTA TP / ROTA TP-LH Assembly and operating manual Superior Clamping and Gripping...
- Page 2 Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Any reproduction, processing, distribution (making available to third parties), translation or other usage - even excerpts - of the manual is especially prohibited and re- quires our written approval.
-
Page 3: Table Of Contents
3.3.2 Calculation example: required initial clamping force for a given speed ..24 3.3.3 Calculation of the permissible speed in case of a given initial clamping force ......................25 3.4 Grades of Accuracy ....................26 3.5 Permissible imbalance .................... 26 3.6 Torques per screw ....................26 02.00|ROTA TP |en... - Page 4 7.6 Assembly ......................... 49 8 Spare parts ......................51 9 Assembly drawings ....................52 10 Translation of the original declaration of incorporation ........... 54 11 Appendix on Declaration of Incorporation, as per 2006/42/EC, Annex II, No. 1 B ..55 02.00|ROTA TP |en...
-
Page 5: General
Non-observance will inevitably cause irreversible injury or death. WARNING Dangers for persons! Non-observance can lead to irreversible injury and even death. CAUTION Dangers for persons! Non-observance can cause minor injuries. NOTICE Material damage! Information about avoiding material damage. 02.00|ROTA TP |en... -
Page 6: Applicable Documents
Sizes This operating manual applies to the following sizes: • ROTA TP 125-26; 160-38; 200-52; 250-68; 315-90; 315-105; 315-115 • ROTA TP LH 350-115 Warranty The warranty period is 24 months after delivery date from factory or 500 000 cycles*, if it is used as intended, under the following conditions: •... -
Page 7: Basic Safety Notes
By conversions, changes, and reworking, e.g. additional threads, holes, or safety devices can impair the functioning or safety of the product or damage it. • Structural changes should only be made with the written ap- proval of SCHUNK. 02.00|ROTA TP |en... -
Page 8: Spare Parts
Use of unauthorized spare parts Using unauthorized spare parts can endanger personnel and dam- age the product or cause it to malfunction. • Use only original spare parts or spares authorized by SCHUNK. Chuck jaws Requirements of the chuck jaws Stored energy can make the product unsafe and risk the danger of serious injuries and considerable material damage. -
Page 9: Environmental And Operating Conditions
Service personnel of Due to its technical training, knowledge and experience, service the manufacturer personnel of the manufacturer is able to perform the delegated tasks and to recognize and avoid possible dangers. 02.00|ROTA TP |en... -
Page 10: Personal Protective Equipment
• Eliminate any malfunction immediately. • Observe the care and maintenance instructions. • Observe the current safety, accident prevention and environ- mental protection regulations regarding the product's applica- tion field. 02.00|ROTA TP |en... -
Page 11: Transport
Handling of disposal The incorrect handling of disposal may impair the product's safety and cause serious injuries as well as considerable material and en- vironmental harm. • Follow local regulations on dispatching product components for recycling or proper disposal. 02.00|ROTA TP |en... -
Page 12: Fundamental Dangers
Protection during commissioning and operation Falling or violently ejected components Falling and violently ejected components can cause serious injuries and even death. • Take appropriate protective measures to secure the danger zone. • Never step into the danger zone during operation. 02.00|ROTA TP |en... -
Page 13: Protection Against Dangerous Movements
Falling loads can cause serious injuries and even death. • Stand clear of suspended loads and do not step within their swiveling range. • Never move loads without supervision. • Do not leave suspended loads unattended. • Wear suitable protective equipment. 02.00|ROTA TP |en... - Page 14 • The lathe chuck may only be used on machines and facilities that fulfill the minimum requirements of the EC Machinery Di- rective; specifically, they must have effective technical measures to protect against possible mechanical hazards. 02.00|ROTA TP |en...
- Page 15 4 mm. • Wear protective gloves. • Observe the safety and accident prevention regulations during operation of the chuck, especially in connection with machin- ing centers and other technical equipment. 02.00|ROTA TP |en...
- Page 16 • Ensure the chuck's axial and concentric runout. • Check options for remedying imbalances on special top jaws and workpieces. • Reduce the speed. • Wear hearing protection. 02.00|ROTA TP |en...
-
Page 17: Technical Data
RPM according to VDI 3106 must be calculated for the respective machining job. Whereby the recommended maximum speed must not be exceeded. The values calculated must be checked by means of dy- namic measurement using a clamping force tester. 02.00|ROTA TP |en... -
Page 18: Clamping Force / Speed Diagrams
The chucks were operated with the max. permissable force and the jaws were located exactly on line with the chuck O.D. The chuck is in perfect condition and lubricated with SCHUNK LINOMAX special grease. Should one or several of the above mentioned parameters be changed the diagrams are no longer valid. - Page 19 Technical data Clamping force / speed diagram ROTA TP 160-38 Clamping force / speed diagram ROTA TP 200-52 Clamping force / speed diagram ROTA TP 250-68 02.00|ROTA TP |en...
- Page 20 Technical data Clamping force / speed diagram ROTA TP 315-90 Clamping force / speed diagram ROTA TP 315-105 Clamping force / speed diagram ROTA TP 350-115 02.00|ROTA TP |en...
-
Page 21: Calculations For Clamping Force And Speed
Technical data Clamping force / speed diagram ROTA TP-LH 350-115 Calculations for clamping force and speed Missing information or specifications can be requested from the manufacturer. Legend Total centrifugal force [N] Centrifugal torque of top jaws [Nm] Effective clamping force [N]... - Page 22 According to VDI 3106: S ≥ 1.5. From this we can derive the calculation of the initial clamping force during shutdown: (+) for gripping from the outside inwards (–) for gripping from the inside outwards 02.00|ROTA TP |en...
- Page 23 M need to be added: The centrifugal torque of the base jaws M can be found in the table "Chuck data"( 3.1, Page 17). The centrifugal torque of the top jaws M is calculated as per: 02.00|ROTA TP |en...
-
Page 24: Calculation Example: Required Initial Clamping Force For A Given Speed
Centrifugal torque of base jaw and top jaw specified in "Chuck data" table: For the centrifugal torque of the top jaw, the following applies: Centrifugal torque for one jaw: The chuck has 3 jaws, the total centrifugal torque is: 02.00|ROTA TP |en... -
Page 25: Calculation Of The Permissible Speed In Case Of A Given Initial Clamping Force
Identifying the permissible RPM: The calculated RPM n = 1495 is smaller than the maximum permissible RPM of the chuck n = 3200 (see "Chuck data" table ( 3.1, Page 17)). This calculated RPM may be used. 02.00|ROTA TP |en... -
Page 26: Grades Of Accuracy
Technical Supply Terms for lathe chucks as per DIN ISO 3089. Permissible imbalance The ROTA TP in ungreased state without T-nuts and top jaws cor- responds to the balancing quality class 6.3 (according to DIN ISO 1940-1). Risks of residual unbalance may arise due to insufficient rotation compensation being achieved (see DIN EN 1550 6.2 e). -
Page 27: Function
When determining the necessary clamping force to machine a workpiece, take the centrifugal force acting on the chuck jaws into account (according to VDI 3106). If the chuck jaws are changed, adjust the stroke control to the new situation. 02.00|ROTA TP |en... -
Page 28: Air Transmission System
The off- and return air out of the opposit cylinder chamber leaves for the most part directly below the associated profile sealing. 02.00|ROTA TP |en... -
Page 29: Pilot Controlled Check Valve
As a result of this process, both O.D. and I.D. clamping are possible throughout the valve system. 02.00|ROTA TP |en... -
Page 30: Clamping Or Jaw Actuation
Both sides of a piston cover screwed onto the piston neck for clamping and unclamping are pressurized, thus causing the piston cover to trigger the axial motion of the piston. 02.00|ROTA TP |en... -
Page 31: Power Chuck With Extended And Standard Jaw Stroke (Lh)
(1). Please make sure that the entire fast stroke plus at least 1/3 of the clamping stroke (corresponding to the basic covering) of the TB-LH lathe chuck is executed during workpiece clamping (2). 02.00|ROTA TP |en... -
Page 32: Transport
• Place the angle under the eye bolt on the distributor ring. • Screw the eye bolt into the thread provided. Using the angle prevents the distributor ring from slipping back- wards out of the chuck. 02.00|ROTA TP |en... -
Page 33: Mounting
Screws that are too long may protrude from the tapping drill hole or damage the machine spindle. 1 Preparing the mount ( 6.2, Page 34) 2 Chuck assembly ( 6, Page 33) 3 Performing a functional check ( 4.2, Page 27) 02.00|ROTA TP |en... -
Page 34: Inclusion
Mounting Inclusion For ROTA TP 125 / Z up to 350 / Z lathe chuck types, a normal inter- mediate flange must be placed on the spindle head. Using 6 pin screws M12 x 40 (sizes 160 - 350), the rear flange side of the front of the power chuck which has been turned free is screwed »across... -
Page 35: Distributor Ring
The distributor ring is automatically centered with the chuck body by a plastic centering sleeve (Hostaform C). The following maximum speeds are possible with this mounting: ROTA TP125-25 ROTA TP 160-38 ROTA TP 200-55 ROTA TP 250-58 ROTA TP 315-90 4000 min 4000 min... - Page 36 Retighten the screws. The profile seals only begin to wear if the chuck is actuated by the control unit during the rotation, which is generally prevented by the connection of the electrical interlock to the machine. 02.00|ROTA TP |en...
-
Page 37: Stationary Mounting Of The Distributor Ring
ROTA TP 125-25 TP 160-38 TP 200-55 TP 250-58 TP 315-90 Max. rotation speed 4200 4200 3800 3500 2500 [min-1] ROTA TP 315-105 TP 350-115 TP-LH 315-105 TP-LH 350-115 Max. rotation speed 3000 2200 2200 2200 [min-1] 02.00|ROTA TP |en... - Page 38 For this mounting type, the distributor ring must be equipped with a spacer ring instead of the plastic centering sleeve. This spacer ring is loosely enclosed with each ROTA TP / TP-LH front-end power chuck. If the distributor ring is to be fastened but is equipped standard with the centering sleeve, the centering sleeve must be replaced with the enclosed spacer ring.
-
Page 39: Mounting With Bracket
If the face side of the headstock is not machined, a mean must be determined and any height differences must be compensated by means of a positioning screw or positioning sleeve. Incidentally, the spacing consoles can be customized, but they should achieve the stability of the presented design. 02.00|ROTA TP |en... -
Page 40: Mounting With 2-Part Clamping Ring (D.r.m.b.)
During the assembly, as mentioned at the start, it must be ensured that the distributor ring is axially and radially aligned with the chuck body without contact and fixed. Note Therefore, ONLY flexible connection cables may be used. 02.00|ROTA TP |en... - Page 41 The dial indicator is placed radially against the distributor ring and the distributor ring is aligned until the dial indicator no longer indicates a significant deviation (approx. 0.2 mm). 02.00|ROTA TP |en...
- Page 42 Mounting Spacer ring,( 6.3.3, Page 39) Centering ring, ( 6.3.2, Page 37) 02.00|ROTA TP |en...
-
Page 43: Commissioning And Maintenance
Commissioning and maintenance Initial operation Check that the jaw guides and the piston of the ROTA TP-type power chuck are sufficiently lubricated at the lubrication nipples set into the base jaws; if not, relubricate the base jaws in the re- tracted position with LINOMAX acid-free grease. -
Page 44: Maintenance
2-part maintenance unit, type WEH with filter, oiler, and pressure control valve Type WEH-1 ID number 0890021 Technical Data Oil type Shell Tellus S2 MA 32 Esso Febis Connection G 1/4" Nominal pressure 10 bar 02.00|ROTA TP |en... - Page 45 Air consump- Clamping Number of oil Oil quantity tion/jaw stroke strokes drops at 6 bar ROTA TP 125 1 – 3 liters approx. 1 approx. 6 mm ROTA TP 160 ROTA TP 200 3 – 5 liters approx. 2 approx. 12...
- Page 46 As such, it is not possible to specify a generally applicable rule for this. 02.00|ROTA TP |en...
-
Page 47: Maintenance Intervals
Hardened roughing jaws whose clamping surfaces have conical teeth with good grip should be used for rough turning work or preturned workpieces. 02.00|ROTA TP |en... -
Page 48: Disassembly
9 Disassemble the sealing disk (item 5) using the hexagon socket head screws (item 37) and remove the O-ring (item 51) sealing the pressure chamber. Note Do not lose the sealing rings (65) under the hexagon socket head screws (37)! 02.00|ROTA TP |en... -
Page 49: Assembly
3 hexagon socket head screws (item 37) with sealing rings (item 65). 3 Insert the guide bushing (item 4) from the front of the chuck and secure with 3 hexagon socket head screws (item 36). 02.00|ROTA TP |en... - Page 50 6 Lubricate valve system (item 18) and valve bore hole with oil, install and close with plug-in screw and O-ring (item 3). NOTE All parts of the ROTA TP-type front-end power chuck are lightweight. As such, hard hammer blows should never be used during assembly.
-
Page 51: Spare Parts
Double check valve Set-screw DIN 914 Screws (DIN EN ISO 4762/7984) Screws Screws ISO 4762 Screws – 10.9 (DIN EN ISO 4762/109) Screws Safety ring Locking nut Screws (ROTA TP 315-105) O-ring O-ring O-ring O-ring O-ring O-ring O-ring Copper seal... -
Page 52: Assembly Drawings
Assembly drawings Assembly drawings ROTA TP with standarded cover 02.00|ROTA TP |en... - Page 53 Assembly drawings 02.00|ROTA TP |en...
-
Page 54: Translation Of The Original Declaration Of Incorporation
2006/42/EC of the European Parliament and of the Council on machinery. The declaration is rendered invalid if modifications are made to the product. Pneumatic Chuck ROTA TP / ROTA TP-LH Product designation: TP: 125-26; 160-38; 200-52; 250-68; 315-90; 315-105; 350-115... -
Page 55: Appendix On Declaration Of Incorporation, As Per 2006/42/Ec, Annex Ii, No. 1 B
1. Description of the basic safety and health protection requirements, as per 2006/42/EC, Annex I, that apply to and are fulfilled for the scope of the partly completed machinery: Product designation Pneumatic Chuck ROTA TP: 125-26; 160-38; 200-52; 250-68; 315-90; 315-105; 350-115 Type designation ROTA TP-LH: 350-115 ID number 0816101;... - Page 56 Supplementary essential health and safety requirements to offset hazards due to lifting operations Supplementary essential health and safety requirements for machinery intended for under- ground work Supplementary essential health and safety requirements for machinery presenting particu- lar hazards due to the lifting of persons 02.00|ROTA TP |en...
