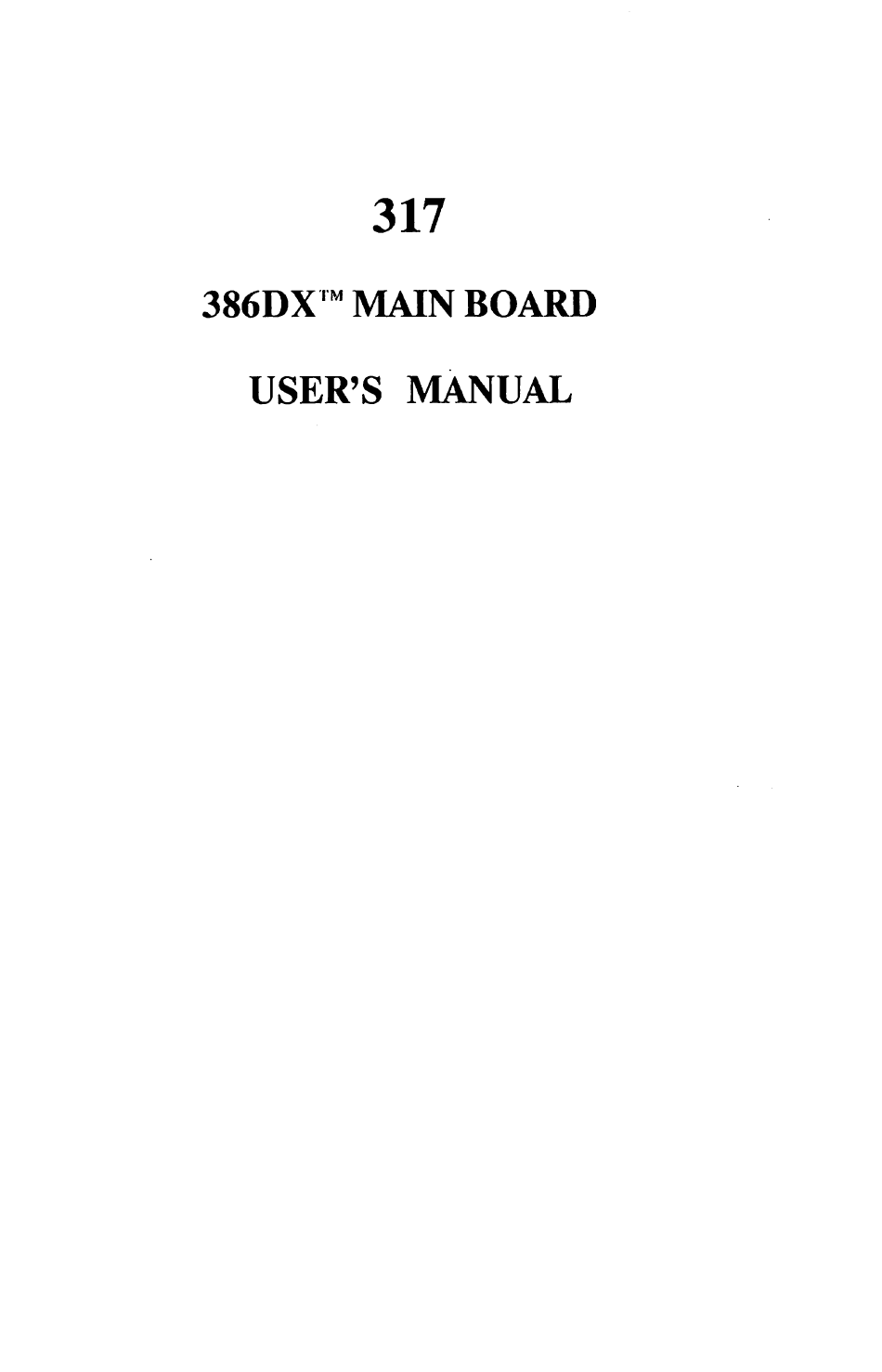

- Page 1 386DX ™ MAIN BOARD USER’S MANUAL...
- Page 3 NOTICE Copyright 1994. All Rights Reserved. Manual Version R3.0 All information, documentation, and specifications contained in this manual are subjuct to change without prior notification by the manufacturer. The author assumes no responsibility for any errors or omissions which may appear in this document nor does it make a commitment to update the informa...
-
Page 5: Table Of Contents
Chapter 1. Introduction........1 1.1 Preface....................1 1.2 Major Features.................. 2 1.3 317 Mainboard Description.............. 3 Chapter 2. Hardware Configuration....5 2.1 CPU Type Description..............5 2.2 Co-Processor Reset Signal.............. 6 2.3 Display Type Configuration............. 6 2.4 Connectors..................7 2.5 On-board Memory Configuration........... 9 2.6 317 Mainboard Placement...............10... -
Page 7: Chapter 1. Introduction
Chapter 1 Introduction 1.1 Preface Congratulation on purchasing this 317 mainboard. 317 mainboard is a highly integrated system board designed to accommodate most member of the 386 family of CPUs in 40MHz., and features a high-performance secondary cache memory architecture of 128KB in size. -
Page 8: Major Features
1.2 Major Feature » Support for any member of the 386 family of CPUs running at 40MHz. » Support five 16-bit ISA expansion slots. » Support one 8-bit ISA expansion slot. » Support for 128KB of secondary cache. » Supports 2-1-1-1, 3-1-1-1, 2-2-2-1, and 3-2-2-2 cache burst cycles. -
Page 9: 317 Mainboard Description

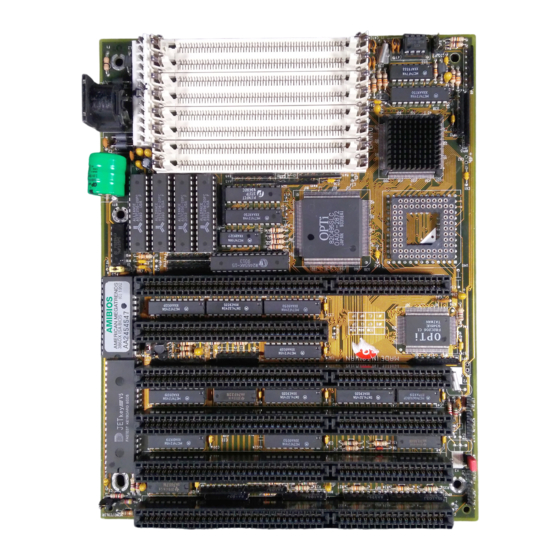

Please take a minute to become familiar with the board design. 1. System Microprocessor 317 mainboard may accept any members of the 386 family of high performance 32-bit microprocessors in PGA or PQFP package such as AMD Am386DX and TI/Cyrix 486DLC. The mainboard is designed to run at a clock speed of 40 MHz. - Page 10 3. Chipset ASIC 317 mainboard is designed around a set of highly integrated OPTi ASIC, which offers optimum performance on ISA base system with a cache controller, a local DRAM controller, and Integrated Peripherals controller. 4. Memory Architecture 317 mainboard features eight 30-pin SIMM (Single In-Line Memory Module) sockets and organized into two banks, which allow flexible memory configuration and expansion.
-
Page 11: Chapter 2. Hardware Configuration
.. 2.1 CPU Type Decription 317 mainboard accept any member of the 386 and 486DLC series of microprocessor at the clock speed of 40MHz. The manufac ture range from AMD, Cyrix, and TI CPU. -
Page 12: Co-Processor Reset Signal
2 .2 Co-Processor Reset Signal To meet the various brands co-processor(387DX) reset timing, 317 provide jumper JP10 to configure co-processor reset timing. This jumper is reserved for testing purpose only. Please do not change, or else may cause serious system error. -
Page 13: Connectors
2. 4 Connectors There are several connectors located on the 317 mainboard. They are used to connect with peripheral devices to enhance the performance of the system operation. Connector Function 53,54 Power Connector Keyboard Connector 52 (Note 1) External Battery Connector Power LED &... - Page 14 JP5 is opened, and the system will run in normal mode when JP5 is shorted. 317 mainboard also supports turbo switching by keyboard. < Ctrl > < Alt > < + > for switching to turbo mode, <...
-
Page 15: On-Board Memory Configuration
2.5 On-Board Memory Installation 317 mainboard provides tremendous flexibility to support a num ber of different on-board DRAM configuration. The on-board memory is organized into two banks, with four SIMMs ( Single In-line Memory Module) socket assigned to each bank. The... -
Page 16: 317 Mainboard Placement
2 .6 317 Mainboard Placement Installation... -
Page 17: Chapter 3. Bios Setup
Chapter 3 BIOS SETUP 317 mainboard provides the most famous system BIOS in the PC world - AMI BIOS. This BIOS setup reference is written to assist you in the proper usage of BIOS setting, please take a few minutes to become familiar prior to using BIOS program. - Page 18 AMIBIOS SETUP PROGRAM-WARNING INFORMATION (C) 1992 American Megatrends Inc . , All Rights Reserved Improper Use of Setup may Cause Problems ! ! If System Hangs, Reboot System and Enter Setup By Pressing the <DEL> Key Do any of The following after Entering Setup Alter Options to make System Work (ii) Load BIOS Setup Defaults...
-
Page 19: Standard Cmos Setup
3 .1 STANDARD CMOS SETUP Choose th e" STANDARD CMOS SETUP" from the main menu and listed screen will display. Use the arrow keys to move between items and to select values. Mofify the selected fields using the PageUp/PageDown keys. Some fields let you enter numeric values directly. - Page 20 Select the secondary hard disk drive from the Hard disk D : standard hard disk types 1 to 46, and type 47 is user definable. If there are no hard disk drive be installed, choose" Not installed." Select 360 KB , 5 1/4" (default) Floppy Disk 1.2 MB , 51/4"...
-
Page 21: Advanced Cmos Setup
3. 2 ADVANCED CMOS SETUP The ADVANCED CMOS SETUP is the second option from the main setup menu. Let the highlighted bar stay at "ADVANCED CMOS SETUP" and press < Enter > , the following screen appear. BIOS SETUP PROGRAM - ADVANCED CMOS SETUP ( C ) 1992 American Megatrends Inc., All Rights Reserved Above 1 MB Memory test Disabled... - Page 22 If there are more than 1 MB of RAM on » Above 1 MB system board, by enabling this option, will Memory Test involve the POST memory routines will check the RAM above 1 MB. If disabled, the BIOS only check the first 1 MB RAM. This option will enable or disable the ticking »...
- Page 23 » System Boot Up If the option is high, the system will boot-up CPU Speed in turbo mode, when turbo switch JP5 is set to turbo (open); and the system will boot-up in normal mode when turbo switch JP5 is to normal (close).
- Page 24 Mode, enable this option for faster data trans fer. » ChipAwayVirus 317 support this feature for a hardware-based anti-virus to control of the system very early in the boot process before DOS to detect and clean all viruses especially effective against Boot Viruses.
-
Page 25: Advanced Chipset Setup
3. 3 ADVANCED CHIPSET SETUP This program of the BIOS Setup is entirely chip set specific, and is used to change the values of chipset registers. These registers control most of the system options in the computer. By using arrow keys you make highlighted bar stay at "ADVANCED CHIPSET SETUP"... - Page 26 Hidden Hidden refresh is performed independent of Refresh the CPU, as long as the CPU does not try to access local memory or the AT bus during a hidden refresh cycle, refresh will be transparent to the CPU. The CPU can continue to execute from its internal cache and execute internal instructions during hidden refresh without any loss in performance due to refresh arbitration.
- Page 27 » Cache Write This feature allows the user to select be tween three cache write settings, zero, one, or Wait State two cache write wait state. The optimal setting depends on CPU clock speed, one memory write wait state for clock speed of 40MHz. (default).
- Page 28 This Page Is Left Blank Intentionly BIOS Setup...
-
Page 29: Chapter 4. Chipaway Virus
CMOS SETUP of System BIOS, you probably already realize the inherent benefits in this hardware-based anti-Virus solution. The single most important attribute of anti-Virus of 317 is that it features preemptive virus action. This technology, called JumpLoading™ allows ChipAway Virus to gain control of your system very early in the boot process —... -
Page 30: Boot Viruses
Additional anti-virus software Just to give you even more peace of mind, 317 main board attached some anti-virus software that you can use to scan for viruses other than boot-sector viruses. With this software, 317 represent a whole solution against every type of virus. -
Page 31: How Chipaway Virus Work
4. 5 How ChipAway Virus Work Since ChipAwayVirus is auto-checking of floppy diskettes when they are accessed, and when a virus is found, the warning message will be display. ChipAwayVirus Warning Boot sector on diskette is infected by a virus. Do not boot the system from this diskette. -
Page 32: Keeping Your Security High
» Always use a nde-based anti-virus product that is not extreme ly dependent on pattem updates. By following these guidelines, and by using 317 anti-virus feature, you should be able to work productively in a virus-free environ ment. ChipAway Virus... - Page 33 FCC N o t ic e : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
