C-Drive Unit
• Select a dry position
• Provide room for access for
technical adjustments
• Provide access for cables and
connections both ends
• Mount the unit using four screws
(provided)
• Route power cable via circuit
breaker main power supply*

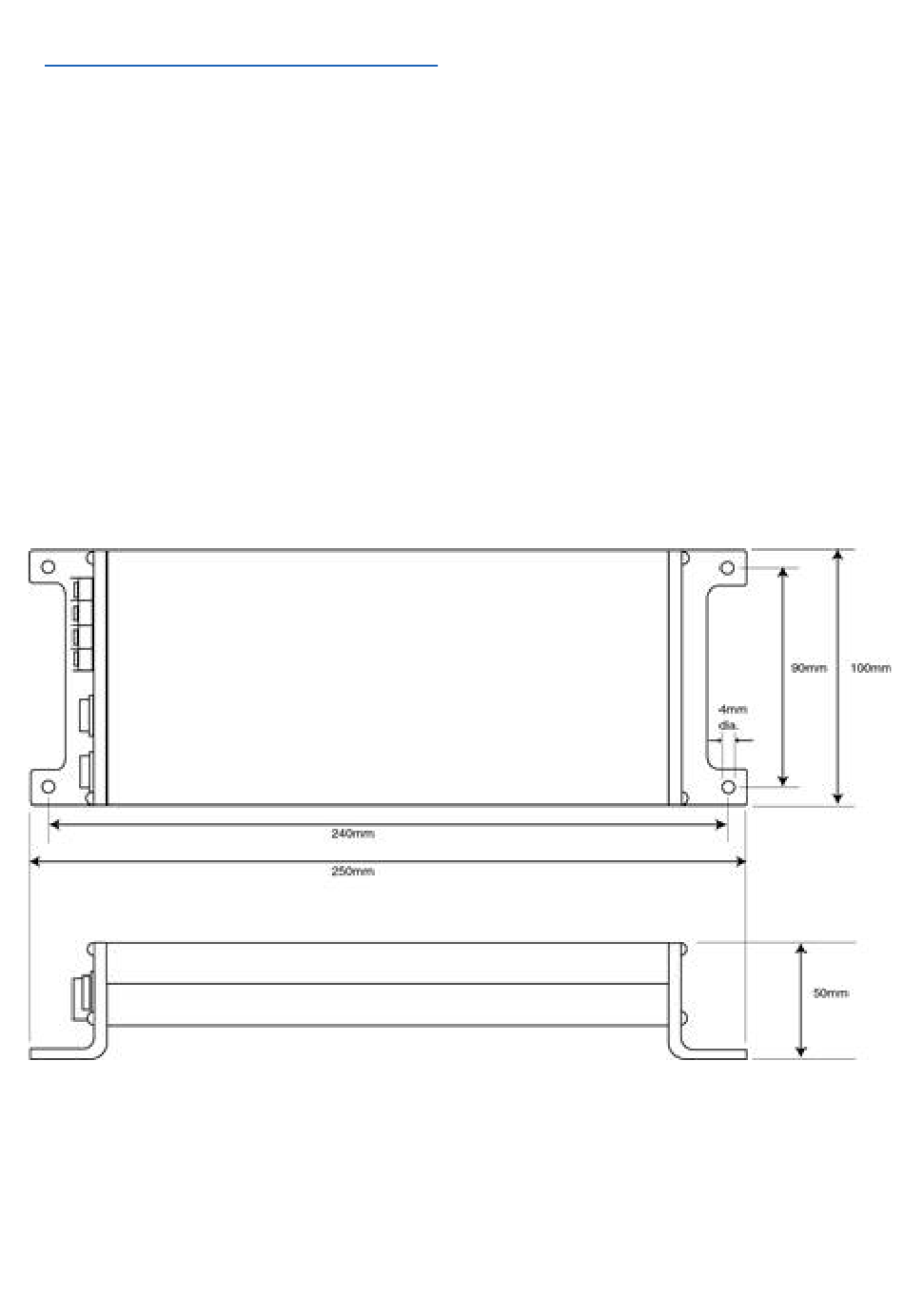

Dimensions:
* Note: Power cable must be
Version 2.0 Rev 1 October 2021
connected via a 15 amp circuit
breaker or via a 15 amp fused
circuit with isolating switch to 12/24
VDC supply
5 of 36
