TMQ C-Drive 5 Installation And Service Manual page 22

System Connection - Examples

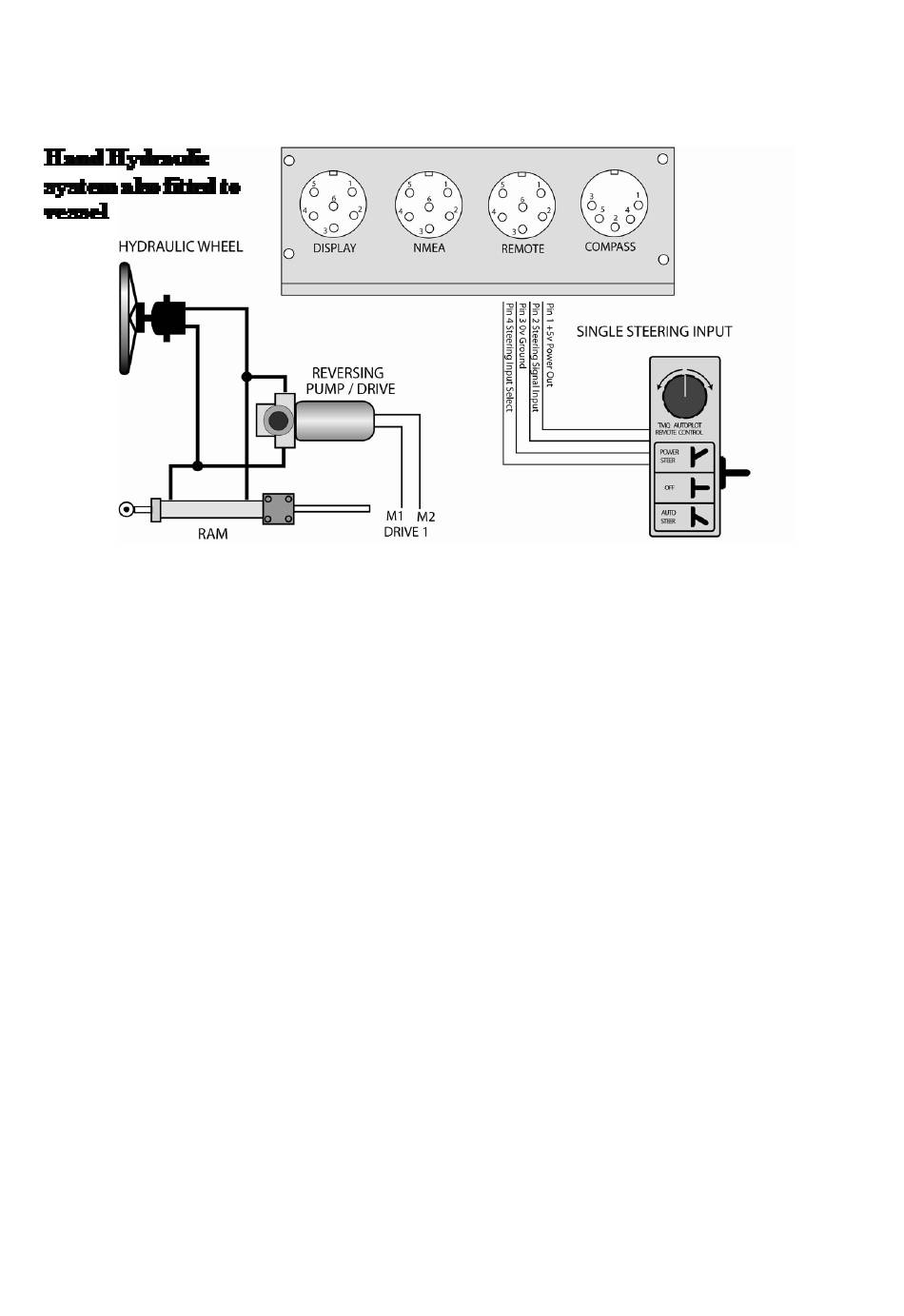

Remote Mode 1 – Hydraulic Steering + Hand Remote
Remote 1 & 2
Pin 1 +5v Power Out
Pin 2 Steering Signal Input (Green)
Pin 3 0v, Common Ground (Blue)
Pin 4 Steering Select Switch (Yellow) (0v = Auto, 5v = Power)
Pin 5 No connection
Pin 6 No connection
The remote modes can be changed
by a PC connected to the NMEA
input, or by an AP60 head. The
change of remote modes allows the
use of different remotes, such as
3 wheels, or 3 remotes, or TMQ
active remotes.
Remote Mode 1 – Additional
Remotes:
REMOTE SOCKET: 2 Standard
Remotes, Plug in,
Remote 3 input: Wheel with a select
line, Inside Terminal. Pull select line
low to select wheel.
20 of 36
Wiring for above option only
(Red)
Remote Mode 2:
REMOTE SOCKET: 1 Active remote,
Plug in.
Remote 3 input: 1 Standard Remote,
inside terminal.
Remote Mode 3 – 2 Remotes and
Wheel used in power steer mode:
REMOTE SOCKET: 2 Standard
Remotes Plug in.
Remote 3 input: Wheel with a select
line to Power Steer Mode, inside
terminal.
Remote Mode 4 – 2 remotes and
wheel when in standby mode:
REMOTE SOCKET: 2 Standard
Remotes. Plug in.
TMQ C-Drive 5 Manual
