Rudder Feedback
Installation Notes
• When the rudder is central and
the rudder feedback is central all
angles should be 90 degrees.
• Use the snap swivel and ball joint
on the rudder feedback arm
• Use the rudder feedback
adjustment block on the tiller arm
• Hydraulic ram may be mounted on
the other side of the tiller arm
• Ensure that when rudder turns to
Port, Rudder Feedback turns to
Port as indicated on the rudder
feedback unit.
• Standard rudder feedback unit
may be mounted upside down.
This requires an electrical change.
(Polarity of rudder feedback
requires reversing)

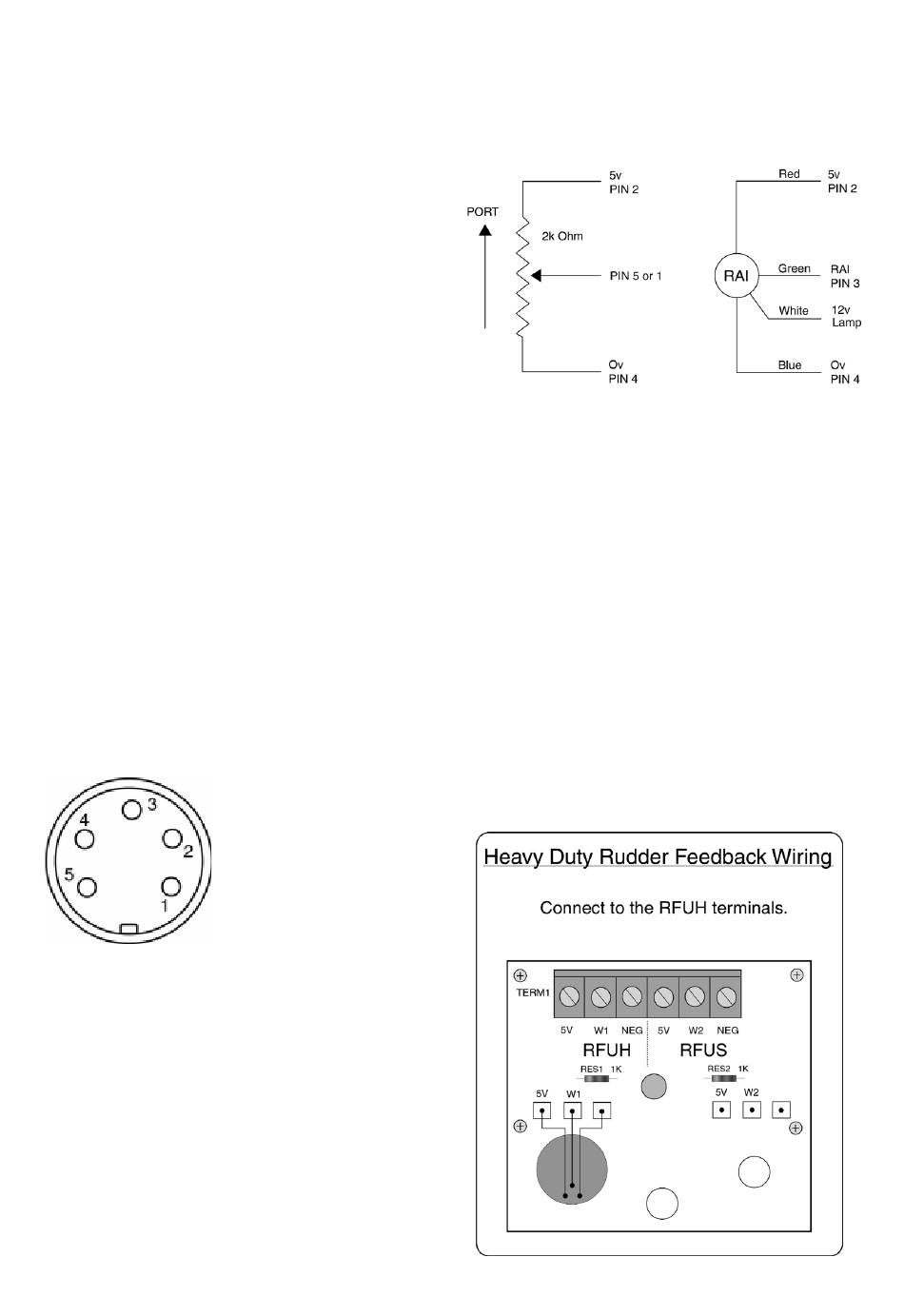

Rudder Feedback Plug
Wiring Diagrams
Note: Pin connections from rear of
plug, solder connection side.
Pin4 0 v
10 of 36
Pin1 Rudder signal
(Green)
Pin2 +5v
(Red)
Pin3 Not Used
(Blue)
Pin5 Link to Pin 1
TMQ C-Drive 5 Manual
Rudder Feedback and
Rudder Angle Indicator
Wiring
RFUH Internal Wiring
The cable from the RFU must be
connected to the RUDDER socket on
the C-Drive unit. The RFU is supplied
with a standard 14 metre cable but
can be extended if required during
installation.
See Rudder feedback wiring diagram.
Note 1: if using RFUH connect as
shown below. Set the c-drive internal
dip switches to RFUH.
