TMQ C-Drive 5 Installation And Service Manual page 15

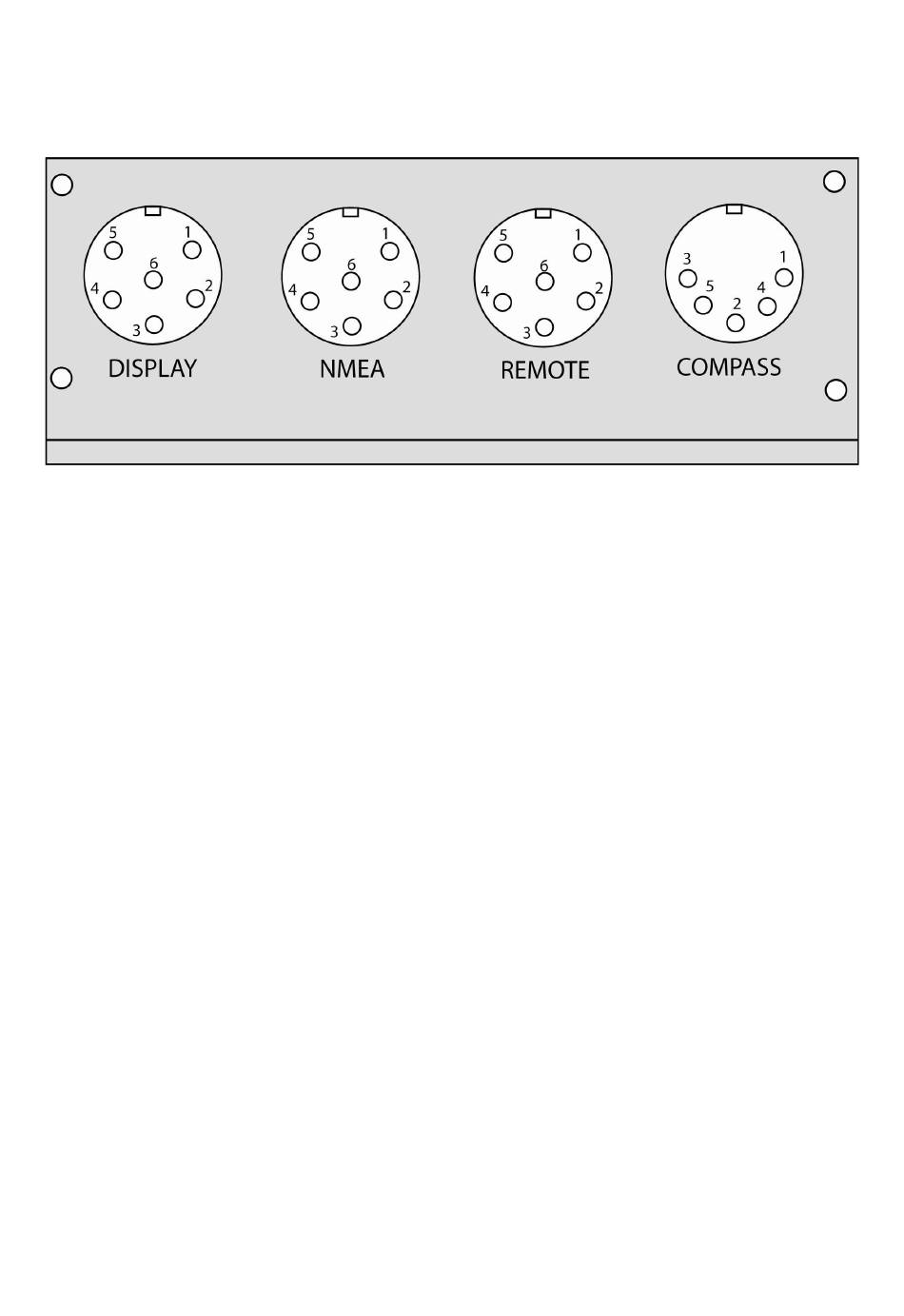

C-Drive Unit Connection
Layout
Input Connections:
NOTE: P in identification from end of C-Drive unit
(Also solder side of plug pins.)
Display - Connection for Head units and GPS Data
Pin 1 NMEA One
Pin 2 NMEA One
Pin 3 Transmit NMEA
Pin 4 0 VDC
Pin 5 NMEA Two
Pin 6 +10 Vdc
NMEA - Connection NMEA Data In/Out, Electronic Compass.
Pin 1 NMEA Three
Pin 2 NMEA Three
Pin 3 Transmit NMEA
Pin 4 0 VDC
Pin 5 NMEA Three
Pin 6 +10 VDC
Remote - Connection for 2 remotes, Steering levers, wheels, etc.
Pin 1 +5V Power Out
Pin 2 Remote 1 Steering Signal Input
Pin 3 0v, Common Ground
Pin 4 Remote 1 Auto / Manual Select
Pin 5 Remote 2 Steering Signal Input
Pin 6 Remote 2 Auto / Manual Select
Input +
Input –
Data +
Power out
Input +
Power out
Input +
Input –
Data +
Power out
Input +
Power out
Version 2.0 Rev 1 October 2021
GPS
GPS
TMQ Display Data
Negative
TMQ Display Data
Display Power
Heading Data
Heading Data
TMQ Data
Negative
Heading Data
Compass Power
Red
Green
Blue
Yellow
Green
Yellow
13 of 36
