Output Drive Connections
Motor and Bypass Valve (Clutch) Connections
The motor and bypass terminals are for connection of rudder position
actuators.
The C-Drive can control an hydraulic reversing pump, mechanical drive, linear
actuator or solenoid valves up to a maximum current rating of 15 amps.

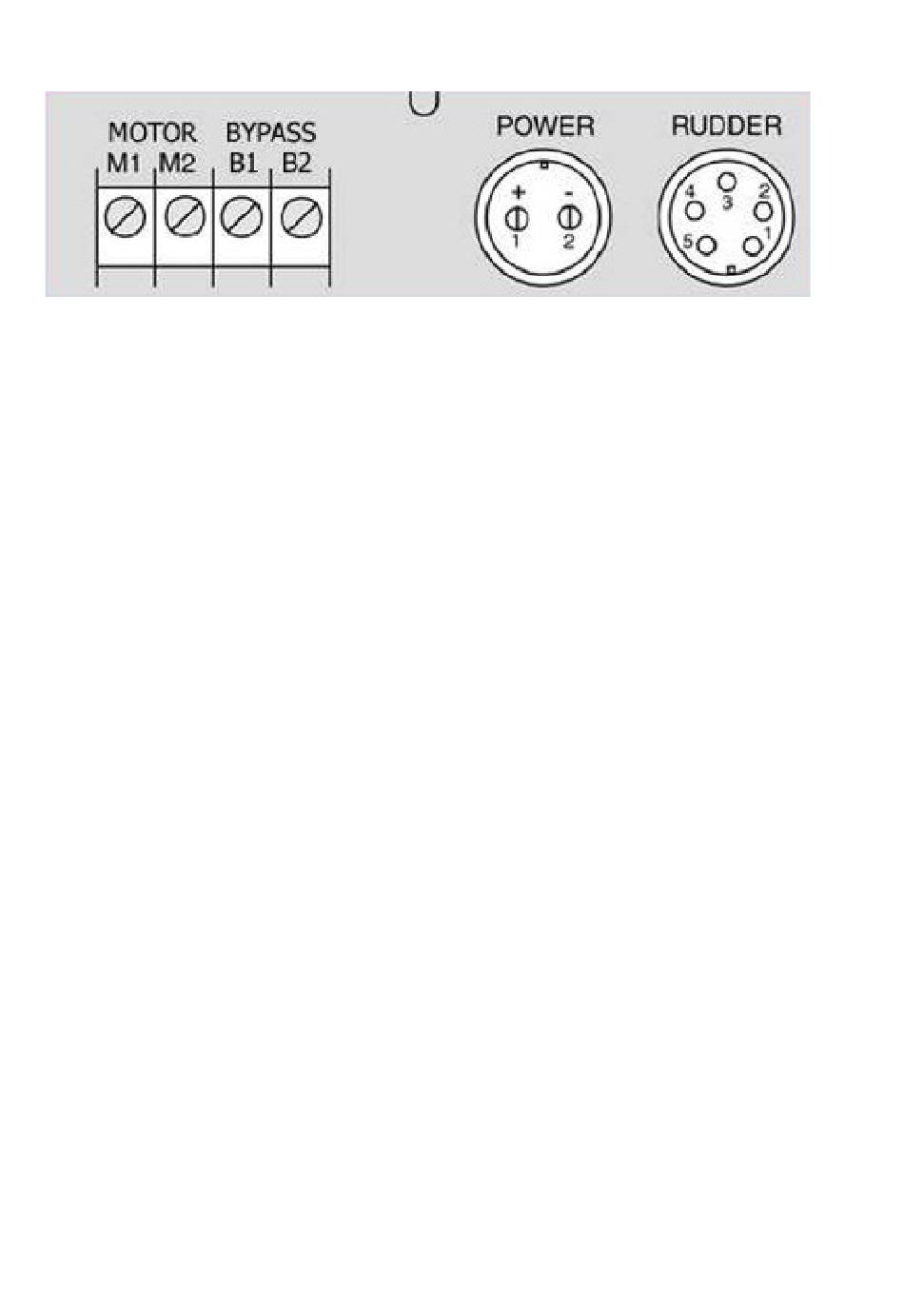

The motor is connected to M1 and M2 terminals. Where a bypass valve is
used (linear hydraulic actuator) or a mechanical drive with electric clutch, the
valve or clutch is connected to B1 and B2
Note: The motor wires may require reversing to provide the correct
rudder direction movement
