True Manufacturing Co., Inc.
Be sure to read and fully understand
before installing, operating, maintaining or servicing
this appliance. Failure to do so can result in appliance
failure, property damage, serious injury or death.
Appliance failure, injury or property damage due to
improper installation is not covered by warranty.
True Manufacturing Co., Inc.
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636) 240-2400 • FAX: (636)-272-2408
International FAX: (636)-272-7546 • (800)-325-6152
Parts Department: (800)-424-TRUE (424-8783)
Parts Department FAX: (636)-272-9471
Contact Us
Warranty Phone: +1 855-299-3510
Warranty Email: CommercialIceWarrantyInquiries@truemfg.com
Technical Phone: +1 888-783-1429
Technical Email: CommercialIce@truemfg.com
TEC_TM_171 | REV. G | EN
WARNING!
this document
INSTALLATION MANUAL
TRUE tracks the history of your appliance
For easy reference, record your appliances full model name and
serial number below. This information is on your serial label.
Serial label location varies by appliance.
Model Name:
Serial Number:
INSTALLATION MANUAL
02/28/2024

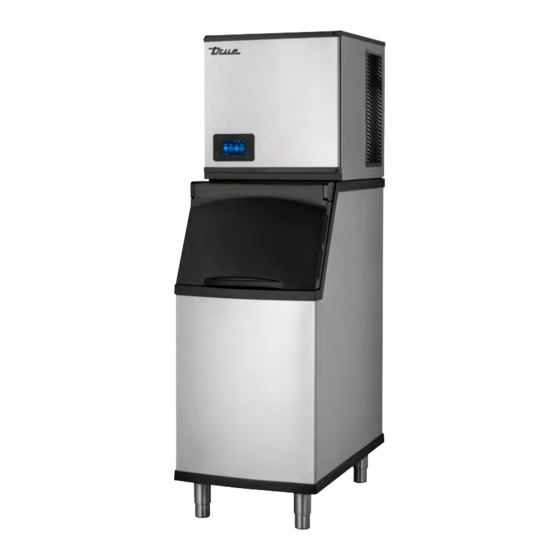

TRUE ICE
USER ACTION!
by its serial number.
TRUE ICE
Original Instructions
224534-G
Advertisement
Table of Contents
Related Manuals for True ICE
Summary of Contents for True ICE
- Page 1 USER ACTION! WARNING! this document Be sure to read and fully understand TRUE tracks the history of your appliance by its serial number. before installing, operating, maintaining or servicing For easy reference, record your appliances full model name and this appliance. Failure to do so can result in appliance serial number below.
-
Page 2: Table Of Contents
F O R YO U R PU R C H A S E Congratulations! The primary purpose of this document is to assist the installation, maintenance, and servicing of your TRUE appliance. This document contains information important to safety, operation, maintenance, and servicing. DO NOT discard this document. -
Page 3: Installation & Setup Checklist
‰ Has the fan blade (if applicable) been checked to ensure it turns freely? ‰ Has the end user been given the instruction manual, as well as instructed on how to operate the ice machine and the importance of the recommended periodic maintenance? ‰... -
Page 4: Preface
The warning, guidelines, and recommendations within this document are meant to prevent appliance damage, injury, or death. Please carefully read all warnings, guidelines, and recommendations before proceeding to ensure the continued safe use and maintenance of your TRUE ice machine. Signal & Symbol Definitions Below are symbols you may see in this document. - Page 5 TRUE ICE truemfg.com Preface Additional Symbols Additional Symbols symbol; alerts reader Mandatory action alert to required or recommended actions. Obey all Wear protection. messages and recommendations following this symbol to avoid appliance or product damage. not related to hazards or Important information NOTICE ›...
-
Page 6: Important Safety Information
Appliance failure, personal injury, or property damage due to improper installation is not covered by warranty. • Failure to install, operate, and maintain the ice machine as detailed in this document will negatively affect safety, appliance performance, component life, and warranty coverage. -
Page 7: Personal Injury Warnings
California to cause cancer and birth defects or other reproductive harm. For more information go to P65warnings.ca.gov. Moisture from improper drainage can create slippery surfaces near the ice machine. It is your duty to Slippery Surfaces! immediately warn your customers of, and dry, the slippery surface. All wet floor areas must be marked with a wet floor sign. - Page 8 Important Safety Information (cont.) WARNING! (cont.) Take care when moving, installing, cleaning, servicing, and maintaining the ice machine to avoid cuts. Be sure to Sharp edges! take care when reaching under the appliance or handling metal components. • Stay clear of pinch point areas, such as the space between appliance doors and surrounding cabinetry. Take care closing doors with children nearby.
-
Page 9: Hydrocarbon Refrigerant Warnings
Important Safety Information (cont.) Hydrocarbon Refrigerant Warnings TRUE appliances use hydrocarbon refrigerant (R-290/513A/600a). Check the nameplate or rating label to identify the ice machine's refrigerant. See "Label Locations" (pg. 15). DANGER! Risk of fire or explosion! Flammable refrigerant used. -
Page 10: Electrical Safety Warnings
• The ice machine should receive power from its own individual dedicated electrical circuit. This provides the best performance and prevents overloading the power supply. • Toggling the rocker switch does not remove power from all components. Unplug the ice machine or turn off the power supply before installation or servicing. -
Page 11: About Your Ice Machine & Installation Requirements
Proper installation, care and maintenance are essential for maximum performance and trouble-free operation of your equipment. The appliance owner is responsible for proper installation and maintaining the ice machine as described in the document. Routine care and maintenance procedures are not truemfg.com covered by TRUE's warranty. -
Page 12: Model Nomenclature
TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Model Nomenclature Electrical Configuration Condenser Type 1=115V/60Hz/1Ø Model Family A (Air) Width 2=230V/60Hz/1Ø TI (True Ice Machine) (in) W (Water) 3=230V/50Hz/1Ø TID (True Ice Dispenser) R (Remote) 4=230V/60Hz/3Ø TIB (True Ice Bin) 5=480V/60Hz/3Ø... - Page 13 TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Option 0 (No TrueZone; no True Connect) Model Family Width Condenser Type 1 (TrueZone; True Connect) TCIM (True Cube Ice Modular) (in) A (Air) 2 (TrueZone; No True Connect) Version 3 (No TrueZone;...
-
Page 14: Ice Machine Specifications
TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Ice Machine Specifications *Both interchangeable Air-cooled ice machine clearances Model Sides Back TCIM/TI-422 6" (152.4 mm) 6" (152.4 mm) 6" (152.4 mm) TCIM/TI-430 3" (76.2 mm) 6" (152.4 mm) 6"... -
Page 15: Label Locations
Placing equipment in these locations will result in reduced capacities, high system pressures and may cause equipment failure. • This ice machine will pull air in from the front/sides and exhaust air out the back. See fig. 2. This ice machine will also reverse fan motor periodically to remove dirt from the condenser coil. -
Page 16: Cube Size
About Your Ice Machine & Installation Requirements (cont.) Cube Size True Ice Machines produce ice in three different cube sizes: Half (small), full (medium), and large. The cube size is part of your full model name. See dimensions in fig. 1. -
Page 17: Basic Screen & Icon Definitions
TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Basic Screen & Icon Definitions For more information on screen and icon definitions, see "Control Display Modes & Operation" (pg. 38). Home Screen Manual Screen The default display screen. -
Page 18: Plan Views
TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Plan Views Water Inlet TI-422/522 22-7/32" 11-3/16" 1/2" FNPT (284 mm) (565 mm) 10-5/32" (258 mm) 22-3/16" Water Outlet (563 mm) 3/4" FNPT 7/8" (22 mm) 8-15/32" (215 mm) - Page 19 TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) TI-430/530/630 Water Inlet 30-3/16" 11-3/16" 2-9/32" 1/2" FNPT (767 mm) (284 mm) (58 mm) 22-3/16" Water Outlet (563 mm) 3/4" FNPT 7/8" (22 mm) 13-5/8" (346 mm) Front Rear...
- Page 20 TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Water Inlet 22-1/4" TI-622 11-3/16" 1/2" FNPT (565 mm) (284 mm) 14-5/32" (360 mm) 27-3/16" (691 mm) Water Outlet 3/4" FNPT 7/8" (22 mm) 8-15/32" (215 mm) Front Rear...
-
Page 21: Plumbing Connection Requirements
Warranty does not cover issues caused by improper installation, lack of basic preventative maintenance, or harm caused to the ice machine by improper use of cleaners/sanitizers or by use of reverse osmosis water that does not have a neutral pH. - Page 22 TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Plumbing Connections Water Supply 1/2" Female NPT Fitting Drain Connection 3/4" Female NPT Fitting Water temperature and pressure Minimum Maximum Air Temperature 35˚F (1.7˚C) 110˚F (43.3˚C) Water Temperature 35˚F (1.7˚C) 110˚F (43.3˚C)
-
Page 23: Water Filter Setup
About Your Ice Machine & Installation Requirements (cont.) Drain Requirements • Run the ice machine drain line, dispenser unit/ice storage bin drain line, and water-cooled condenser drain line (if applicable) separately. • For optimum flow, drain lines must have 1/4" fall per 12" (20 mm fall per 1 m) of horizontal run. -
Page 24: Electrical Requirements
• Ice machines come equipped with a rocker switch. See location in fig. 2. • Make electrical connections inside the ice machine's junction box on the appliance's rear. See figs. 3 and 4. Fig. 1. Wiring diagram located under the top panel. - Page 25 DOES NOT disconnect power from the entire unit. Fig. 3. Make the electrical connections inside the ice machine's junction box. Be sure to use strain reliefs. Always use the green grounding screw when making electrical connections.
- Page 26 TRUE ICE truemfg.com About Your Ice Machine & Installation Requirements (cont.) Cord Specifications The opening for the power supply connection is 7/8" diameter to fit a 1/2" trade size conduit. Min/Max circuit ampacity & fuse size Model Minimum Circuit Maximum Overload Protection...
-
Page 27: Installation & Setup
Sharp Edges! • Take care when moving, installing, cleaning, servicing, and maintaining the ice machine to avoid cuts. Be sure to take care when reaching under the ice machine or handling metal components. Ice Machine Location •... -
Page 28: Uncrating
Panels cannot be removed without opening the front panels. 2. Carefully lift the front of the top panel. Then, slide the top panel towards the ice machine's rear and lift the panel. See fig. 2. 3. Remove the side panel's rear screw. See fig. 3. -
Page 29: Ice Storage Bin Or Dispenser
Fig. 2. Always measure the bin (A) or dispenser (B) for the ice level sensor before mounting the ice machine. • The ice machine can be installed on a dispenser unit or ice storage bin. If required, install an adapter kit or top kit. See fig. 3. Contact TRUE for recommendations. - Page 30 Fig. 5. Ice bins with (A) and without (B) a drop-zone deflector. Bin Adapters Bin adapters cover the opening when the ice storage bin is wider than the ice machine. See examples of possible configurations below. To purchase, contact TRUE Parts Department at 800-424-8783 or PartsInquiries@TrueMFG.com.
-
Page 31: Leveling
Installation & Setup (cont.) Leveling Verify the ice machine is level front-to-back and side-to-side. Adjust level as needed. Antenna & Modem Installation (Optional Accessory) 1. Locate light grey modem harness on right side (22" Machine) or left side (30" Machine). Undo twist tie and feed connectors through bushing nearby on rear panel. -
Page 32: Dispenser Bracket
Ice level management is recommended to prevent water leakage or movement of ice machine during agitation. See "Ice Level Sensor Setup" (pg. 33). Follow the dispenser unit, adapter kit, or top kit instructions for securing the ice machine. If no instructions are available, secure the ice machine with the provided mounting brackets. -
Page 33: Ice Level Sensor Setup
Installation & Setup (cont.) Ice Level Sensor Setup The ice level sensor utilizes Time of Flight (TOF) technology to detect the amount of ice in the ice storage unit. The sensor has a safe class 1 laser with no possibility of eye damage. - Page 34 Press the values to open the number pad. Enter the desired setting and press ok. • Full Bin Distance (FBD) is the distance in centimeters between the sensor and the ice when the machine enters the FULL BIN state with the damper held down. See fig. 1.
- Page 35 The machine will enter the FULL BIN state once the Value is greater than the Full Bin Ice Threshold [PBD]. For instance, if PBD is set to 50, then the ice machine will enter the FULL BIN state when the Value is greater than 50% (in other words, when the ice storage unit is at least half full).
-
Page 36: Initial Sanitizing
TRUE recommends using TRUE Ice Machine Descaler. To purchase, contact TRUE Parts Department at 800-424-8783 or PartsInquiries@TrueMFG.com If using a non-True descaler (Nickel-safe) recommended dilution for soaking parts is 3 fl oz (88.7 mL) per 1 gal (3.78 L) and recommended amount for evaporator cleaning is 6-8 fl oz (177.4-236.6 mL). -
Page 37: Installation & Setup Checklist
‰ Has the fan blade (if applicable) been checked to ensure it turns freely? ‰ Has the end user been given the instruction manual, as well as instructed on how to operate the ice machine and the importance of the recommended periodic maintenance? ‰... -
Page 38: Ice Machine Operation
There are four access levels: USER (0), ADMIN (1), ADMIN (2), and ADMIN (3). The USER (0) level is designed with your customer in mind. It allows them to see the mode of operation and screen saver but restricts any function that would affect the ice machine. The ADMIN (1) level is for the ice machine owner. - Page 39 TRUE ICE truemfg.com Ice Machine Operation (cont.) Function access levels Functions Sub-Functions USER (0) ADMIN (1) ADMIN (2) MAKE ICE Turning the ice machine ON or OFF CLEAN Reverse Condenser Fan FILL MANUAL DRAIN CIRCULATE HARVEST Date, Hour, Language MENU...
- Page 40 Allows for manual operation of the four modes pictured. Parts of the main screen Parts of the manual screen Make Ice; Starts the Ice Making Sequence Fill; Allows for Manual Fill of Sump Clean; Starts the Cleaning Sequence Drain; Allows for Manual Drain of Sump Preventative Maintenance Timers;...
- Page 41 Access to Alarms Clears the Alarm Log Back; Goes Back to Previous Screen Status Screen Shows current mode of operation once the "Make Ice" icon is Forward; Access to Info Screen pressed. Active Alarm Screen Shows any alarms that are currently active.
- Page 42 Password Protected Access Level Login Real Time Graph Set Language, Temperature Format, Time Format and Date Daily Ice Level Format Set Schedule to Turn Ice Machine On and Off Weekly Ice Level Service Settings Screen; Parameter settings Runtime Statistics Ice Thickness Adjustment Cycle History Set "Level of Water Hardness or Scale [SCA]"...
- Page 43 Graphs the ice level over a 24-hour period. Weekly Ice Level Parts of the cycle history screen Graphs the ice level over the past seven days. Reset Cycle History Ice Machine Information Displays model name, serial number, install date, manufactured date, and warranty days remaining.
-
Page 44: Reset Reminders
TRUE ICE truemfg.com Ice Machine Operation (cont.) Reset Reminders Adjust Reminder Settings Reset preventative maintenance reminders after performing There are three reminders that can be adjusted: preventative maintenance. • Evaporator cleaning (Descale/Sanitize). 1. Press SERVICE. • Air filter/condenser cleaning. • Water filter (also see "Water Filter Setup", pg. 23). - Page 45 TRUE ICE truemfg.com Ice Machine Operation (cont.) 3. With the scroll bar, scroll to the desired parameter: 4. Press anywhere on the desired parameter's row. Then, in the number pad, enter the desired setting. • #17: Evaporator cleaning reminder. • #21: Air filter/condenser cleaning reminder.
-
Page 46: Startup
SANITIZING. Please see "Cleaning Navigation" (pg. 52). • Sanitize the ice storage bin liner or dispenser unit using the recommended sanitizer and water solution. See the cleaning sticker or "Descaling and Sanitizing Procedure:" (pg. 60). - Page 47 -6 is the thinnest setting. º For thicker ice, enter a number 1-6. 6 is the thickest setting. 4. After setting the ice size, press okay. The display will return to the MENU screen. TEC_TM_171 | REV. G | EN...
-
Page 48: Sequence Of Operation
As the cycle continues the ice grows thicker and the water level in the sump begins to drop. Once enough water is frozen to form a full sheet of ice the water level is low enough that the water level sensor will initiate the HARVEST cycle. - Page 49 Set a schedule to turn the ice machine on and off automatically. 1. In the upper right corner of the screen, press Menu 5. In the ON screen, enter the desired time for the ice machine to turn on, and then press okay 2.
- Page 50 TRUE ICE truemfg.com Ice Machine Operation (cont.) 8. Repeat steps 4-7 as needed for each day of the week. Then, 2. In the Menu screen, press Scheduling press return to go back to the Menu screen. 3. In the Scheduling screen, press DISABLE.
- Page 51 Ice Machine Operation (cont.) Cleaning Navigation Adjust for Water Quality The procedure that follows is not the cleaning The water quality setting allows your ice machine to easily and sanitizing instructions. This section details the accommodate different levels of water quality/hardness/scale.
- Page 52 Ice Machine Operation (cont.) Cleaning Navigation (cont.) 4. When "Would you like the unit to start making ice once 7. Wait for the ice machine to complete the Descaling and descaling and/or sanitizing is complete?" appears, press Sanitizing sequences. There will be a series of rinse, drain and either NO or YES.
- Page 53 TRUE ICE truemfg.com Notes TEC_TM_171 | REV. G | EN 02/28/2024 Page 53 of 72...
-
Page 54: Maintenance & Servicing
Use appropriate tools, safety equipment, and PPE during installation and servicing. Sharp Edges! • Take care when moving, installing, cleaning, servicing, and maintaining the ice machine to avoid cuts. Be sure to take care when reaching under the ice machine or handling metal components. -
Page 55: Removal From Service & Winterization
1. Clean and sanitize the ice machine. See "Descaling and Sanitizing Procedure" (pg. 60). 2. Turn off the water supply. 3. Disconnect and drain the water supply line at the rear of the ice machine and drain the sump. 4. In the Home Screen, press MANUAL . -
Page 56: Cleaning The Ice Level Sensor
Maintenance & Servicing (cont.) Cleaning the Ice Level Sensor Routine cleaning of the ice level sensor is not required. Cleaning is only necessary if the lens has any obstructions (smudges, water droplets, dust, scale, condensation, etc.). Fig. 1. Ice level sensor assembly location. - Page 57 Invisible laser radiation. Do not look directly at light. Always disconnect power before servicing the lamp. Electrical shock or burn hazard! High Voltage Inside! • Toggling the rocker switch does not remove power from all components. Unplug the ice machine or turn off the power supply before servicing.
- Page 58 TRUE ICE truemfg.com Maintenance & Servicing (cont.) Fig. 1. Front panel screw locations. Fig. 2. TRUEZONE UV system top view. Fig. 3. TRUEZONE UV system side view. Fig. 4. Rubber seal notch. TRUEZONE bracket screw locations. Cleanup Procedure for Accidental Lamp Breakage These lamps contain a small amount of mercury sealed within the glass tubing.
-
Page 59: Recommended Cleaning Frequency
NOTICE! Maintenance procedures are not covered by warranty. It is the User's responsibility to keep the ice machine and ice storage bin (or dispenser if applicable) in a sanitary condition in accordance with the instructions in this manual. When using a non-True Manufacturing bin or dispenser, follow the maintenance guidelines of the manufacturer of the product. -
Page 60: Exterior Cleaning
TRUE recommends using TRUE Ice Machine Descaler. To purchase, contact TRUE Parts Department at 800-424-8783 or PartsInquiries@TrueMFG.com If using a non-True descaler (Nickel-safe) recommended dilution for soaking parts is 3 fl oz (88.7 mL) per 1 gal (3.78 L) and recommended amount for evaporator cleaning is 6-8 fl oz (177.4-236.6 mL). - Page 61 Maintenance & Servicing (cont.) If necessary, cancel the descaling or sanitizing sequences by 6. When "Would you like the unit to start making ice once pressing cancel . However, the sequences cannot be cancelled descaling and/or sanitizing is complete?" appears, after cleaner or sanitizer has been added to the sump and OK has press NO.
- Page 62 • Sump drain tubing • Water level air column • Base (area above the sump, under the evaporator) 11. Prepare a solution of 10 fl oz (296 mL) TRUE ice machine descaler to 1 gal (3.8 L) of warm water. NOTICE ›...
- Page 63 TRUE ICE truemfg.com Maintenance & Servicing (cont.) 4. With a spray bottle, heavily spray all food zone areas with the Sanitizing sanitizing solution. These areas include the following: 1. Prepare a solution of 1.5 fl oz (44mL) chlorine bleach (5.25% •...
- Page 64 4.5 oz (133 mL) chlorine bleach (5.25% sodium hypochlorite) between the evaporator and the damper. 8. When "Would you like the unit to start making ice once descaling and/or sanitizing is complete?" appears, press either NO or YES. The ice machine will go into PRE-CLEANING.
-
Page 65: Preventative Maintenance Cleaning And Sanitizing Procedure
Invisible laser radiation. Do not look directly at light. Always disconnect power before servicing 4. Press PREVENTATIVE MAINT. the lamp. USER ACTION! TRUE recommends using TRUE Ice Machine Descaler. To purchase, contact TRUE Parts Department at 800-424-8783 or PartsInquiries@TrueMFG.com If using a non-True descaler (Nickel-safe) recommended dilution for soaking parts is 3 fl oz (88.7 mL) per 1 gal (3.78 L) and recommended... - Page 66 TRUE ICE truemfg.com Maintenance & Servicing (cont.) 5. When "Would you like the unit to start making ice once 8. After adding the descaler, press OK. The display will then show the sequence status. descaling and/or sanitizing is complete?" appears, press The sequence will not proceed from this point NOTICE ›...
-
Page 67: Troubleshooting
• Ice machine turned off • Press "Make Ice" icon • Ice machine off on alert • Reset the ice machine by pressing the "Make Ice" icon until the ice machine beeps then press "Make Ice" icon again Low production, ice is malformed or •... - Page 68 Problem Possible Cause Possible Remedy Value is always 100% • Read Ice Level Sensor Setup Section (pg. 33) to setup EBD and FBD. • Empty Bin Distance (EBD) and Full Bin • Change EBD by 1 cm increments up to Distance (FBD) set incorrectly +/- 5 cm until Value changes.
- Page 69 TRUE ICE truemfg.com Maintenance & Servicing (cont.) Alarm codes CODE (1) ALARMS ON 4.3" DISPLAY POP-UP TYPE (2) ENABLED IN (3) ALARM T1 Input HW error (analog input) always ALARM T2 Input HW error (analog input) always ALARM T3 Input...
-
Page 70: Warranty
TRUE ICE truemfg.com Warranty Information (USA & Canada Only) Warranty Information To view and download the Warranty Information for USA & Canada, please scan the QR code below. Page 70 of 72 02/28/2024 P#224534 TEC_TM_171 | REV. G | EN... - Page 71 TRUE ICE truemfg.com Notes TEC_TM_171 | REV. G | EN 02/28/2024 Page 71 of 72...
