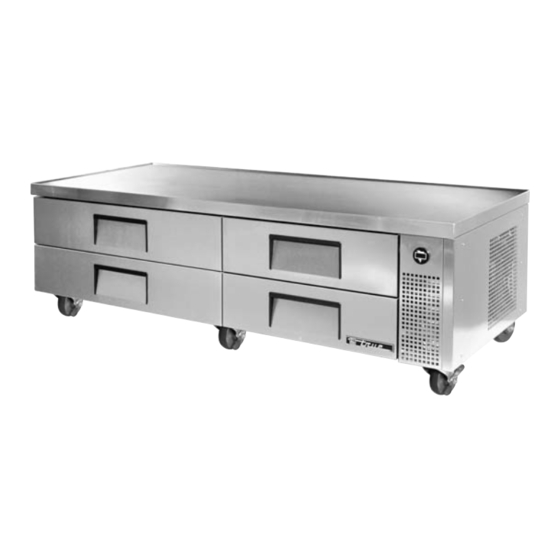

True TRCB-52 Installation Manual

Chef base equipment
Hide thumbs Also See for TRCB-52:
Table of Contents

Advertisement

Quick Links

CONGRATULATIONS!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.

TABLE OF CONTENTS

Proper Disposal, Connecting Electricity, & Adapter Plugs
Ownership, Uncrating, & How to Connect to Electricity
Locating and Leveling
Mechanical Temperature Controls Sequence of Operation
WARRANTY
Warranty
TRUE MANUFACTURING CO., INC.
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152
Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471
Web: www.truemfg.com
TEC_RM_006 REV. A
TRUE
.,
.
manufacturing co
inc
trcb models
1
2
3
4
5
6
7
8
9
13
14
15
16
INSTALLATION MANUAL
-
chef base equipment
09/21/2018
INSTALLATION MANUAL
-
trcb
chef base equipment
TRCB-82
Page 1 of 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRCB-52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True TRCB-52

Summary of Contents for True TRCB-52

  • Page 1: Table Of Contents

    TRUE MANUFACTURING CO., INC. 2001 East Terra Lane • O’Fallon, Missouri 63366-4434 (636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152 Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471 Web: www.truemfg.com TEC_RM_006 REV. A 09/21/2018 Page 1 of 1...

  • Page 2: Safety Information

    You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE cooler when properly maintained will give you many years of trouble-free service. WARNING: Use this appliance for its intended purpose as described in this Owner Manual.
  • Page 3 NEMA plugs TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source. NOTE: International plug configurations vary by voltage and country.

  • Page 4: Installation

    The cost of a professional installation is money well spent. • Appliance tested according to the climate classes 5 and 7 Before you start to install your TRUE unit, carefully inspect it for temperature and relative humidity. freight damage. If damage is discovered, immediately file a claim with the delivery freight carrier.

  • Page 5: Wire Gauge Chart

    TRUE – trcb chef base equipment truemfg WIRE GAUGE CHART 115 Volt s Distance In Feet To Center of Load 230 Volts Distance In Feet To Center of Load Amps 20 30 40 50 60 70 80 90 100 120 140 160...
  • Page 6 PLUGGING INTO POWER SOURCE. INSUFFICIENT. Remove skid by unscrewing all base rail anchor brackets. Place Proper leveling of your TRUE cooler is critical to operating skid to the side. success (for non-mobile models). Effective condensate removal and door operation will be effected by leveling.

  • Page 7: Installation Of Legs Or Castors

    TRUE – trcb chef base equipment truemfg INSTALLATION OF CASTORS OR OPTIONAL LEGS Important safeguard for installation of leg/castor. Images 1 & 2 demonstrate procedure. LEVELING CASTORS Four sets of shims have been provided in warranty packet for leveling castored units positioned on uneven floors. Shims must be positioned...

  • Page 8: Setup

    TRUE – trcb chef base equipment truemfg SETUP STANDARD ACCESSORIES DRAWER REMOVAL & INSTALLATION Depending on the version and model of the cabinet, one of the fol- lowing drawer configurations will be standard. DRAWER SET 2 DRAWER SET 1 REMOVAL REMOVAL Slide out drawer and locate white drawer retainer.

  • Page 9: Operation

    RECOMMENDATION - Before loading product we recommend • Mechanical temperature control is located inside of unit. you run your TRUE unit empty for two to three days. This allows you See website for adjustments, sequence of operation, and more to be sure electrical wiring and installation are correct and no ship- information.
  • Page 10 TRUE – trcb chef base equipment truemfg MECHANICAL TEMPERATURE CONTROLS COIL SENSING An evaporator coil sensing temperature control ensures that the evaporator coil will remain clear of frost and ice by not allowing the compressor to restart until the coil temperature is above the freezing temperature.
  • Page 11 TRUE – trcb chef base equipment truemfg WHEN TO MAKE AN ADJUSTMENT TO A MECHANICAL TEMPERATURE CONTROL We advise to make a mechanical temperature control adjustment only for a high altitude location. HOW TO ADJUST A MECHANICAL TEMPERATURE CONTROL OPERATION INSTRUCTIONS:...
  • Page 12 TRUE – trcb chef base equipment truemfg INSTRUCTIONS: DANFOSS TEMPERATURE CONTROL ADJUSTMENT FOR HIGH ALTITUDE APPLICATIONS STEP 1 - Unplug cooler. STEP 2 - Remove the screws that secure the temperature control to the inset box. STEP 3 - To make these adjustments it may be necessary to remove the temperature control from the housing.
  • Page 13 TRUE – trcb chef base equipment truemfg CHART CCW Adjustment (based on 360°/ Height complete turn) 2000' 42° 3000' 78° 4000' 114° 5000' 150° 6000' 186° 7000' 222° 8000' 258° 9000' 294° 10,000' 330° BUL. NO. TEC_RM_006 REV. A 09/21/2018...

  • Page 14: Maintenance, Care, Cleaning

    TRUE – trcb chef base equipment truemfg MAINTENANCE, CARE, CLEANING CLEANING THE CONDENSER COIL When using electrical appliances, basic safety precautions should be followed, including the following: TOOLS REQUIRED 35ϒ Fϒ • Phillips Screwdriver • Air Tank or CO2 Tank •...
  • Page 15 TRUE – trcb chef base equipment truemfg ELECTRONIC TEMPERATURE CONTROLS LAE ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION t1 = Thermostat t2 = Defrost t3 = Display t3 probe is not installed and / or activated in all applications when t3 is not installed and / or activated, the display probe is t1.
  • Page 16 TRUE – trcb chef base equipment truemfg HOW TO USE AN LAE ELECTRONIC CONTROL LAE Control LAE Control Icons Compressor Running Evaporator Fan Running Cabinet in Defrost Activation of 2nd Parameter Set Alarm Info / Set Point Manual Defrost /...
  • Page 17 TRUE – trcb chef base equipment truemfg Press and hold to show either “Yes” or “no”. “Yes” = locked “no” = Unlocked HOLD HOLD If “Yes”, while still holding, press and release down arrow to change to “no” (unlocked). If “no”, while still holding, press and release up arrow to change to “Yes”...
  • Page 18 TRUE – trcb chef base equipment truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button TURN THE CONTROL ON/OFF WHY: To deactivate all electrical components. NOTE: Display must be unlocked prior to proceeding.
  • Page 19 TRUE – trcb chef base equipment truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button CHANGE THE SET POINT TEMPERATURE WHY: To increase or decrease the product/cabinet temperature. NOTE: Display must be unlocked prior to proceeding.
  • Page 20 TRUE – trcb chef base equipment truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button INITIATE A MANUAL DEFROST WHY: If a light switch is not installed, interior lights may be controlled by the display.
  • Page 21 TRUE – trcb chef base equipment truemfg …to then press and hold again until “dh6” is shown. HOLD Continue to hold until “dEF” is shown. HOLD TEC_RM_006 REV. A 09/21/2018 Page 20 of 27...
  • Page 22 TRUE – trcb chef base equipment truemfg LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button CHANGE DISPLAY READOUT FROM FAHRENHEIT TO CELSIUS WHY: Changing readout display will assist with customer preference/application.
  • Page 23 TRUE – trcb chef base equipment truemfg Press and release until “ScL” is shown. PRESS AND RELEASE Press and hold to show either “°F” or 1°c”. Continued next page. HOLD HOLD TEC_RM_006 REV. A 09/21/2018 Page 22 of 27...
  • Page 24 TRUE – trcb chef base equipment truemfg If “°F”, while still holding, press and release down arrow to change to “1°c”. HOLD PRESS AND RELEASE If “1°c”., while still holding, press and release down arrow to change to “°F”. HOLD...
  • Page 25 TRUE – trcb chef base equipment truemfg DISPLAY CODES DISPLAY Defrost in progress Room high temperature alarm Controller in stand-by Room low temperature alarm Door open alarm Probe T1 failure Instant Probe 1 temperature Probe T2 failure Instant Probe 2 temperature...

  • Page 26: Important Warranty Information

    Reconnect the electrical power to the unit. rear of the unit. You must remove the cabinet grill to expose the If you have any questions, please call TRUE Manufacturing at 636- Condenser. 240-2400 or 800-325-6152 and ask for the Service Department.

  • Page 27: Stainless Steel Equipment Care And Cleaning

    TRUE – trcb chef base equipment truemfg STAINLESS STEEL EQUIPMENT CARE 8 STEPS THAT CAN HELP PREVENT RUST ON AND CLEANING STAINLESS STEEL: CAUTION: Do not use any steel wool, abrasive or chlorine based USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces.
  • Page 28 TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of three (3) years from the date of original installation or 39 months after shipment date from TRUE, whichever occurs first.
