Summary of Contents for SCHUNK SINO R

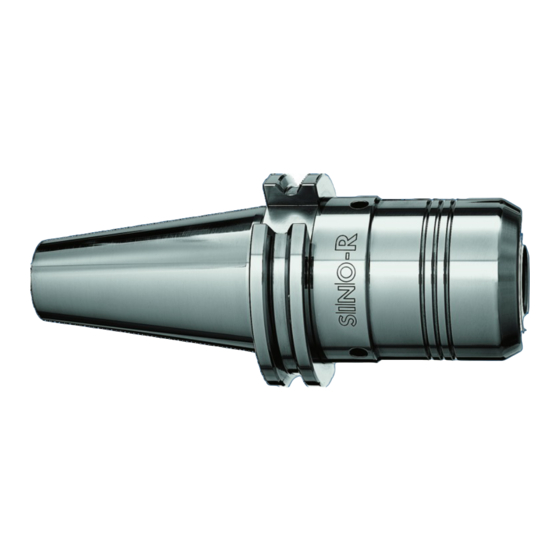

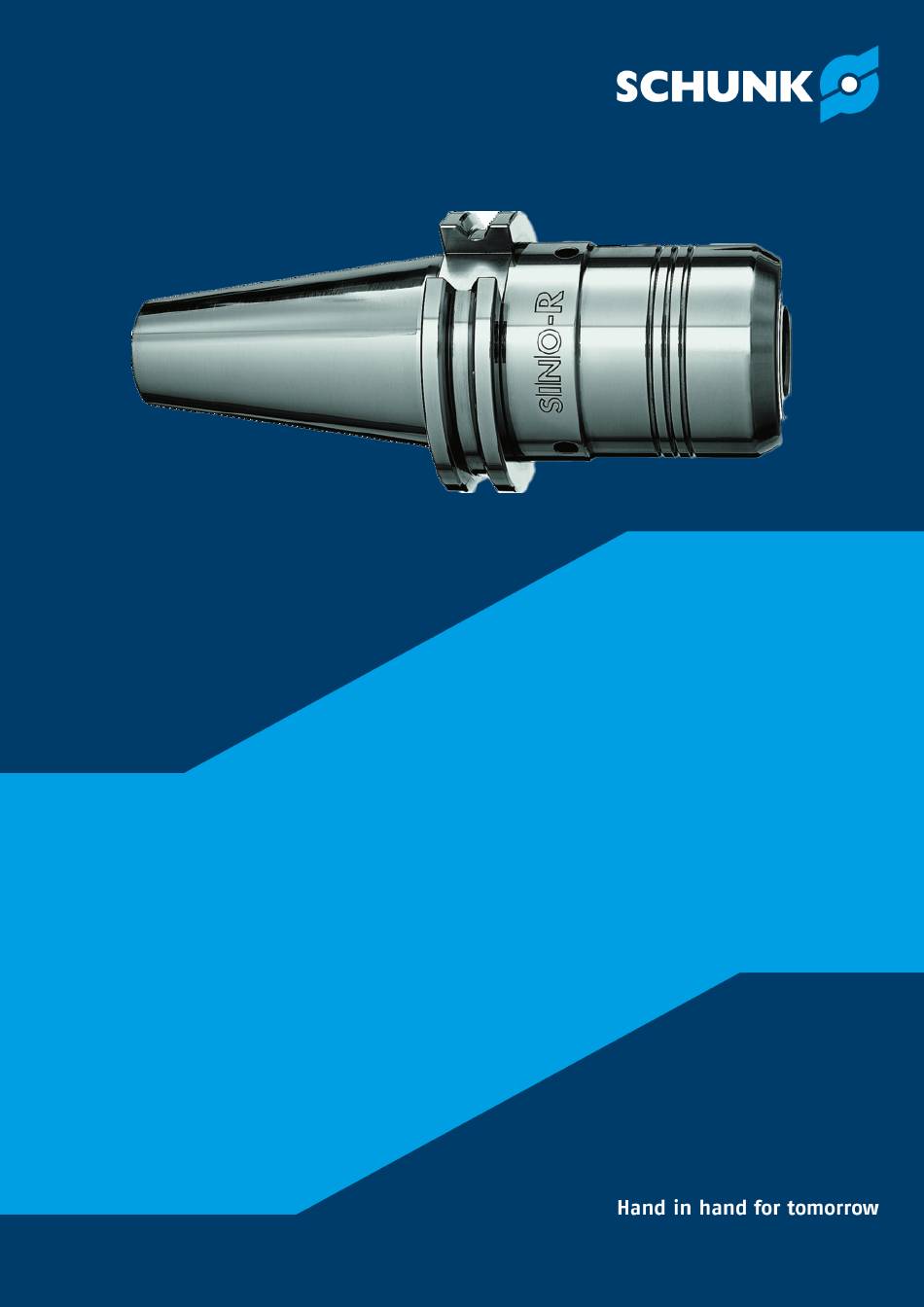

- Page 1 Assembly and operating manual SINO R Mechanical Toolholder Translation of original operating manual...
- Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK SE & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 1561539 Version: 01.00 | 09/01/2024 | en...
-
Page 3: Table Of Contents
5 Operation ................... 21 5.1 Basic information................21 5.2 Clamping the tool................23 5.3 Unclamping the tool ................25 5.4 Changing the tool................25 5.5 Coolant supply..................26 01.00 | SINO R | Assembly and operating manual | en | 1561539... - Page 4 7.2.4 Lubricating the actuating thread ........... 31 8 Troubleshooting................... 32 9 Disassembly ..................33 9.1 Basic information................33 9.2 Disassembly of the product ..............33 10 Storage....................34 11 Disposal ..................... 35 01.00 | SINO R | Assembly and operating manual | en | 1561539...
-
Page 5: General
Dangers for persons! Non-observance can lead to irreversible injury and even death. CAUTION Dangers for persons! Non-observance can cause minor injuries. CAUTION Material damage! Information about avoiding material damage. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 6: Definition Of Terms
Wear parts and parts that come in contact with the tool or machine are not covered by the warranty. 1.3 Scope of delivery Product Tool clamping technology safety information (ID 1561465) 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 7: Accessories
SINOmax sleeve remover for the removal of intermediate sleeves SCHUNK Vario or Mono Toolfix Mounting System Test shafts for checking the clamping force Cleaning brush for cleaning clamping diameters 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 8: Basic Safety Notes
} 3 [/ 14]. The maintenance and storage instructions are not observed } 7 [/ 29]. The product is used with heat shrinking technology. The product is used in explosive environments. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 9: Notes On Safe Operation
The operational safety and function of the product must not be impaired by external influences. Follow the country-specific applicable safety, accident prevention, and environmental protection regulations for the application field of the product. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 10: Personnel Qualification
Work on the product Necessary qualification Transport Qualified personnel/ instructed person Assembly/disassembly Specialist personnel Settings/functional testing Specialist personnel Operation Qualified personnel/ instructed person Maintenance/troubleshooting Specialist personnel/ SCHUNK service personnel Disposal Specialist personnel/ SCHUNK service personnel 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 11: Personal Protective Equipment
Use suitable assembly and transport devices*. Take precautions against pinching and crushing. * Assembly and transportation devices must be able to carry at least twice the attached weight. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 12: Constructional Changes
After a malfunction, ensure that the product is able to function properly and no increased risks have arisen. Do not recommission the product until the malfunction has been rectified. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 13: Hazardous Points On The Product
NOTE: Illustration may differ from the actual design. Position Danger when Danger due to Assembling/disassembling Cutting the product/clamping the tool Clamping the tool Crushing risk Assembling/disassembling Crushing risk the product 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 14: Technical Data
Permissible radial force F [N] * [inch] transmittable torque [Nm] 2000 4500 1 1/4 6600 * = with 2.5x clamping Ø, however max. 50 mm tool projecting length 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 15: Ambient Conditions And Operating Conditions
Cleaning temperature 0 to +60 Test temperature clamping force control +20 to +25 Maximum temperature, clamping without tool + 25 NOTE: The temperatures refer to the product. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 16: Maximum Rpm
Clamping Ø Max. speed of rotation [mm] [RPM] 40,000 40,000 40,000 40,000 25,000 Clamping Ø Max. speed of rotation [inch] [RPM] 40,000 40,000 40,000 1 1/4 25,000 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 17: Minimum Clamping Depth
Clamping Ø Minimum clamping depth [inch] [mm] 1 1/4 HSK-F63 without Clamping Ø Minimum clamping depth length adjustment [mm] [mm] screw Clamping Ø Minimum clamping depth [inch] [mm] 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 18: Usable Tool Shank Types
Tool shanks with projections/markings are difficult or impossible to fit and can impair the run-out accuracy of the overall system. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 19: Further Information On The Product
Data matrix code Open the website schunk.com and enter the 8-digit serial number ("SN:") located on the product in the search field. For further information, visit schunk.com/serialisierung 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 20: Design And Description
The clamping sleeve is tightened to the stop using the spanner wrench or the ring-shaped clamping key The high-end elastomer is tensioned against the expansion sleeve and clamps the tool. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 21: Operation
Before carrying out any work on the product, make sure that all surfaces have cooled down to the ambient temperature. Wear suitable protective equipment, especially protective gloves. 01.00 | SINO R | Assembly and operating manual | en | 1561539... - Page 22 The tool must be free of burrs and dirt on the shank. Do not adjust the tool length when the tool is clamped. CAUTION Do not completely unscrew the clamping sleeve! Loss of necessary clamping force and precision. 01.00 | SINO R | Assembly and operating manual | en | 1561539...
-
Page 23: Clamping The Tool
SINO-R with clamping Ø32: spanner wrench - SCHUNK ID number 0208879. Alternatively, SCHUNK SINOclamp ring-shaped clamping key with freewheel technology or the SCHUNK Toolfix Vario or Mono Mounting System can be used for clamping. 01.00 | SINO R | Assembly and operating manual | en | 1561539... - Page 24 [/ 14]. } 3 Turn the clamping sleeve clockwise using a spanner wrench or ring-shaped clamping key until it reaches the stop, and tighten. ð Product is clamped. 01.00 | SINO R | Assembly and operating manual | en | 1561539...
-
Page 25: Unclamping The Tool
NOTE: Approx. 1.5 rotations of the sleeve are required. ð Product is unclamped. Remove tool. 5.4 Changing the tool Unclamp and remove the tool [/ 25]. } 5.3 Join and clamp the new tool [/ 23]. } 5.2 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 26: Coolant Supply
Unscrew and remove the set-screw (item 1). Turn in the coolant supply. NOTE: Set-screw (item 2) is used to close the hole and may not be unscrewed. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 27: Assembly
CAUTION Risk of possible damage to the product! When transporting and handling the product, ensure that it is not damaged by knocks, impact, etc. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 28: Assembly Of The Product
Check that the product is in the correct position and securely clamped in the machine. Important! Safe clamping of the product in the machine must be ensured! 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 29: Maintenance
For maintenance intervals with two or more specifications, the specification that applies first is valid. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 30: Cleaning The Clamping Surface
The clamping force is no longer sufficient if the test shaft can be pulled out of the product easily using two fingers. In this case, send the product to SCHUNK for inspection. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 31: Lubricating The Actuating Thread
Clean the actuating thread and check the thread flanks for damage. Lubricate the actuating thread. Turn the clamping sleeve counterclockwise until it reaches the stop, and tighten. Check the clamping force } 7.2.3 [/ 30]. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 32: Troubleshooting
SCHUNK for inspection If you have any questions regarding troubleshooting, our technical after-sales service is available during our business hours: Service telephone: +49-7133-103-2956 service.toolholder@de.schunk.com 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 33: Disassembly
Remove the product. If necessary, remove tool [/ 25]. } 5.3 NOTE: To avoid damage, only place the product on a clean and soft surface. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 34: Storage
Only store the product in dry rooms. Protect the product from major temperature fluctuations. Comply with the storage temperature specified in the technical data. Store the product in a suitable transport container. 01.00 | SINO R | Assembly and operating manual | en | 1561539... -
Page 35: Disposal
Disposal 11 Disposal Follow local regulations on dispatching product components for recycling or proper disposal. Alternatively, you can return the product to SCHUNK for correct disposal. 01.00 | SINO R | Assembly and operating manual | en | 1561539... - Page 36 SCHUNK SE & Co. KG Toolholding and Workholding | Gripping Technology | Automation Technology Bahnhofstr. 106 – 134 D-74348 Lauffen/Neckar Tel. +49-7133-103-0 info@de.schunk.com schunk.com Folgen Sie uns I Follow us Wir drucken nachhaltig I We print sustainable...
